5. Set the hard disk drive in the carrier at an angle. Carefully separate the lower hard disk drive carrier
rails
, and then lower the drive between them as shown in the following figure.
Release the rails to lock the lower drive in place.

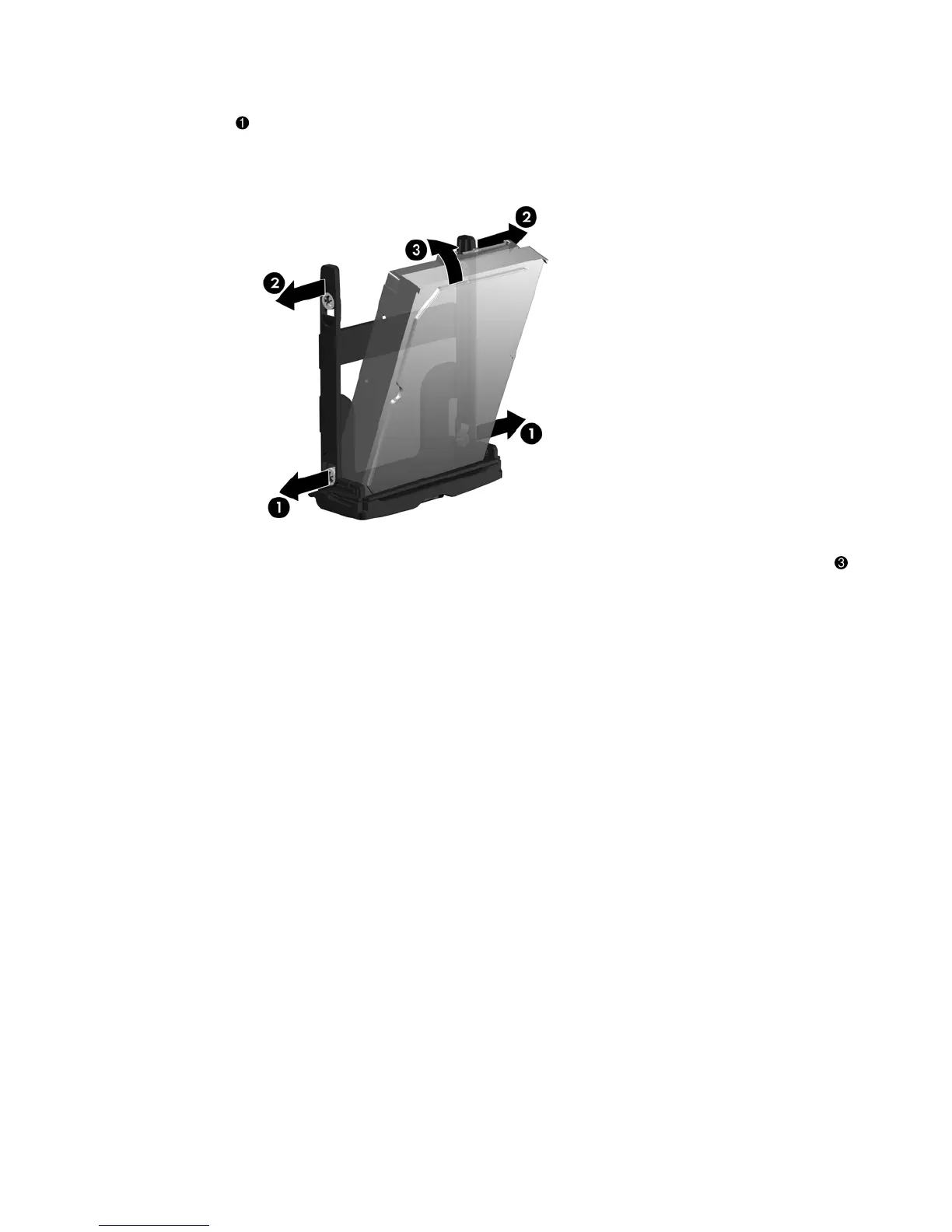

Figure 5-39 Installing the drive in the carrier
6. Carefully separate the upper hard disk drive carrier rails
2
, and then rotate the drive upright as
shown above.
Release the rails to lock the upper drive in place.
ENWW Removing and installing components 105
