5. Connect the power and data
2
cables to the drive as shown in the following figure.

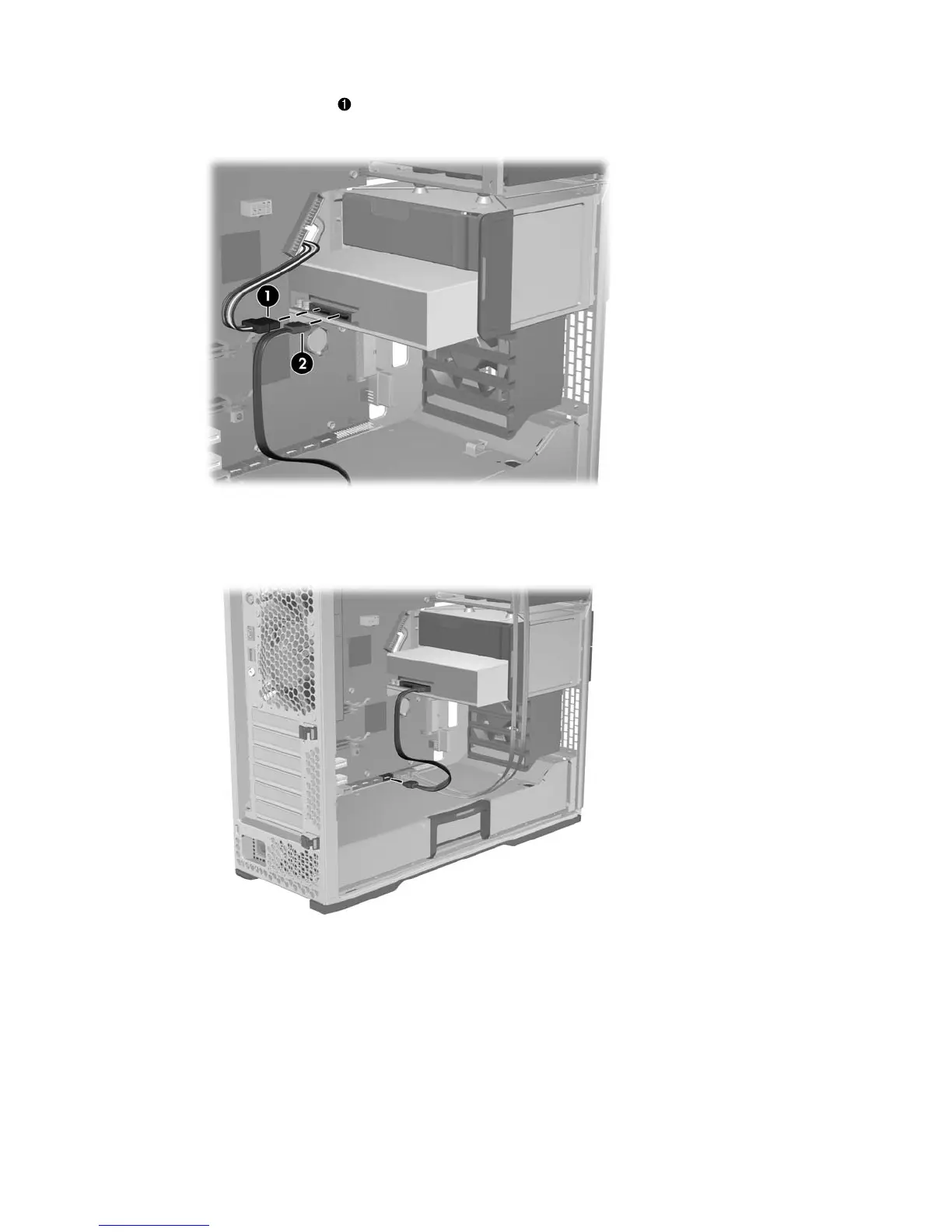

Figure 5-25 Connecting power and data cables
6. Connect the optical disk drive data cable to the next available SATA port on the system board as
shown in the following figure.
Figure 5-26 Connecting the drive data cable to the system board
ENWW Removing and installing components 95
