8. Lift and hold the drive release latch at the green touch point while sliding the bracket into the
optical bay as shown in the following figure
2
. When the front of the bracket is near its final position,
release the latch, but continue to slide the bracket inward until the latch closes and engages the
bracket.

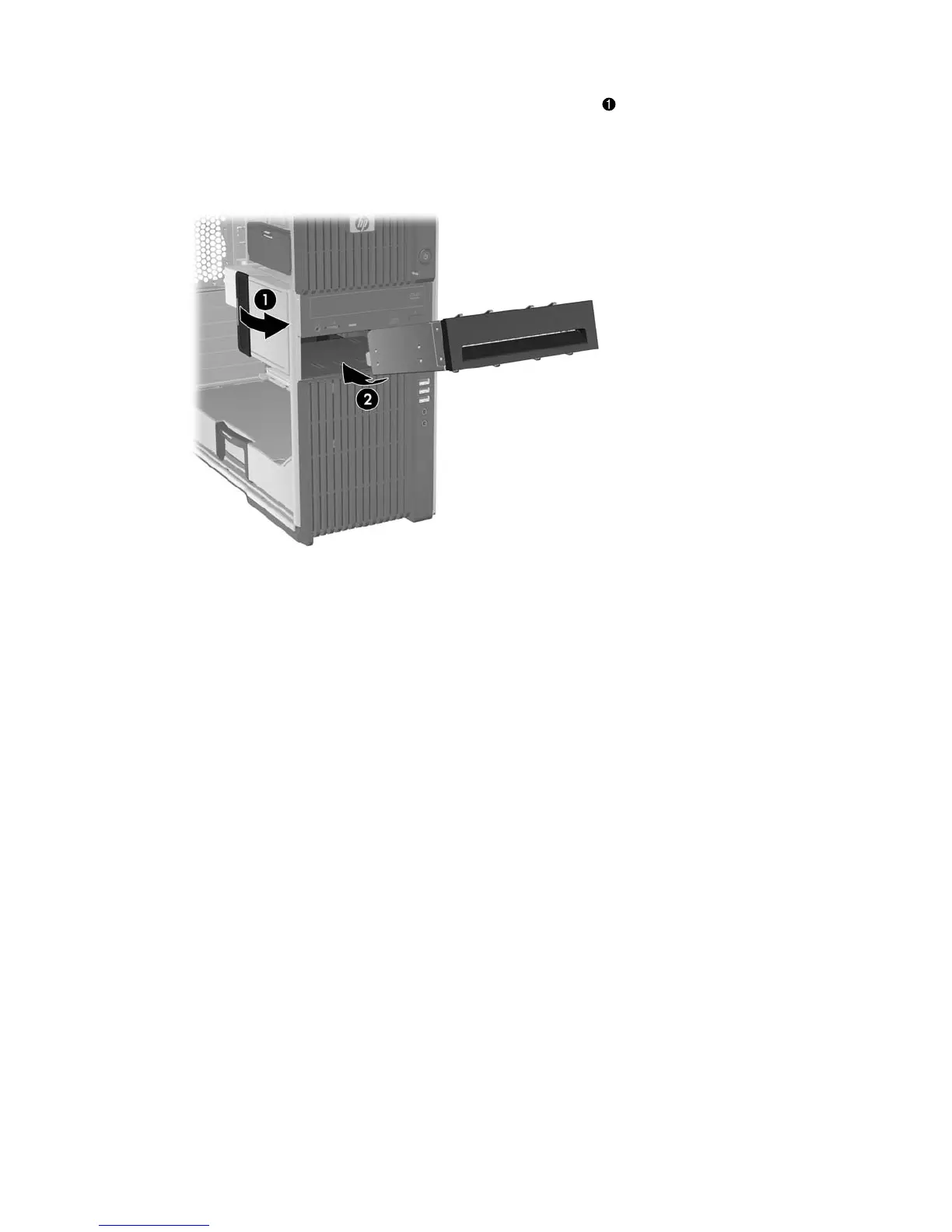

Figure 5-64 Installing the bracket in the optical bay
Repeat the steps above to install a second drive.
118 Chapter 5 Replacing components ENWW
