4. Remove the rear system fan assembly (see Removing the rear system fan assembly
on page 122).
5. Push gently outward on the DIMM socket levers as shown in the following figure.

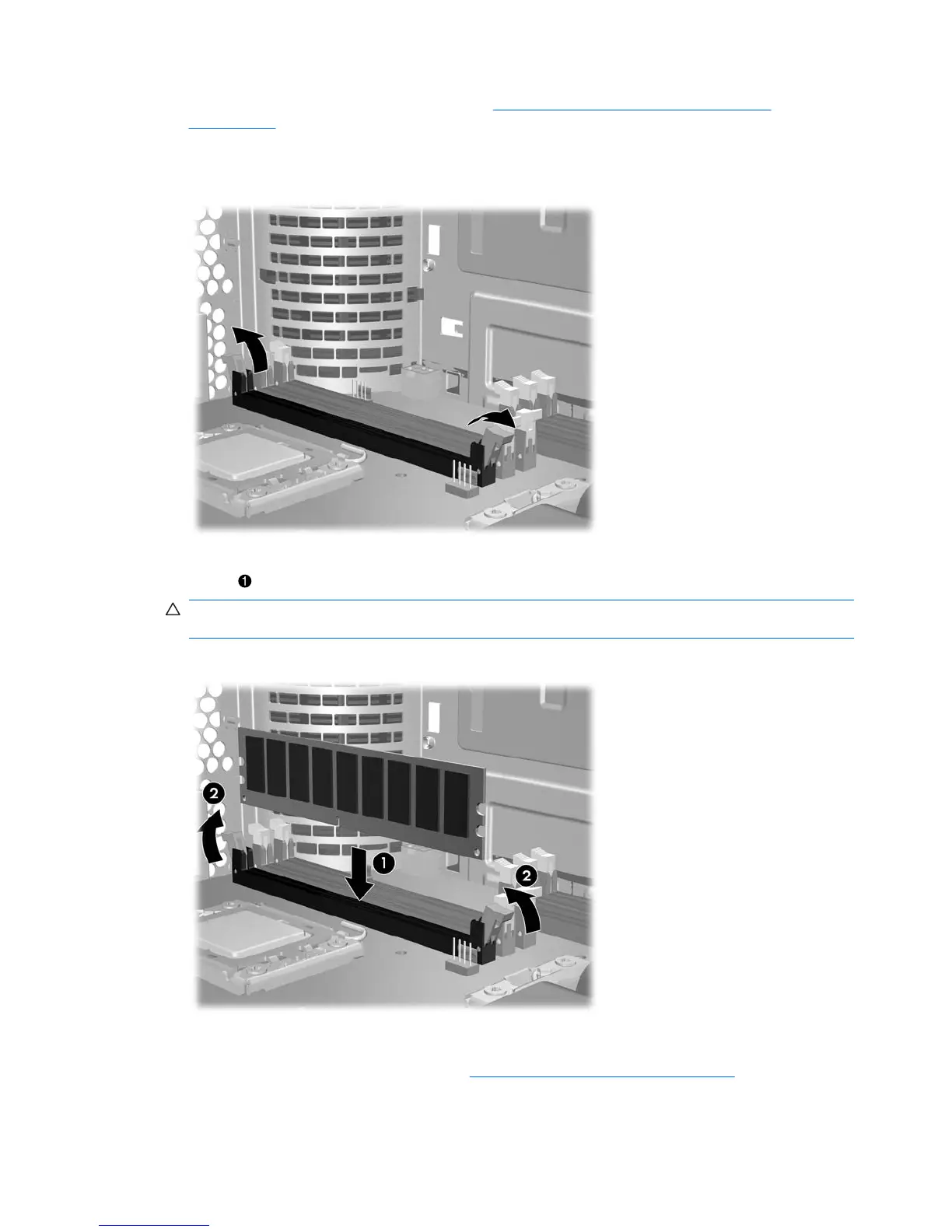

Figure 5-73 Opening DIMM socket levers
6. Align the DIMM connector key with the DIMM socket key, and then seat the DIMM firmly in the
socket
as shown in the following figure.
CAUTION: DIMMs and their sockets are keyed for proper installation. To prevent socket or DIMM
damage, align these guides properly when installing DIMMs.
Figure 5-74 Seating the DIMM
7. Secure the socket levers
2
.
8. Reinstall the memory fan assembly (see
Installing the memory fan on page 124).
