For more information, see PCIe expansion slot definitions.

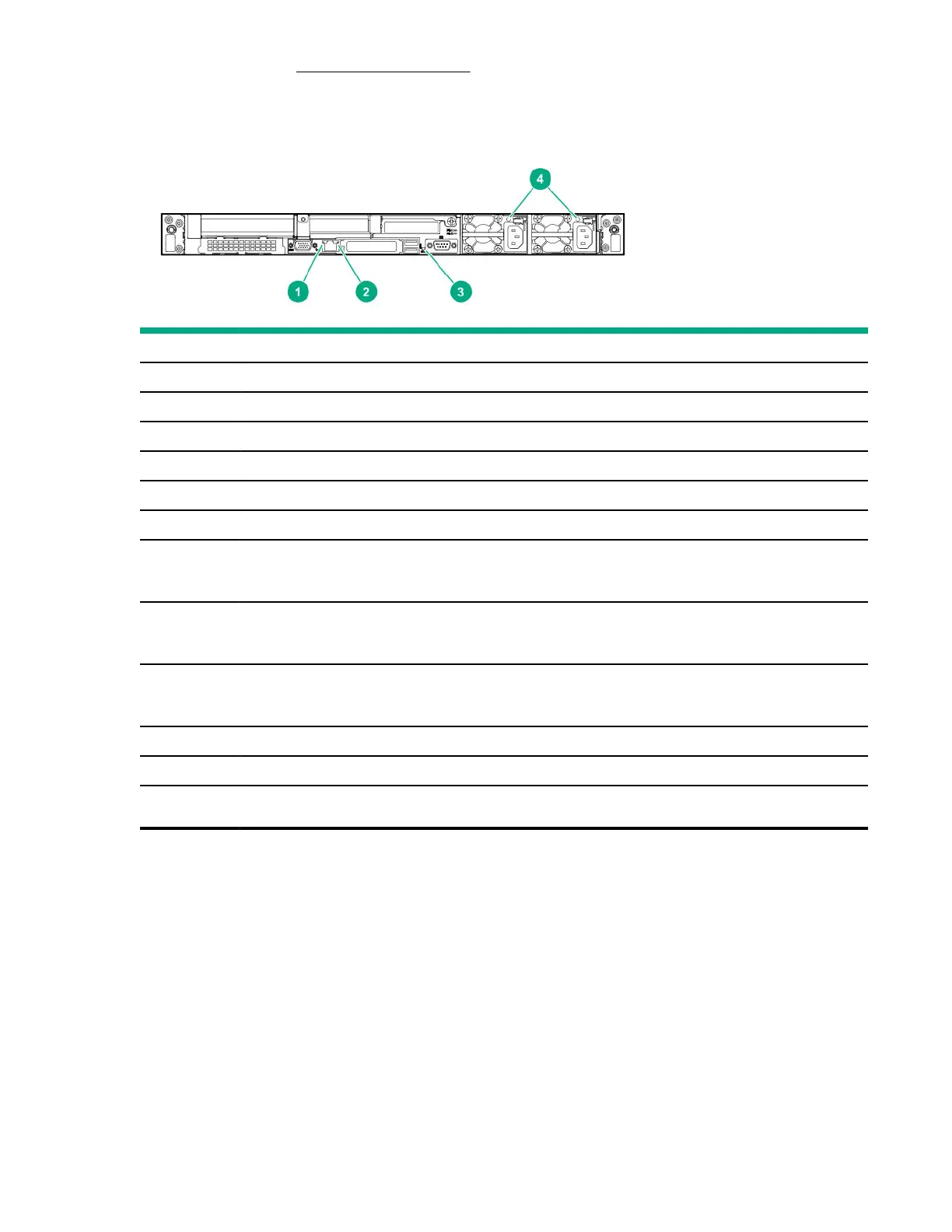

Rear panel LEDs
Item LED Status Definition
1 NIC link Green Network link
O No network link
2 NIC status Solid Green Linked to network
Flashing green Network active
O No network activity
3 UID Solid blue Activated
Flashing blue
1 flash per sec = Remote management or
firmware upgrade in progress
4 flashes per sec = iLO manual reboot
sequence initiated
8 flashes per sec = iLO manual reboot
sequence in progress
O Deactivated
4 Power supply Solid green Normal
O
System is o or power supply has failed.
12 Component identification
