8. Remove the riser blank.
9. Install the SSD module on the M.2 SSD enablement board:

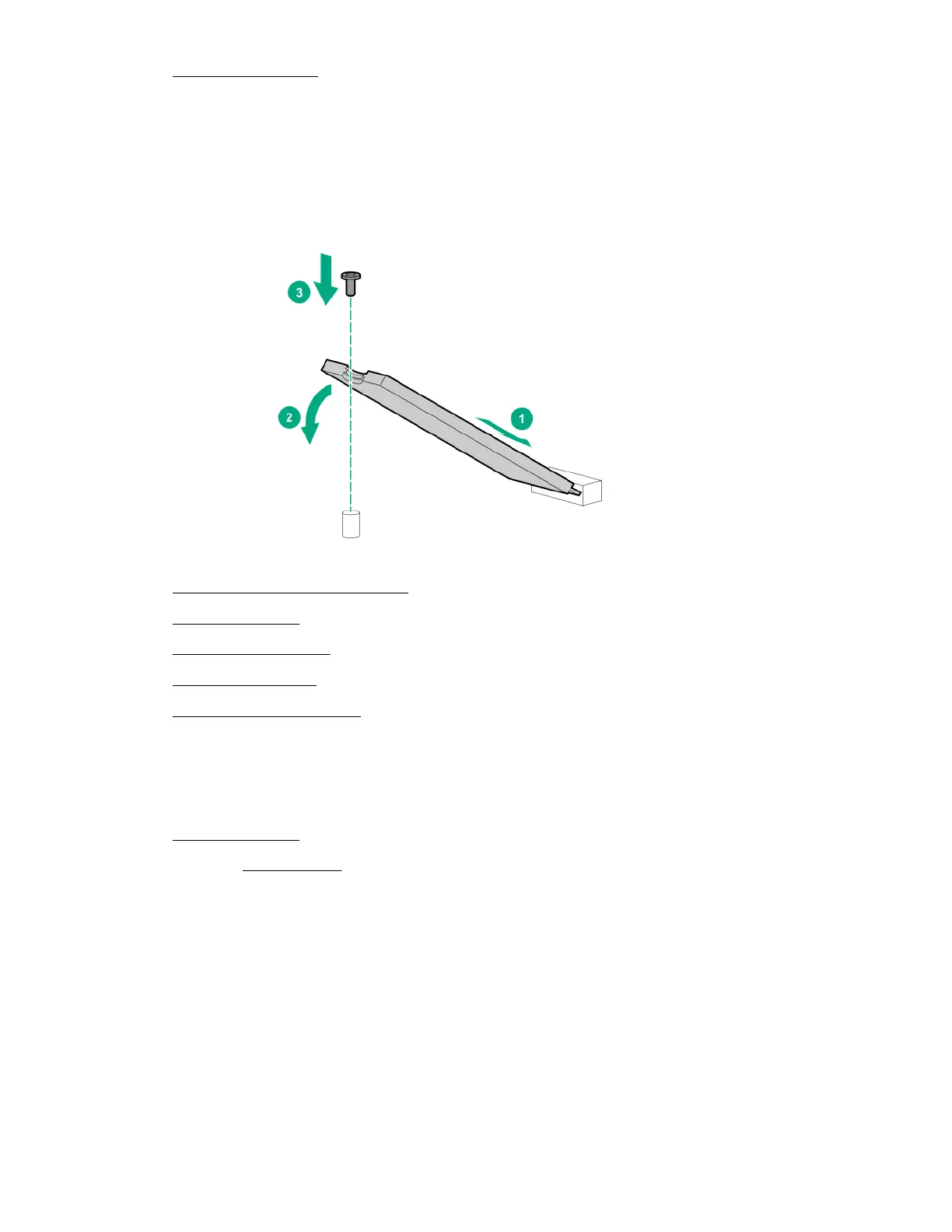

a. Insert the SSD module into the SSD slot at a 45 degree angle, and then gently press it down against the M.2 SSD
Enablement board.
b. Secure the SSD module to the M.2 SSD enablement board with a screw.
c. To install a second SSD module, repeat the process.
10.
Install the M.2 SSD enablement board.
11.
Install the riser cage.
12.
Connect the SATA cables.
13.
Install the access panel.
14.
Install the server into the rack.
15.
Connect all peripheral cables to the server.
16.
Connect each power cord to the server.
17.
Connect each power cord to the power source.
18.
Power up the server.
19. If removed, install the bezel.
The installation is complete.
ODD options
Installing the ODD in LFF
Prerequisites
Before you perform this procedure, make sure that you have a T-10 Torx screwdriver available.
