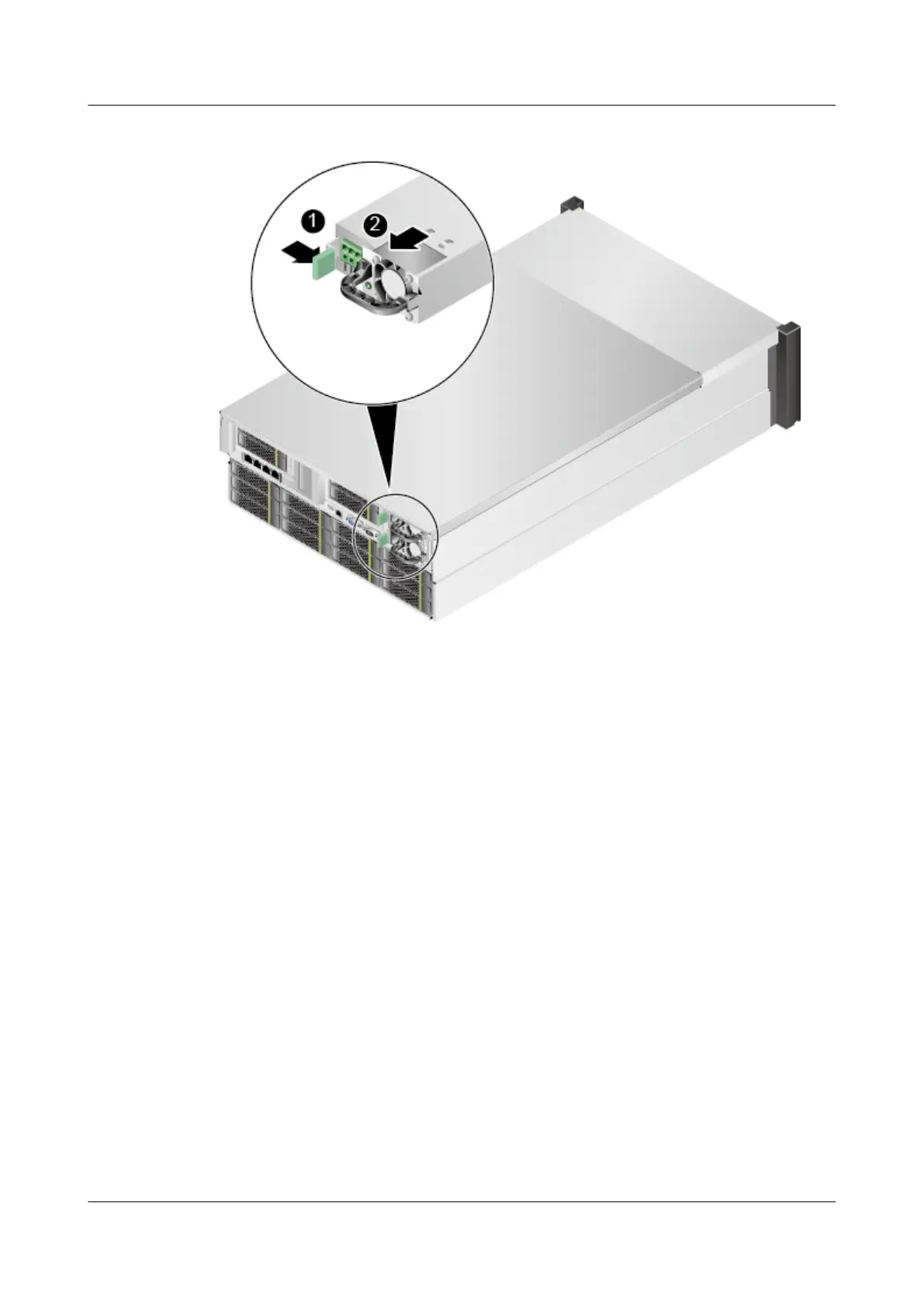

Figure 7-17 Removing a PSU
Step 5 Remove the PSU from the slot. See step (2) in Figure 7-17.
----End
7.10 Installing a PSU
7.10.1 Installing an AC PSU
Install an AC power supply unit (PSU) to replace the original one.
An AC PSU needs to be added to improve reliability when only one AC PSU is configured
for the 5288 V3.
Procedure
Step 1 Wear an ESD wrist strap. For details, see 1 Safety Instructions.
Step 2 Remove the PSU to be replaced. For details, see 7.9.1 Removing an AC PSU.
Step 3 Take the spare AC PSU out of its ESD bag.
Step 4 Push the spare AC PSU along the guide rails into a slot until the PSU clicks into place.
The PSU latch snaps in so that the PSU does not move. See Figure 7-18.
5288 V3 Server
User Guide
7 Replacing Parts
Issue 26 (2018-11-19) Copyright © Huawei Technologies Co., Ltd. 134
