l If the PSU has a plastic clip, perform the following steps to connect the power cable:
a. Open the plastic clip and place the power cable in the plastic clip. See step (1) in
Figure 7-20. Then close the plastic clip. See step (2) in Figure 7-20.

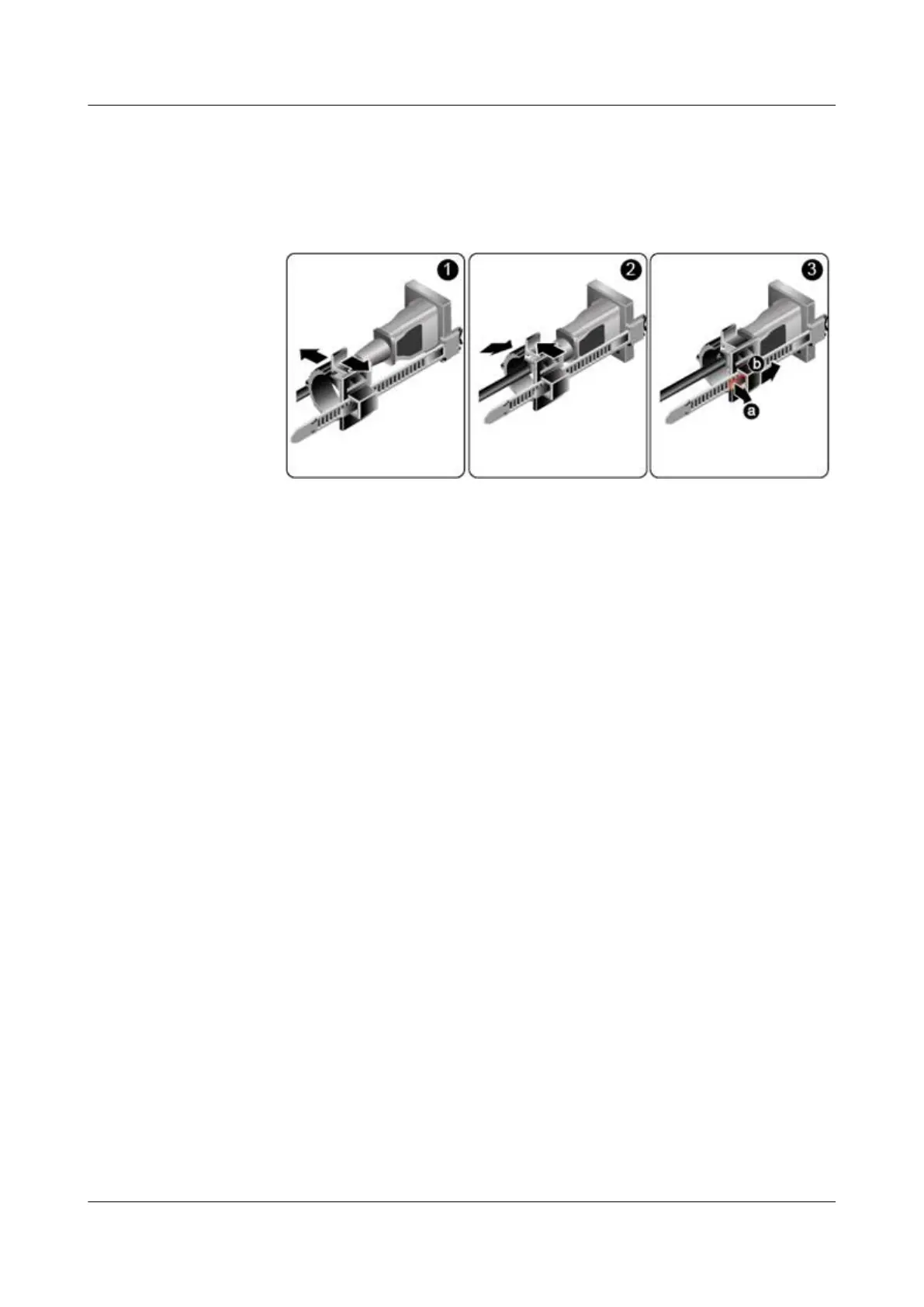

Figure 7-20 Connecting a power cable (secured with the PSU using a plastic clip)
b. Open the lock of the plastic clip. See a of step (3) in Figure3 Connecting a power
cable (secured with the PSU using a plastic clip). Slide the plastic clip towards
the PSU socket to ensure that the plastic clip is close to the connector of the power
cable. See b of step (3) in Figure3 Connecting a power cable (secured with the
PSU using a plastic clip).
----End
7.10.2 Installing a DC PSU
Install a DC power supply unit (PSU) to replace the original one.
A DC PSU needs to be added to improve reliability when the 5288 V3 is configured with only
one DC PSU.
Procedure
Step 1 Wear an ESD wrist strap. For details, see 1 Safety Instructions.
Step 2 Remove the PSU to be replaced. For details, see 7.9.2 Removing a DC PSU.
Step 3 Take the spare DC PSU out of its ESD bag.
Step 4 Push the spare DC PSU along the guide rails into a slot (for example, slot 1) until you hear a
sound.
The PSU latch snaps in so that the PSU does not move. See Figure 7-21.
5288 V3 Server
User Guide
7 Replacing Parts
Issue 26 (2018-11-19) Copyright © Huawei Technologies Co., Ltd. 136
