Step 4 Remove all external cables, such as power cables and network cables.
Step 5 Remove the RH1288 V3 and place the removed RH1288 V3 on the ESD desktop. For details,
see 3.6 Removing the Server.
Step 6 Remove the chassis cover. For details, see 7.11 Removing the Chassis Cover.
Step 7 Loosen the two screws. See step (1) in Figure 7-104.

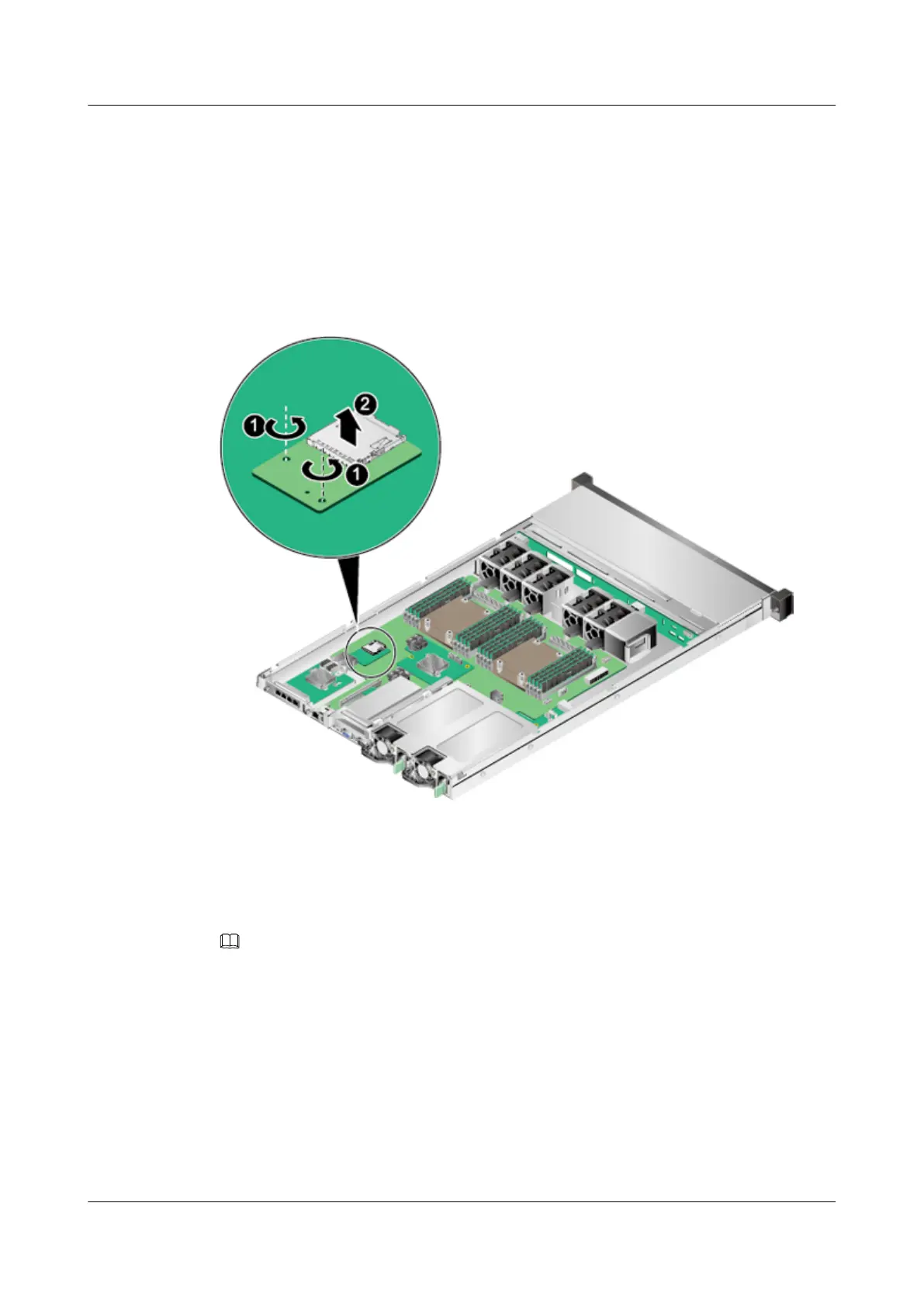

Figure 7-104 Removing an SD card board
Step 8 Lift the SD card board till its connector is disconnected from the mainboard. See step (2) in
Figure 7-104.
Step 9 Remove the SD card from the SD card board. For details, see 7.47 Removing an SD Card.
NOTE
SD card 1 is above the SD card board, and SD card 2 is below the SD card board.
Step 10 Place the removed SD card board in an ESD bag.
----End
7.50 Installing an SD Card Board
Install an SD card board to replace the original one.
5288 V3 Server
User Guide
7 Replacing Parts
