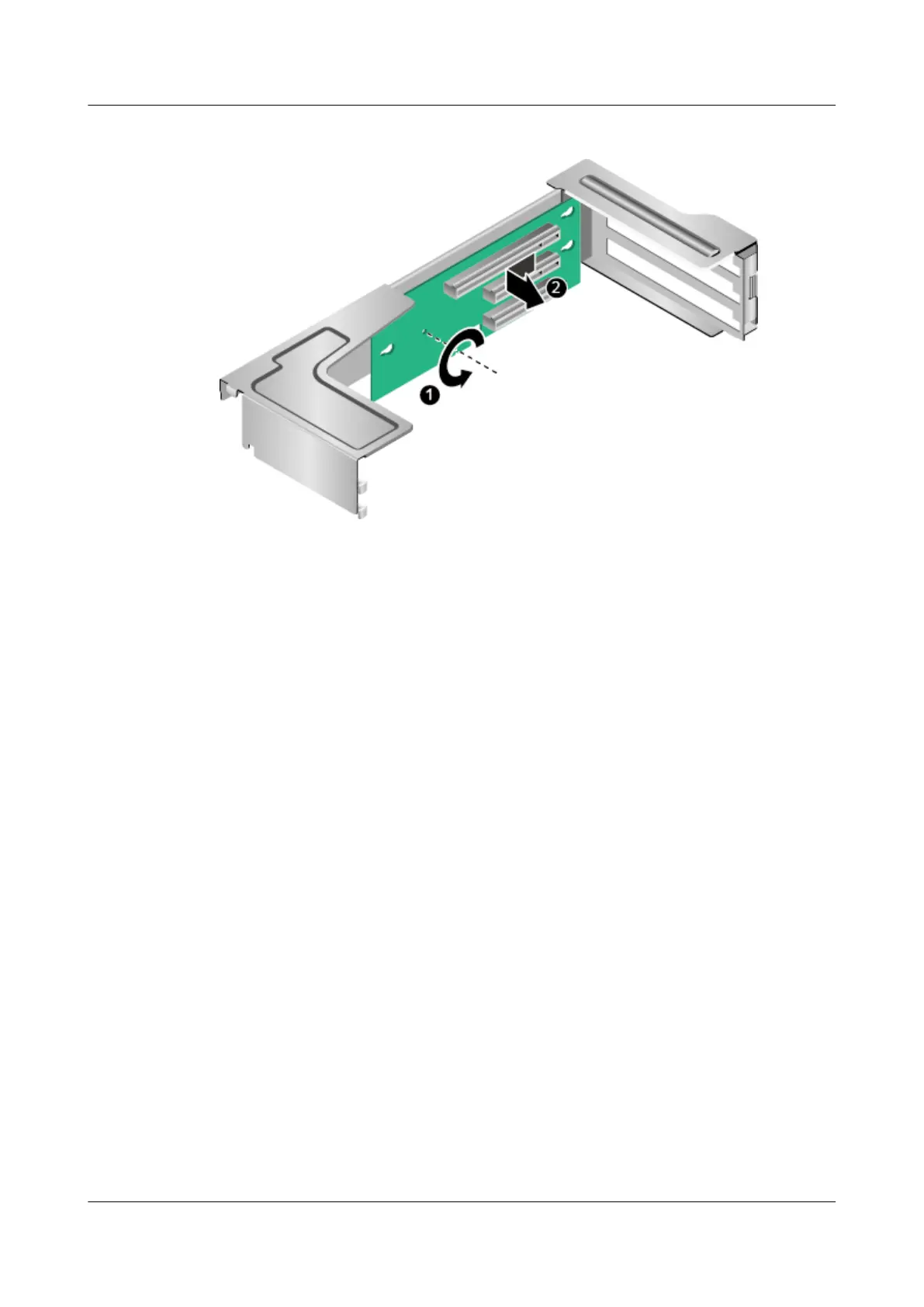

Figure 7-41 Removing a riser card
Step 10 Pull the riser card in the arrow direction to remove it. See step (2) in Figure 7-41.
Step 11 Place the removed riser card in the ESD bag.
----End
7.20 Installing a Riser Card
Install a riser card to replace the original one or add new PCIe cards.
Procedure
Step 1 Wear an ESD wrist strap. For details, see 1 Safety Instructions.
Step 2 Remove the riser card to be replaced. For details, see 7.19 Removing the Riser Card.
Step 3 Take the spare riser card out of its ESD bag.
Step 4 Push the riser card in the arrow direction until it does not move. See step (1) in Figure 7-42.
5288 V3 Server
User Guide
7 Replacing Parts
Issue 26 (2018-11-19) Copyright © Huawei Technologies Co., Ltd. 156
