Huawei 5288 V3 V100R003 - Installing a Front Mounting Ear Plate

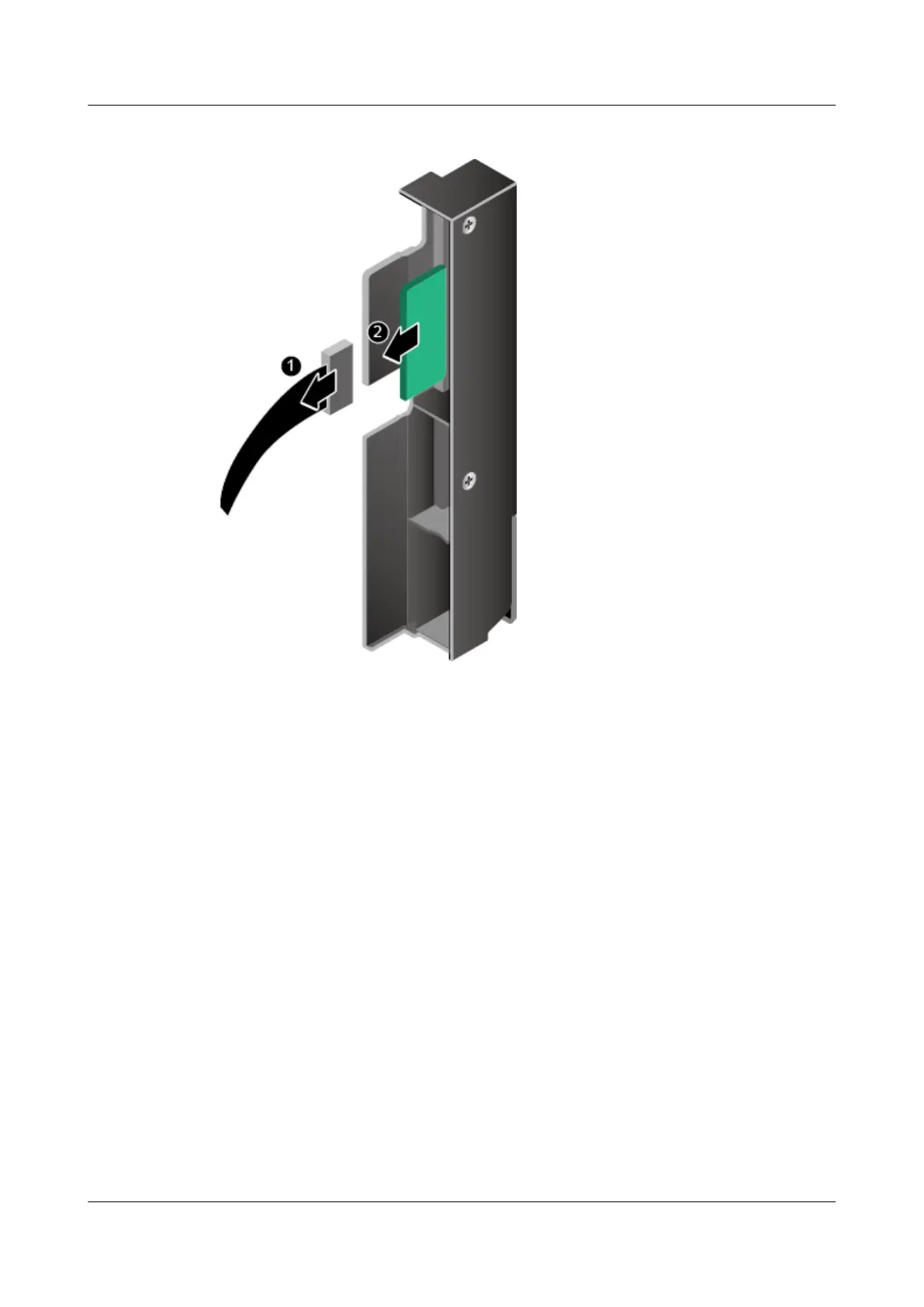

Figure 7-121 Removing a front mounting ear plate
Step 10 Place the removed front mounting ear plate in the ESD bag.
----End
7.58 Installing a Front Mounting Ear Plate
Install a front mounting ear plate to replace the original one.
Procedure
Step 1 Wear an ESD wrist strap. For details, see 1 Safety Instructions.
Step 2 Remove the front mounting ear plate to be replaced. For details, see 7.57 Removing a Front
Mounting Ear Plate.
Step 3 Take the spare front mounting ear plate out of its ESD bag.
Step 4 Connect the cable to the front mounting ear plate and install the front mounting ear plate in
the arrow direction. See step (1) in Figure 7-122.
5288 V3 Server
User Guide
7 Replacing Parts
Issue 26 (2018-11-19) Copyright © Huawei Technologies Co., Ltd. 237
