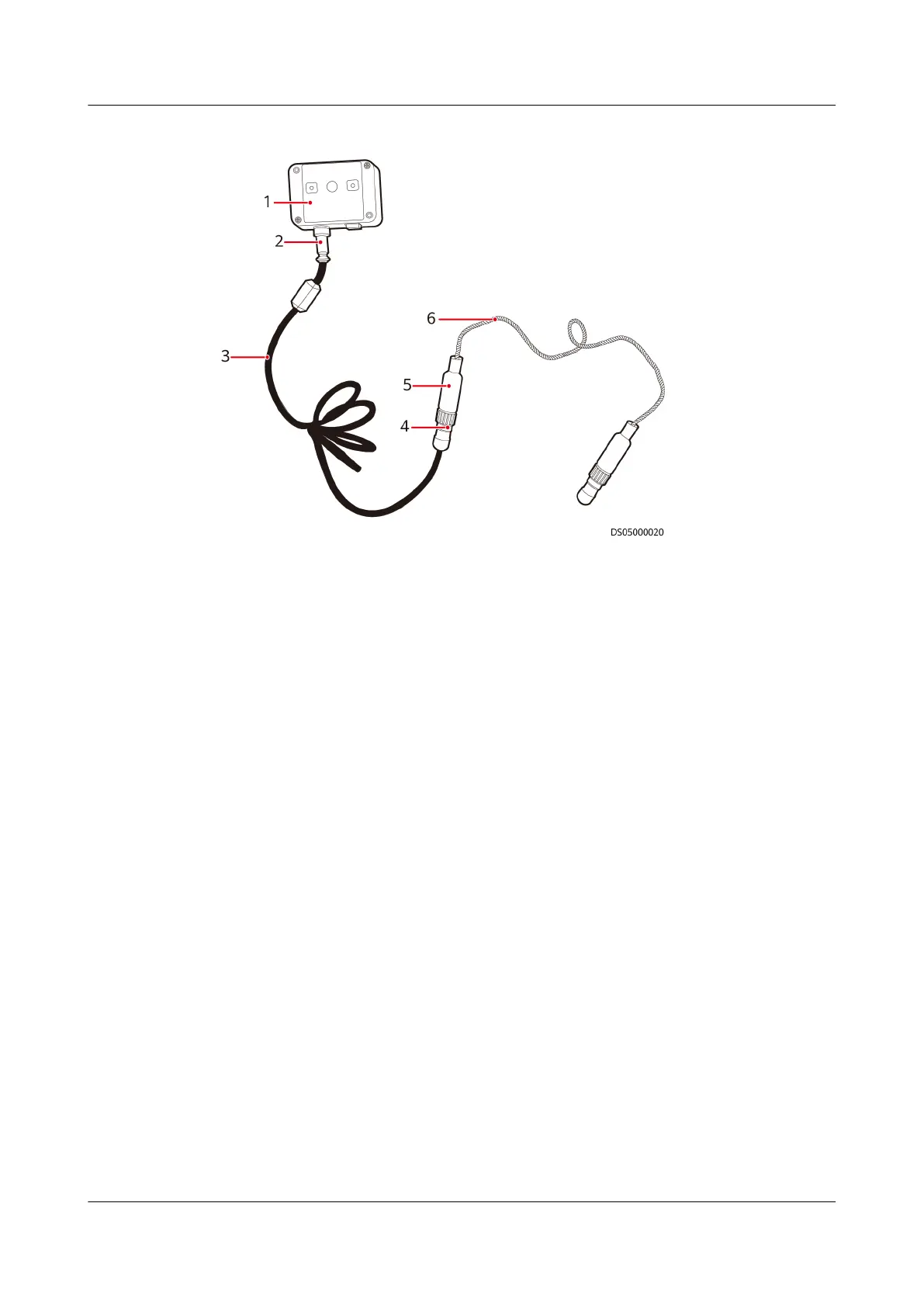

Figure 5-62 Water sensor components
(1) Water detector (2) Conversion cable end A,
connecting to the water detector
(3) Conversion cable
(4) Conversion cable end B,
connecting to water the
detection rope
(5) Water detection rope end A,
connecting to the conversion cable
(6) Water detection rope
Impact on the System
The water leakage of the data center cannot be sensed.
Preparations
● Material: water sensor
● Skill requirement: hardware installation engineers
Procedure
Step 1 Replace the water detector.
1. Remove the conversion cable at the conversion port for the water detector
and conversion cable.
2. Remove the communication cable from the water detector.
3. Connect a new water detector to the conversion cable.
4. Secure the new water detector.
FusionModule2000 Smart Modular Data Center
Maintenance Guide (Fusion Module Actuator) 5 Parts Replacement
Issue 01 (2020-12-25) Copyright © Huawei Technologies Co., Ltd. 112
