5.5 Common Maintenance Tasks
5.5.1 Operating a Hydraulic Circuit breaker (Inside the Smart
rPDU)
Hydraulic circuit breakers are important components of the smart rPDU.
Power-on Operation
Step 1 When the circuit breaker is OFF, press the button in the direction of the arrow to
set the circuit breaker to ON.

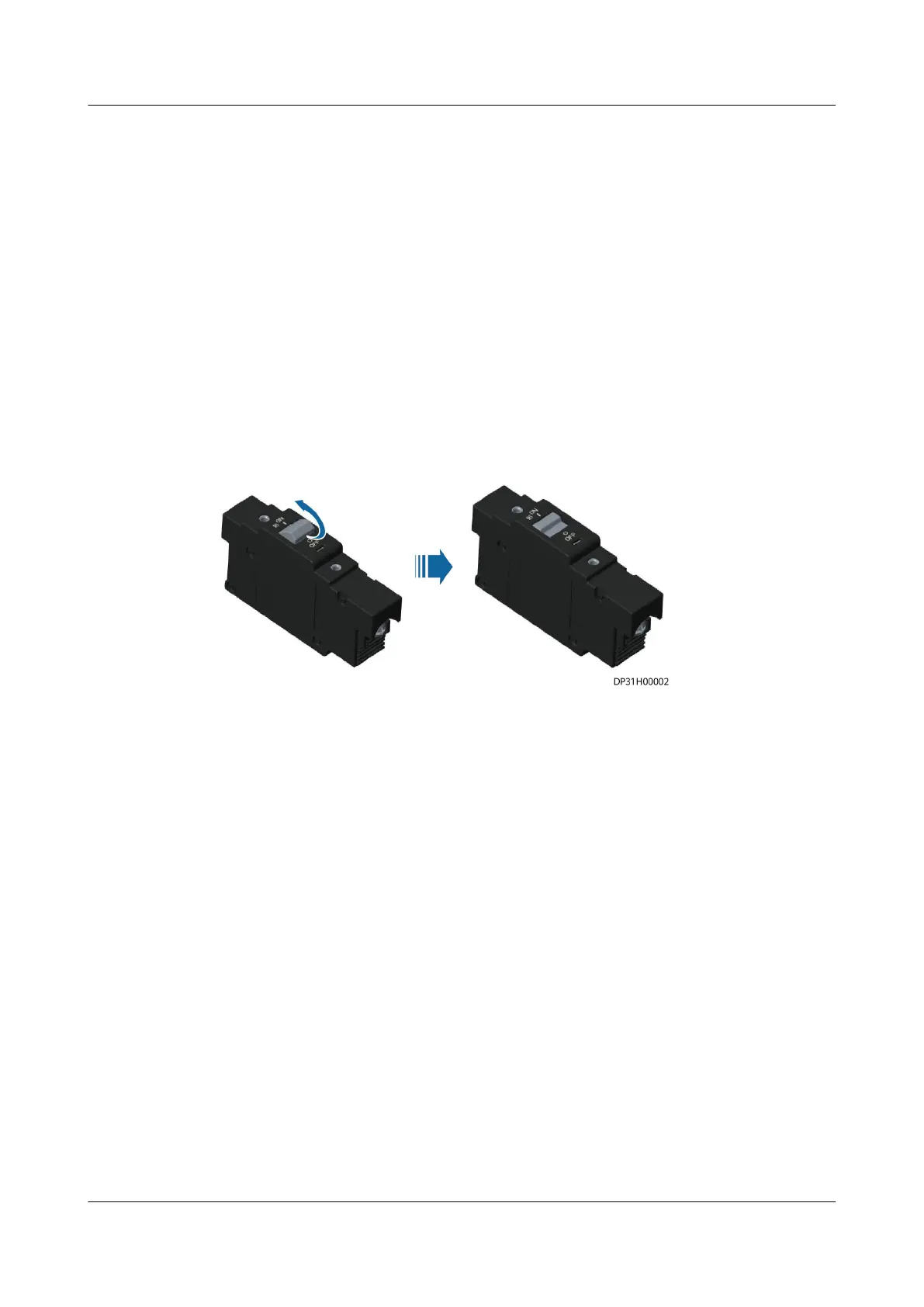

Figure 5-88 Power-on operation
----End
Power-o Operation
Step 1 When the circuit breaker is ON, use
at-head screwdriver to press the open hole
so that the circuit breaker is OFF.
FusionModule2000 Smart Modular Data Center
Maintenance Guide (Fusion Module Actuator) 5 Parts Replacement
Issue 01 (2020-12-25) Copyright © Huawei Technologies Co., Ltd. 133
