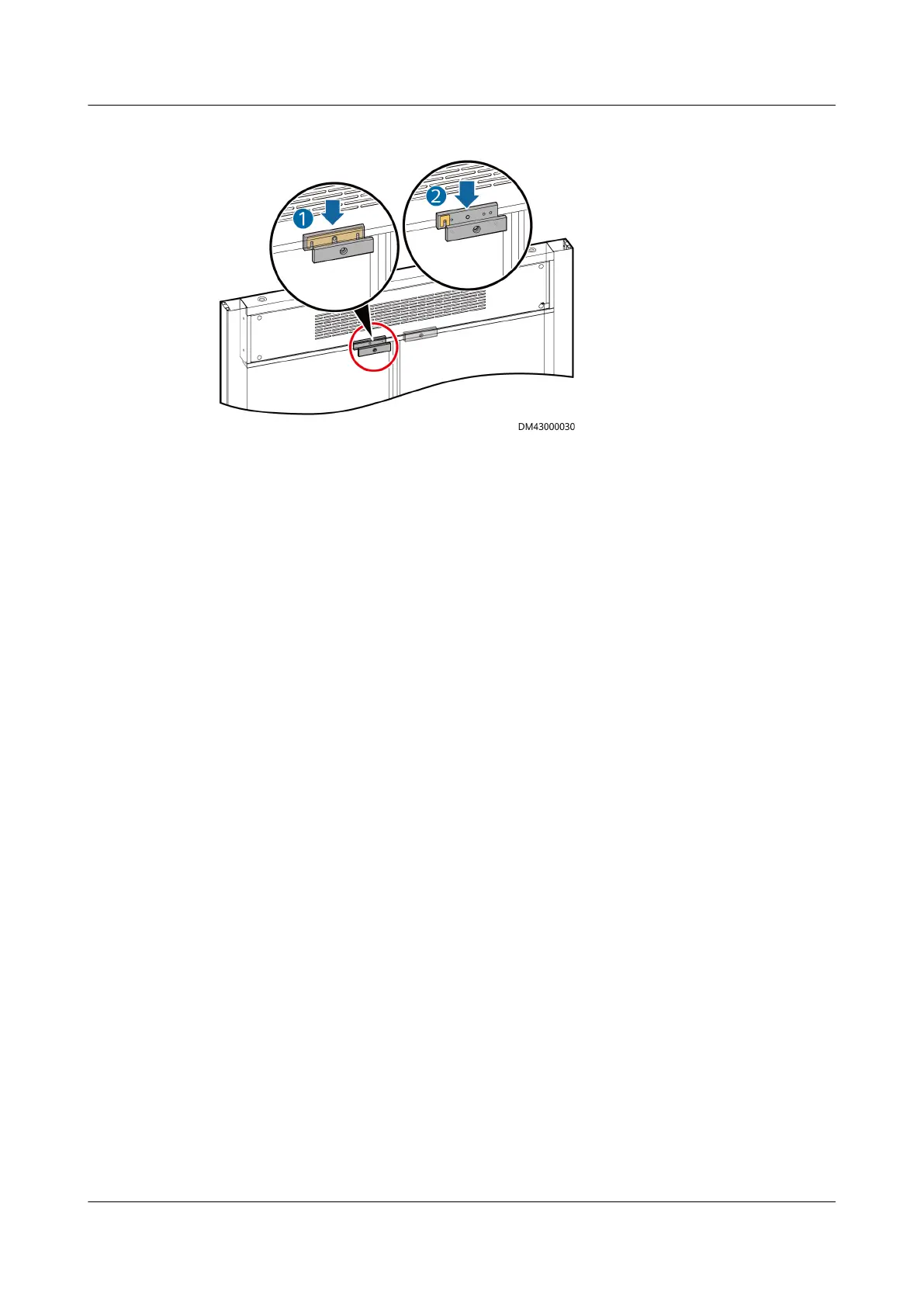

Figure 5-46 Adjusting the gap
----End
5.4.3.6 Replacing a Door Status Sensor
Impact on the System
The cabinet door status cannot be detected.
Preparations
● Tools: Phillips screwdriver, insulation tape
● Material: door status sensor
Procedure
Step 1 Remove the cover of the door status sensor manually.
Step 2 Remove the communications cable using a Phillips screwdriver and apply
insulation measures such as wrapping the cable with insulation tape to avoid
hazards.
Step 3 Remove the door status sensor from the rack top using the Phillips screwdriver, as
shown in Figure 5-47.
FusionModule2000 Smart Modular Data Center
Maintenance Guide (Fusion Module Actuator) 5 Parts Replacement
Issue 01 (2020-12-25) Copyright © Huawei Technologies Co., Ltd. 95
