Step 5 Connect the charging cable to the reserved pad.
----End
5.4.19 Replacing a PAD Power Connector
Context

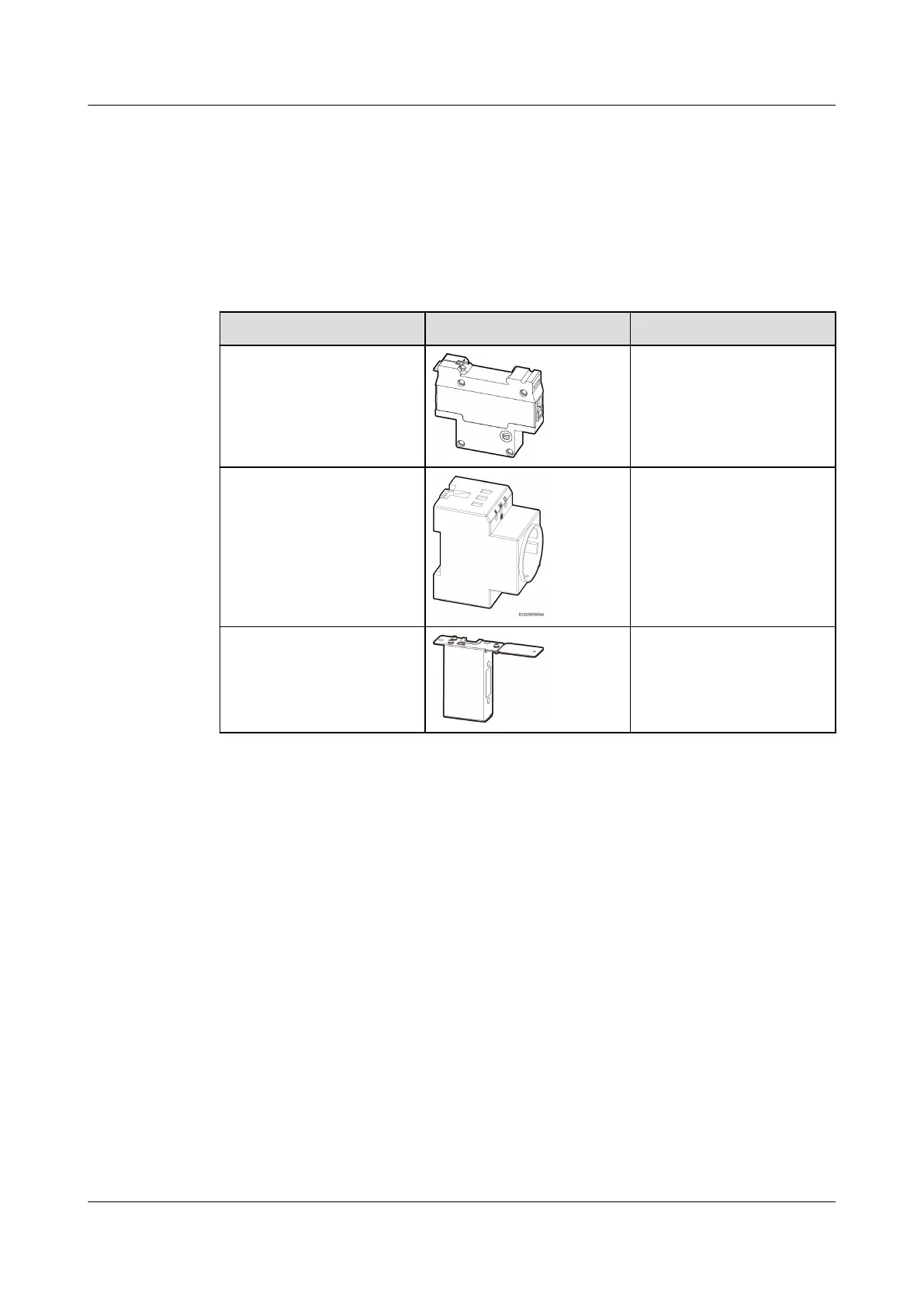

Item Appearance Remarks
PAD power connector The BOM number is
14190892.
PAD power connector The BOM number is
14190242.
PAD power connector
holder
Obtain it from the aisle
door accessories.
Impact on the System
The PAD cannot be charged.
Preparations
● Tool: Phillips screwdriver
● Materials: PAD power connector, PAD power connector holder
Procedure
Step 1 Turn o the upstream power switch for the PAD power connector.
Step 2 Remove the bae plate under the power connector.
Step 3 Remove the charging cable from the power connector.
Step 4 Remove the PAD power connector and its holder from the door box.
FusionModule2000 Smart Modular Data Center
Maintenance Guide (Fusion Module Actuator) 5 Parts Replacement
Issue 01 (2020-12-25) Copyright © Huawei Technologies Co., Ltd. 119
