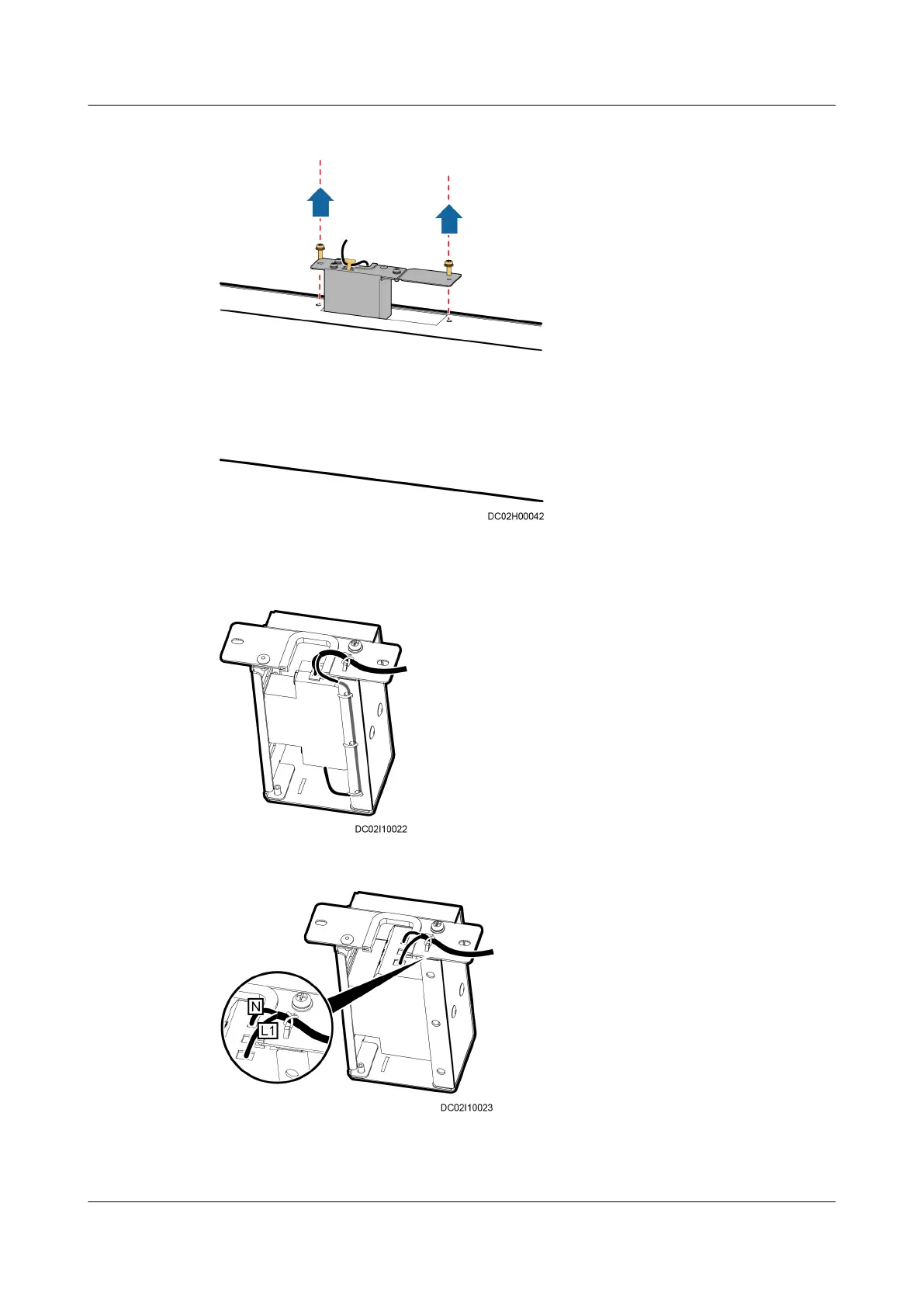

Figure 5-69 Removing the PAD power connector holder
Step 5 Disconnect cables from the power connector.
Figure 5-70 Disconnecting power connector cables (BOM number: 14190892)
Figure 5-71 Disconnecting power connector cables (BOM number: 14190242)
Step 6 Remove the PAD power connector from its holder.
1. Remove the holder cover by loosening M4x12 screw assemblies.
FusionModule2000 Smart Modular Data Center
Maintenance Guide (Fusion Module Actuator) 5 Parts Replacement
Issue 01 (2020-12-25) Copyright © Huawei Technologies Co., Ltd. 120
