5.4.23 Replacing an eLight Strip Light
Impact on the System
The eLight strip light is
o during replacement.
Preparations
● Tool: ESD gloves
● Material: eLight strip light
Procedure
Step 1 Remove three white rubber panels from the door frame.
Step 2 Remove the side covers from the posts.
Step 3 Cut o the cable tie that binds the strip light extension cable to the top of the
post.
Step 4 Pull the strip light out of the bottom of the left post.
Step 5 Disconnect the strip light terminal from the strip light extension cable of the door
post.
Step 6 Pull out the strip light from the fasteners.

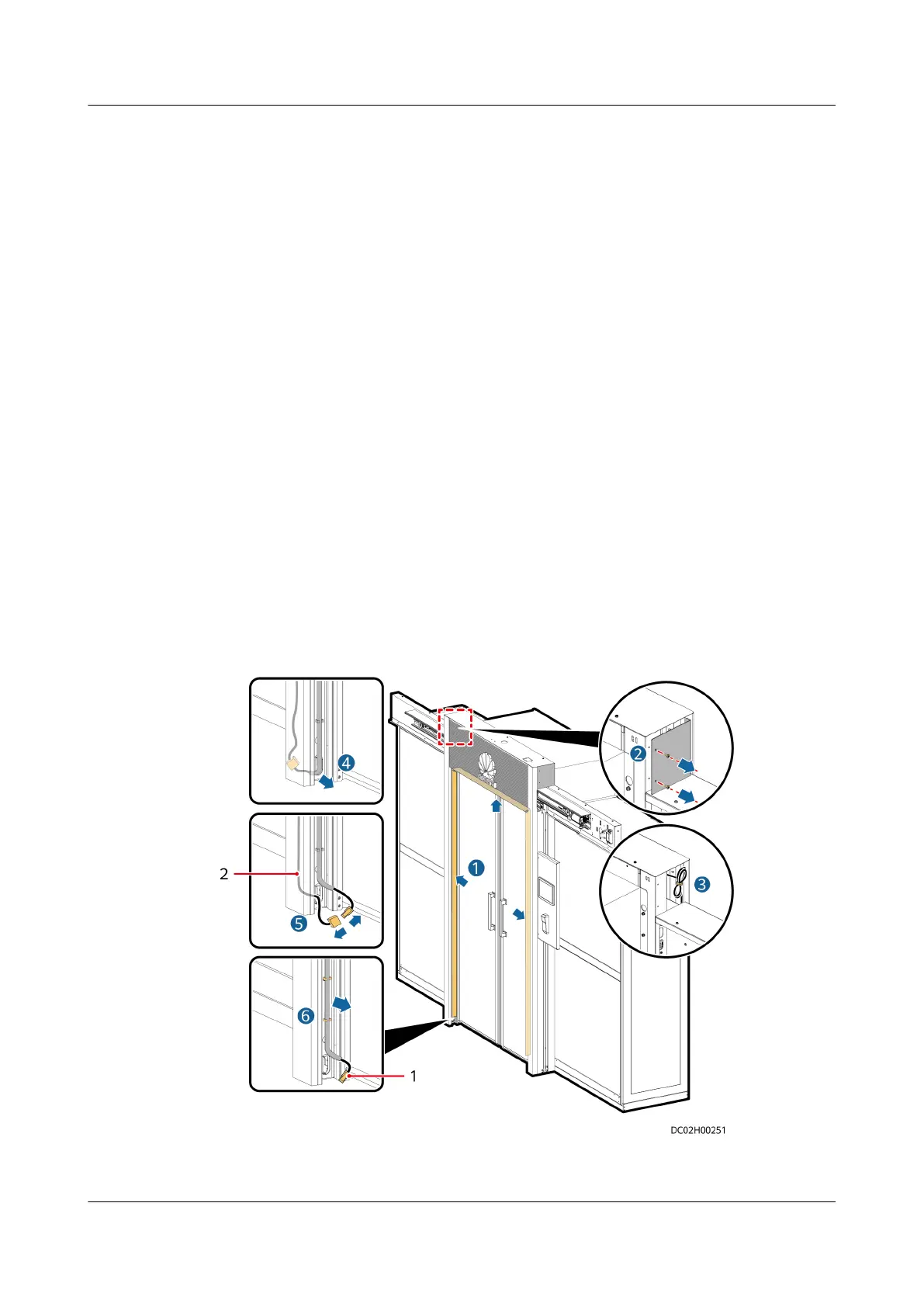

Figure 5-83 Removing a strip light
(1) Strip light extension cable
(2) Strip light extension cable
