After removing cables, wrap exposed terminals with insulation tape and do not
block cable labels. If cable labels are blocked, cables may be connected incorrectly.
Step 2 Remove the faulty IVS1800 from the cabinet.
Step 3 Carry the device to the cabinet. Ensure that the mounting ears at both sides of the
device are tightly attached to the mounting bars in front of the cabinet. Use one
hand to hold the device. Use the other hand to thread M6 screws through the
slotted holes on the mounting ears. Use a Phillips screwdriver to tighten the M6
screws on the mounting ears. Each mounting ear uses two M6 screws.

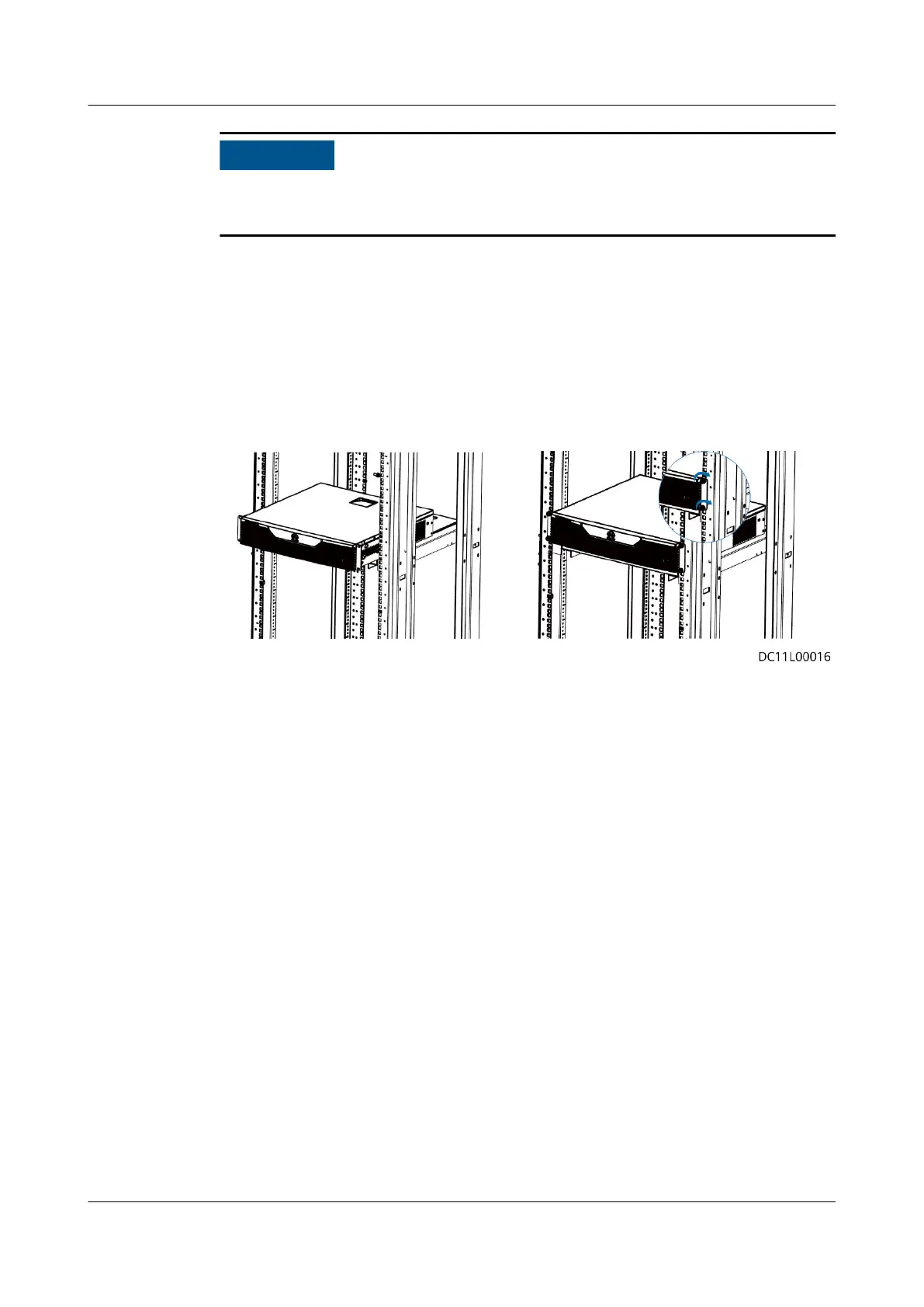

Figure 5-24 Installing a device
Step 4 Reconnect the cables to the new IVS1800.
Step 5 Turn on the power switch of the IVS1800.
Step 6 Commissioning the IVS1800. If the video recording function works properly after
commissioning, the IVS1800 is functional.
----End
5.4.2.7 Replacing a Hard Disk for the IVS1800
Prerequisites
● A hard disk needs to be replaced.
● Data in the hard disk has been backed up.
● A spare hard disk of the same model is available and functional.
● Before replacing a faulty disk, ensure that the power switch on the rear panel
is
o and disconnect the power cable to power o the device.
Context
Recommended tools and materials: Phillips screwdriver, ESD wrist strap (or ESD
gloves).
