Figure 5-38 Installing a sliding door magnetic lock
Step 6 Reconnect cables to the magnetic lock based on the labels.
Step 7 Verify that the sliding door magnetic lock can function properly.
----End
5.4.3.5 Replacing a Double-Door Magnetic Lock
Prerequisites
Before disconnecting cables from the double-door magnetic lock, label the cables
based on the corresponding ports.
Impact on the System
The door cannot be controlled by the magnetic lock.
Preparations
● Tools: Phillips screwdriver, rubber mallet
● Material: magnetic lock
Procedure

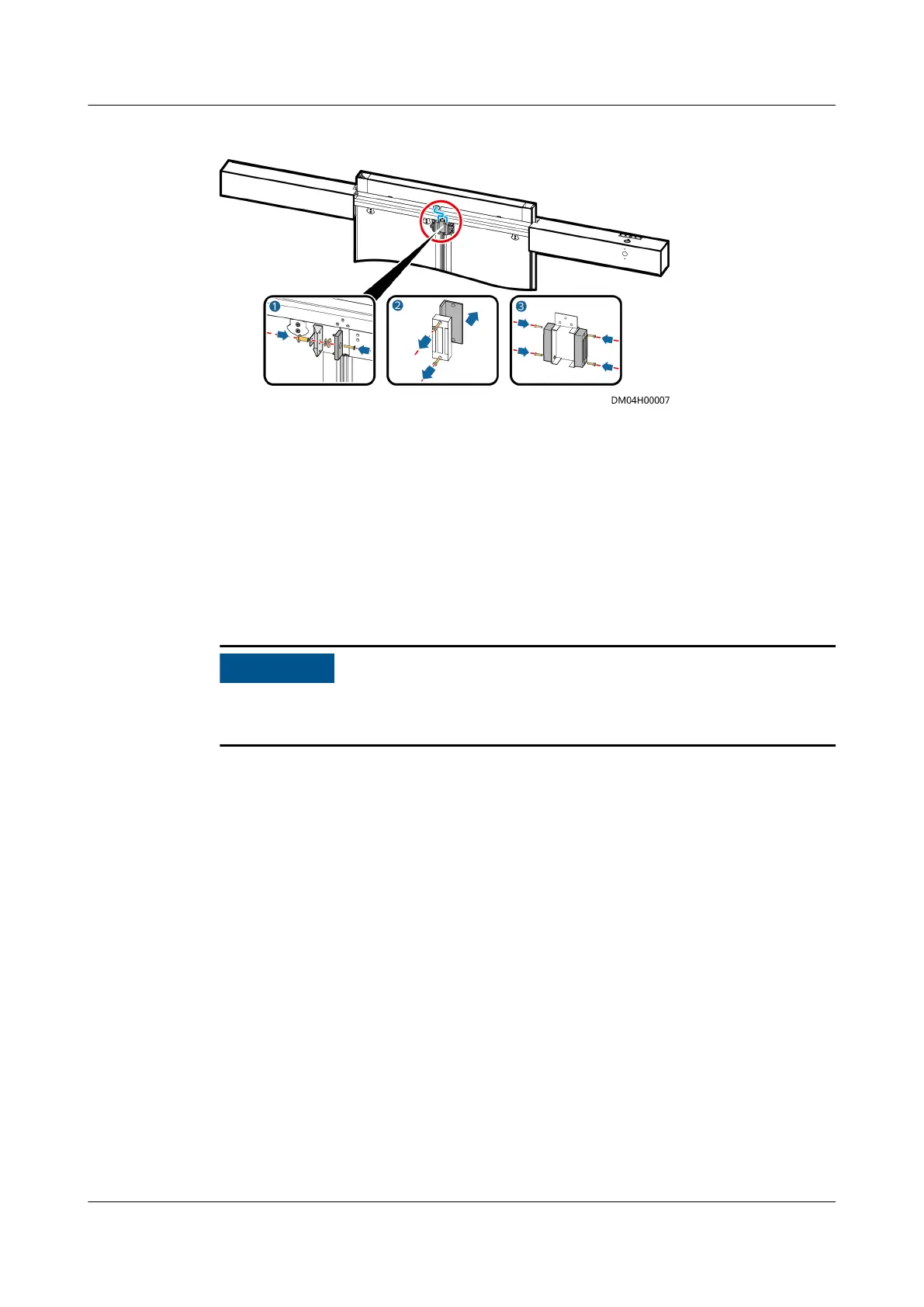

Step 1 Remove the mounting plate of the magnetic lock cover, as shown in Figure 5-39.
FusionModule2000 Smart Modular Data Center
Maintenance Guide (Fusion Module Actuator) 5 Parts Replacement
Issue 01 (2020-12-25) Copyright © Huawei Technologies Co., Ltd. 90
