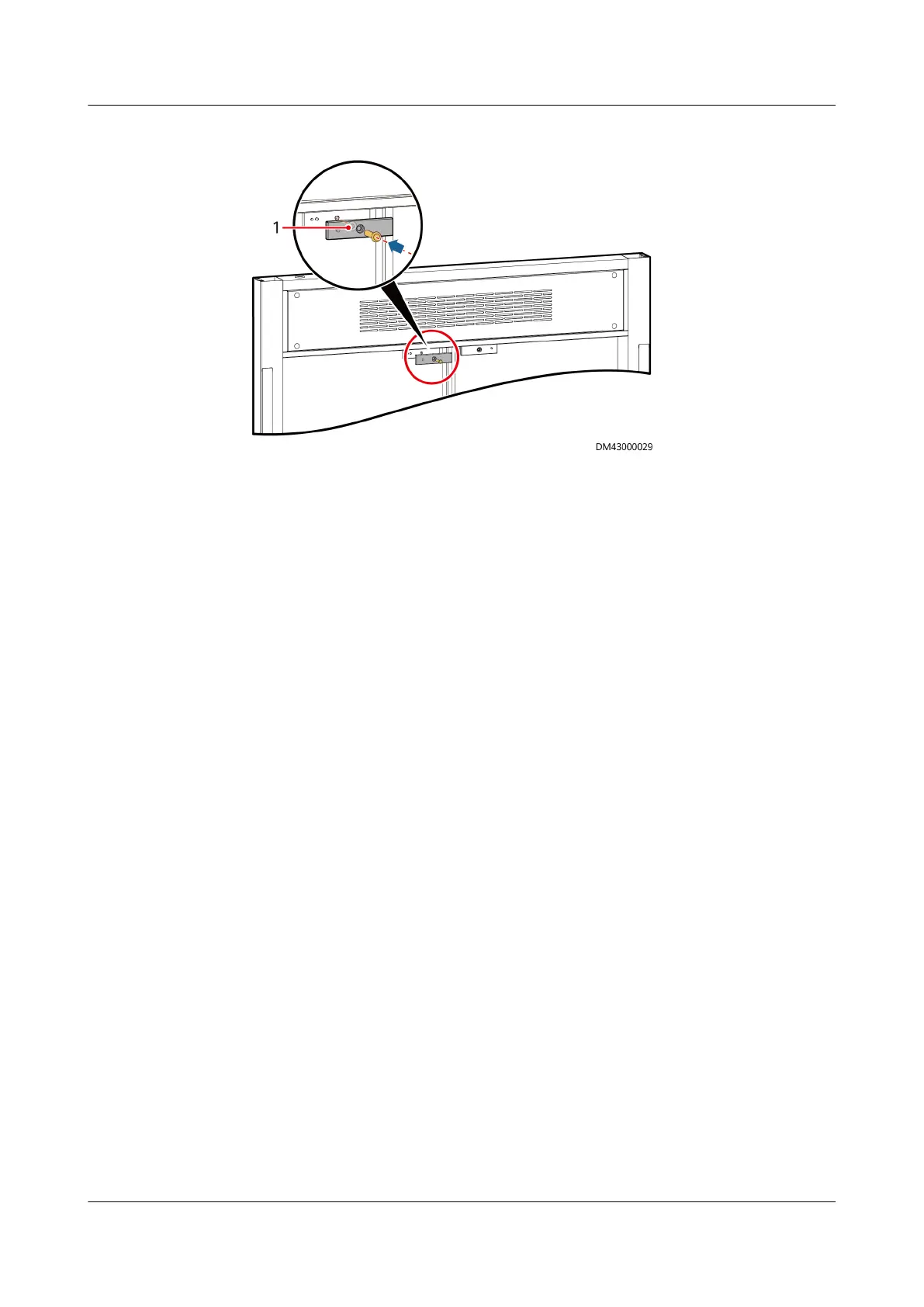

Figure 5-45 Installing a magnet
(1) White rubber washer
Step 7 (Optional) Adjust the magnet.
If the magnet does not work properly after power-on, check that:
1. The magnet provides magnetic force by attaching magnetizable iron parts to
it.
2. The double-door magnetic lock is aligned with the magnet face-to-face.
3. No gap exists between the double-door magnetic lock and the magnet.
If any of the preceding conditions is not met, troubleshoot the magnet as follows:
1. Check the circuit and rectify any circuit fault.
2. Adjust the magnet base and the door panel to align the magnetic lock with
the magnet face-to-face. Ensure that the deviation is minimum.
3. If a gap exists between the double-door magnetic lock and the magnet,
rectify the fault as shown by (1) in Figure 5-46.
4. If the magnet is not level, use a spacer shown by (2) in Figure 5-46 to adjust
the magnet levelness.
FusionModule2000 Smart Modular Data Center
Maintenance Guide (Fusion Module Actuator) 5 Parts Replacement
Issue 01 (2020-12-25) Copyright © Huawei Technologies Co., Ltd. 94
