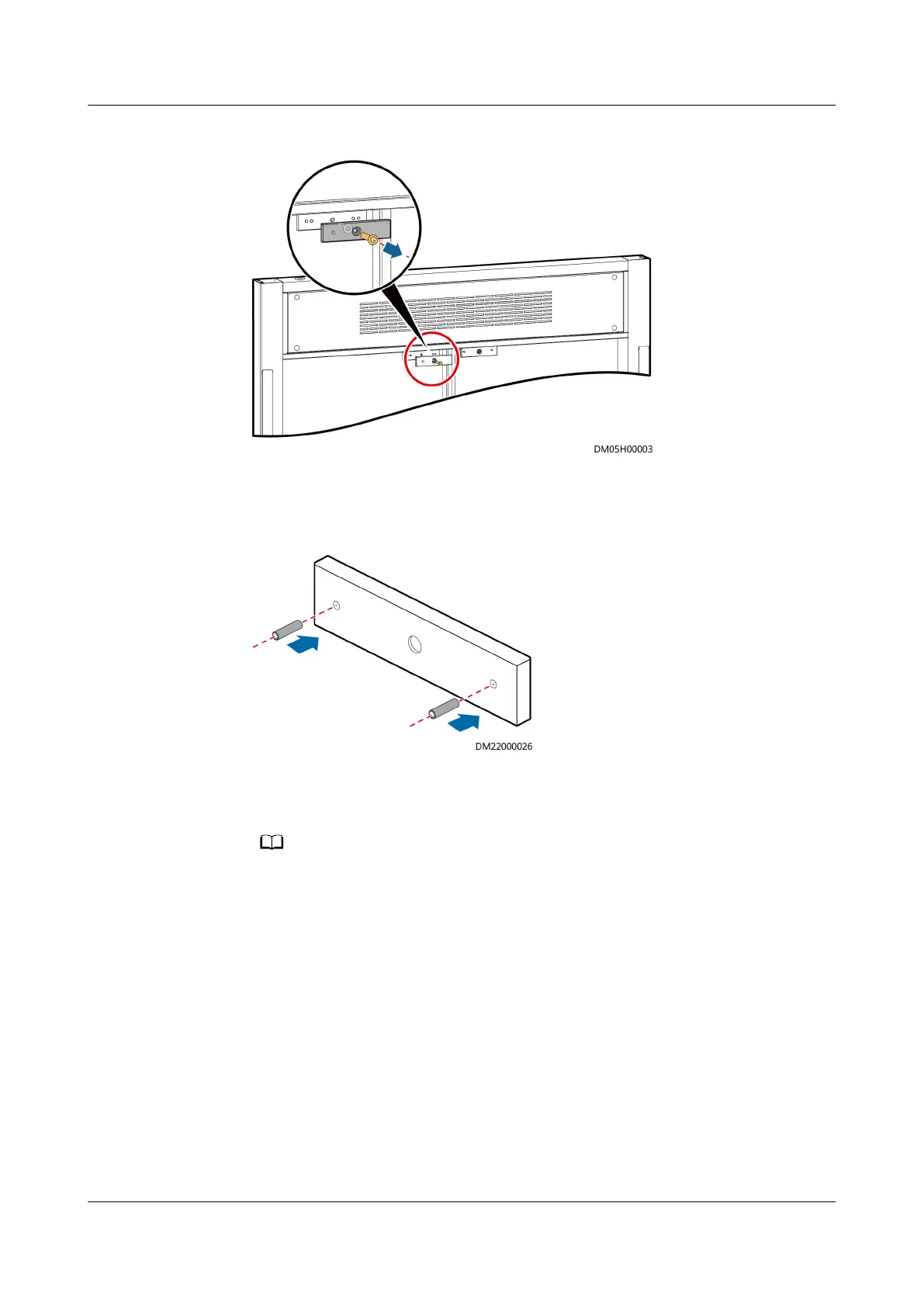

Figure 5-43 Removing a magnet
2. (Optional) Insert the positioning pins of the magnet into the magnet using a
rubber mallet, as shown in Figure 5-44.
Figure 5-44 Installing positioning pins of a magnet
3. Insert the assembled magnet into the magnetic lock base on the revolving
door, and secure the magnet to the door using the screws on the door and
the white rubber washer delivered with the magnet, as shown in Figure 5-45.
When securing the magnet to the door panel, do not over-tighten the screws so that
the white rubber washer is elastic. The washer will adjust the magnet to a correct
position because of its elasticity.
FusionModule2000 Smart Modular Data Center
Maintenance Guide (Fusion Module Actuator) 5 Parts Replacement
Issue 01 (2020-12-25) Copyright © Huawei Technologies Co., Ltd. 93
