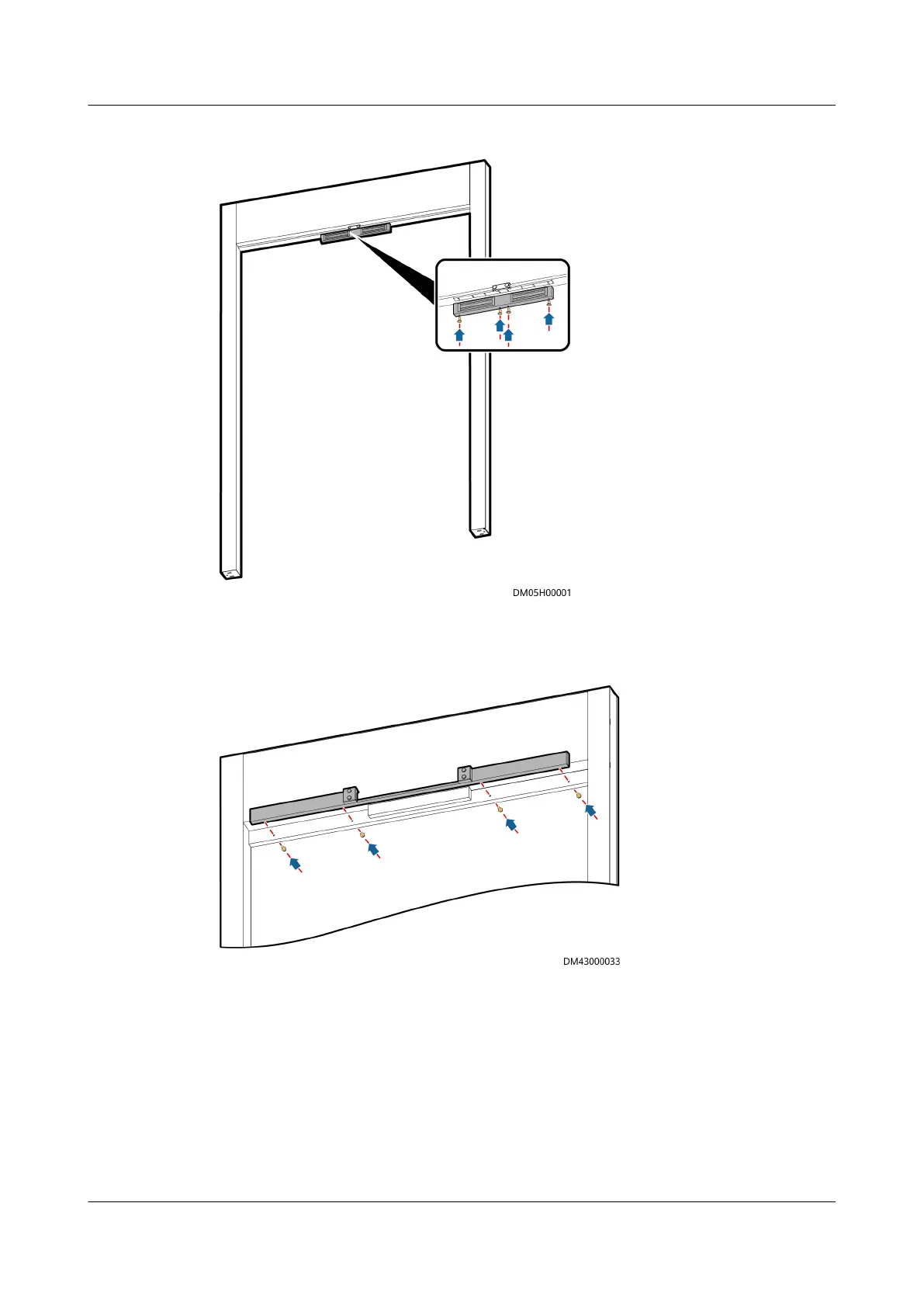

Figure 5-41 Installing a magnetic lock
Step 5 Install the mounting plate of the magnetic lock cover, as shown in Figure 5-42.
Figure 5-42 Installing the mounting plate of a magnetic lock cover
Step 6 Replace the magnet.
1. Remove the magnet from the door, as shown in Figure 5-43.
FusionModule2000 Smart Modular Data Center
Maintenance Guide (Fusion Module Actuator) 5 Parts Replacement
Issue 01 (2020-12-25) Copyright © Huawei Technologies Co., Ltd. 92
