Prerequisites
● The hard disk needs to be replaced.
● Data in the hard disk has been backed up.
● A spare hard disk of the same model is available and functional.
● Before replacing a faulty disk, ensure that the power switch on the rear panel
is
o and disconnect the power cable to power o the device.
Context
Recommended tools and materials: Phillips screwdriver, ESD wrist strap (or ESD
gloves).
Procedure
Step 1 Put on an ESD wrist strap (or ESD gloves) and insert the ground terminal into the
ESD jack in the cabinet.
Step 2 Remove the faulty hard disk.
1. Press the button on the hard disk panel to open the ejector lever.
2. Pull out the hard disk for about 3 cm, wait for 30 seconds at least until the
hard disk stops rotating, and pull it out.
3. Use a screwdriver to loosen the screws from the hard disk and remove the
hard disk.

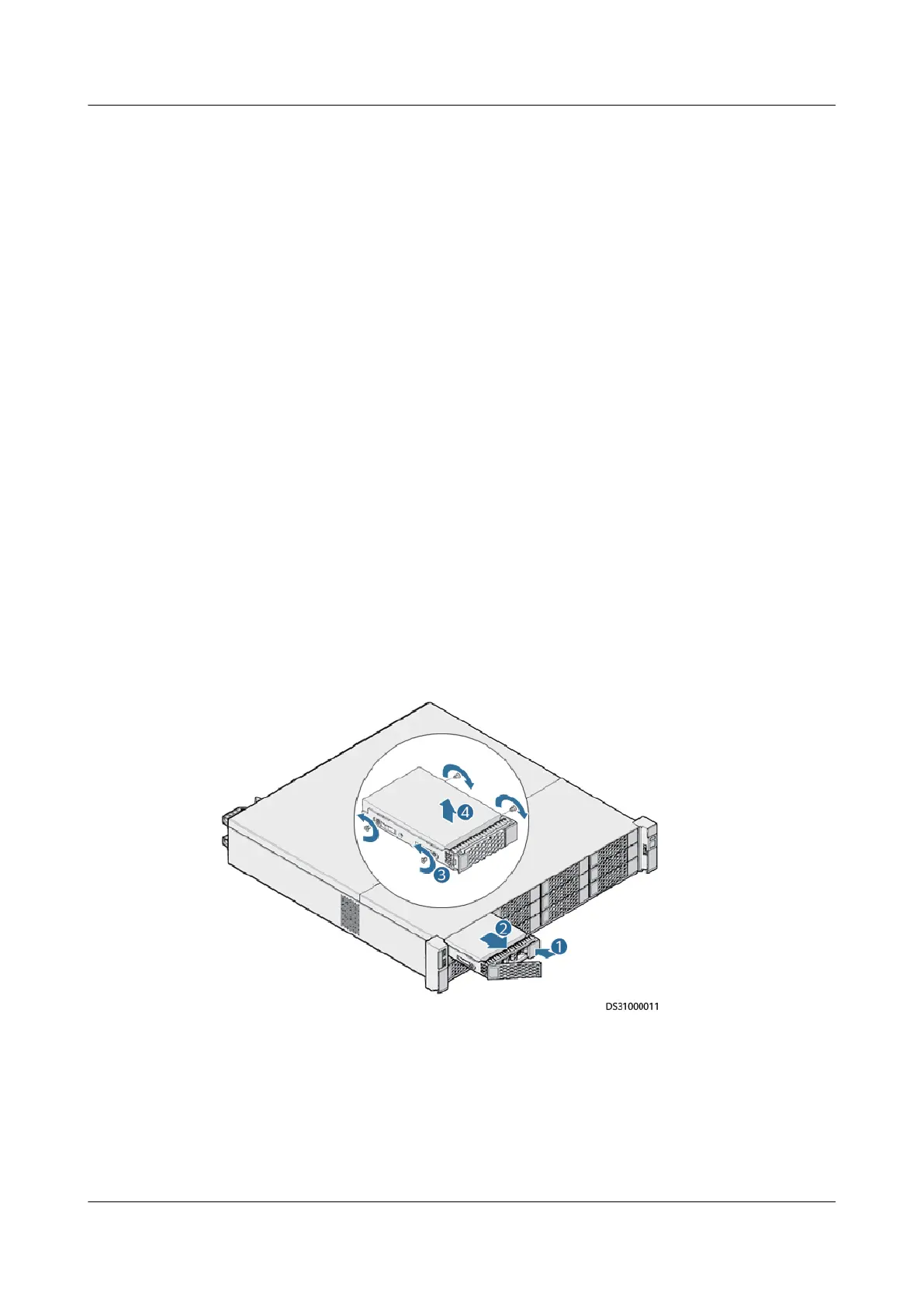

Figure 5-22 Removing a hard disk
Step 3 Install a new hard disk.
1. Install the new hard disk.
2. Secure the hard disk to the front panel using a screwdriver.
3. Push the hard disk into the subrack along the guide rails until it cannot move
forwards.
4. Close the ejector lever and push the hard disk in position.
