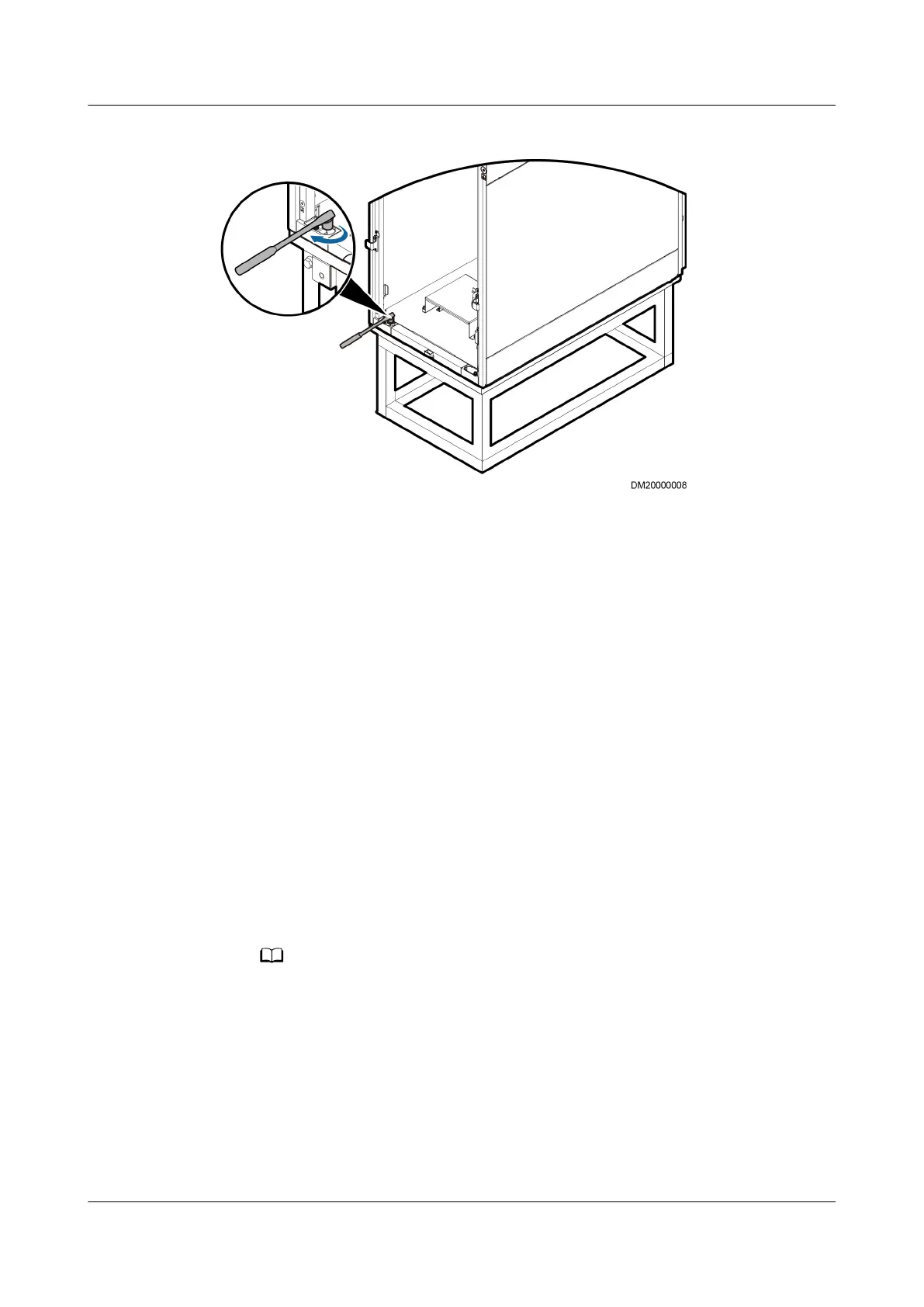

Figure 3-21 Securing the cabinet
----End
3.6.2 Installing an Indoor Unit in Non-securing Mode
Prerequisites
Non-securing mode applies to scenarios where the indoor unit is to be installed on
a
oor while no base is available.
Procedure
Step 1 Place the cabinet.
1. Determine the installation position according to the plan.
2. Move the cabinet to the installation position.
Step 2 Level the cabinet.
1. Raise the cabinet by adjusting the leveling feet using a wrench, as shown in
Figure 3-22. Ensure that the leveling feet contact the
oor and the castors
hang in the air.
Spin the castors. If the castors rotate freely, they are hanging in the air.
NetCol5000-A(025, 035) In-row Air Cooled Smart
Cooling Product
User Manual (600 mm Width) 3 Installation Guide
Issue 17 (2020-10-22) Copyright © Huawei Technologies Co., Ltd. 49
