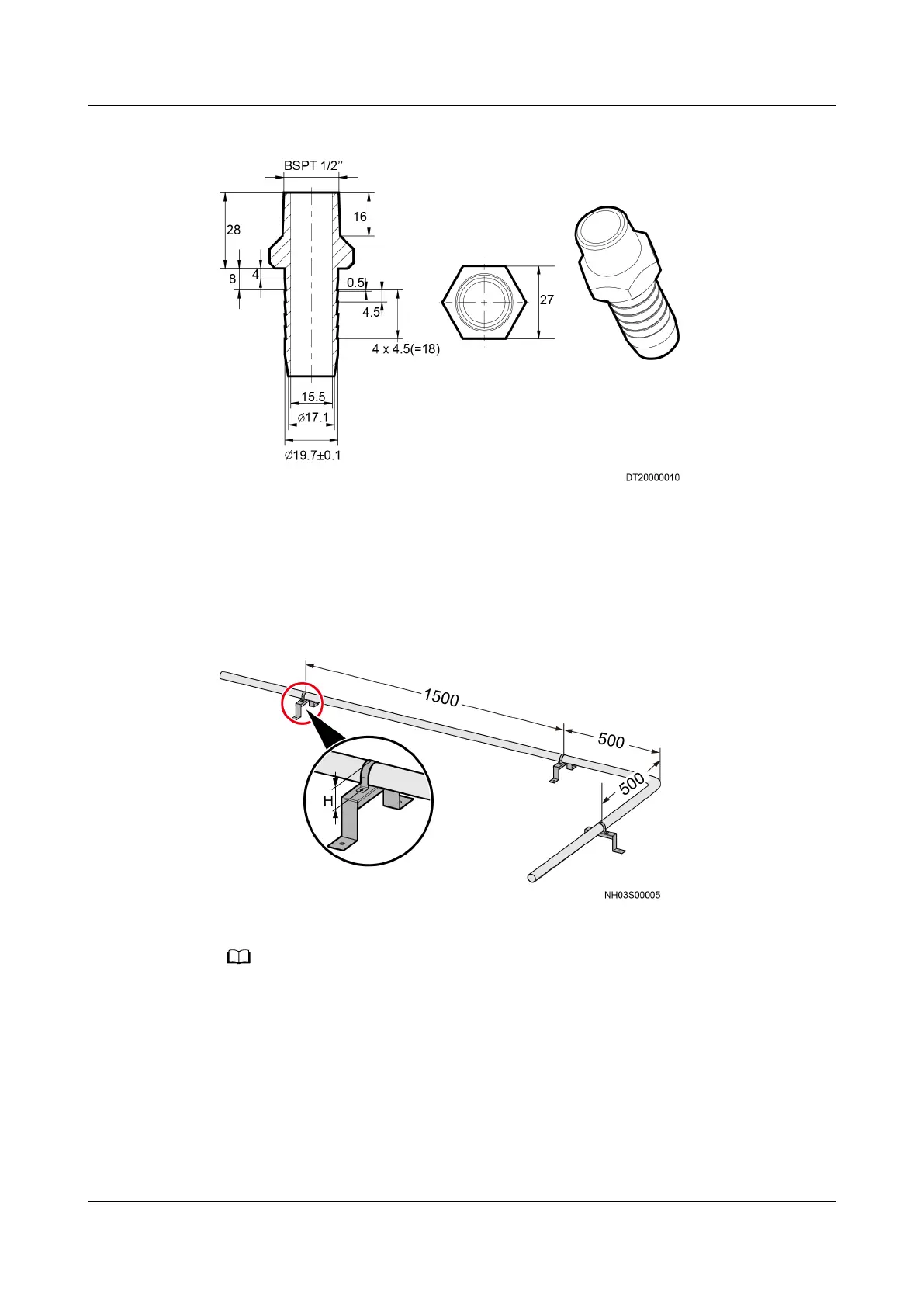

Figure 3-4 Pagoda connector (unit: mm)
3.1.2.5 Pipe Support
Figure 3-5 shows supports for refrigerant pipes and water pipes. The actual
appearance of the supports will be dierent based on onsite situations.
Figure 3-5 Pipe supports (unit: mm)
● The height of the U-shaped pipe clamp is 5 mm less than the pipe diameter (including
the thermal insulation foam). Pipe supports are subject to engineering procurement.
● It is recommended that pipe supports and pipe clamps be made of 304 stainless steel.
● Install a support every 1500 mm for the straight sections of pipes, and 500 mm away
from each bending point in turning sections.
3.1.2.6 Cables
Table 3-10 describes the cables to be connected onsite. Signal cables should be
routed through a protective tube.
