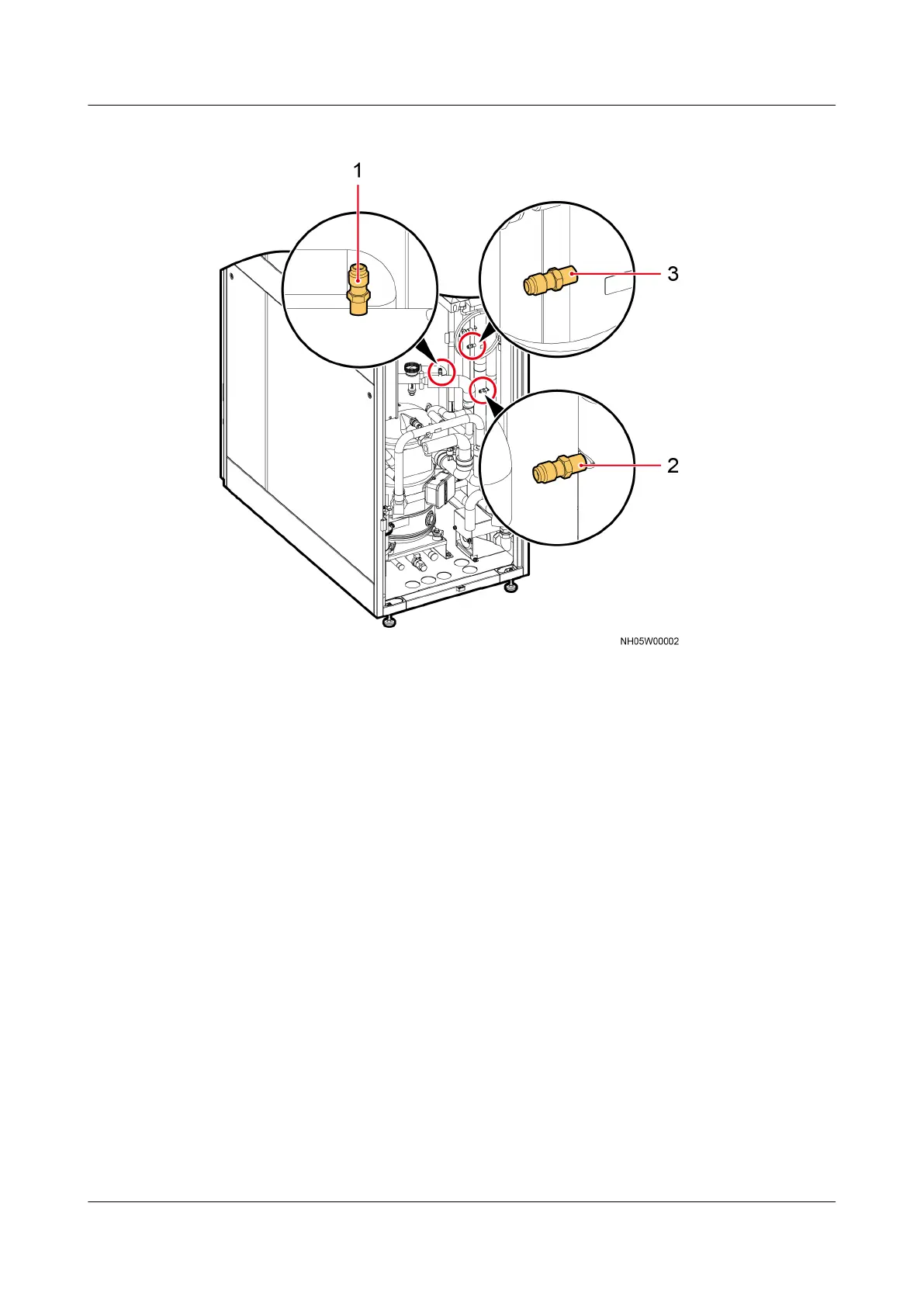

Figure 3-10 Needle valves
(1) Low-pressure needle valve (2) Liquid pipe needle valve (3) Discharge pipe needle
valve
----End
3.4 Removing the Transport Fixing Sheet Metals
3.4.1 Removing the Transport Fasteners from Floats
Context
The water tank is right under the evaporator and the
oats (also called liquid level
switches) are on the right side of the water tank, as shown in Figure 3-11.
NetCol5000-A(025, 035) In-row Air Cooled Smart
Cooling Product
User Manual (600 mm Width) 3 Installation Guide
Issue 17 (2020-10-22) Copyright © Huawei Technologies Co., Ltd. 39
