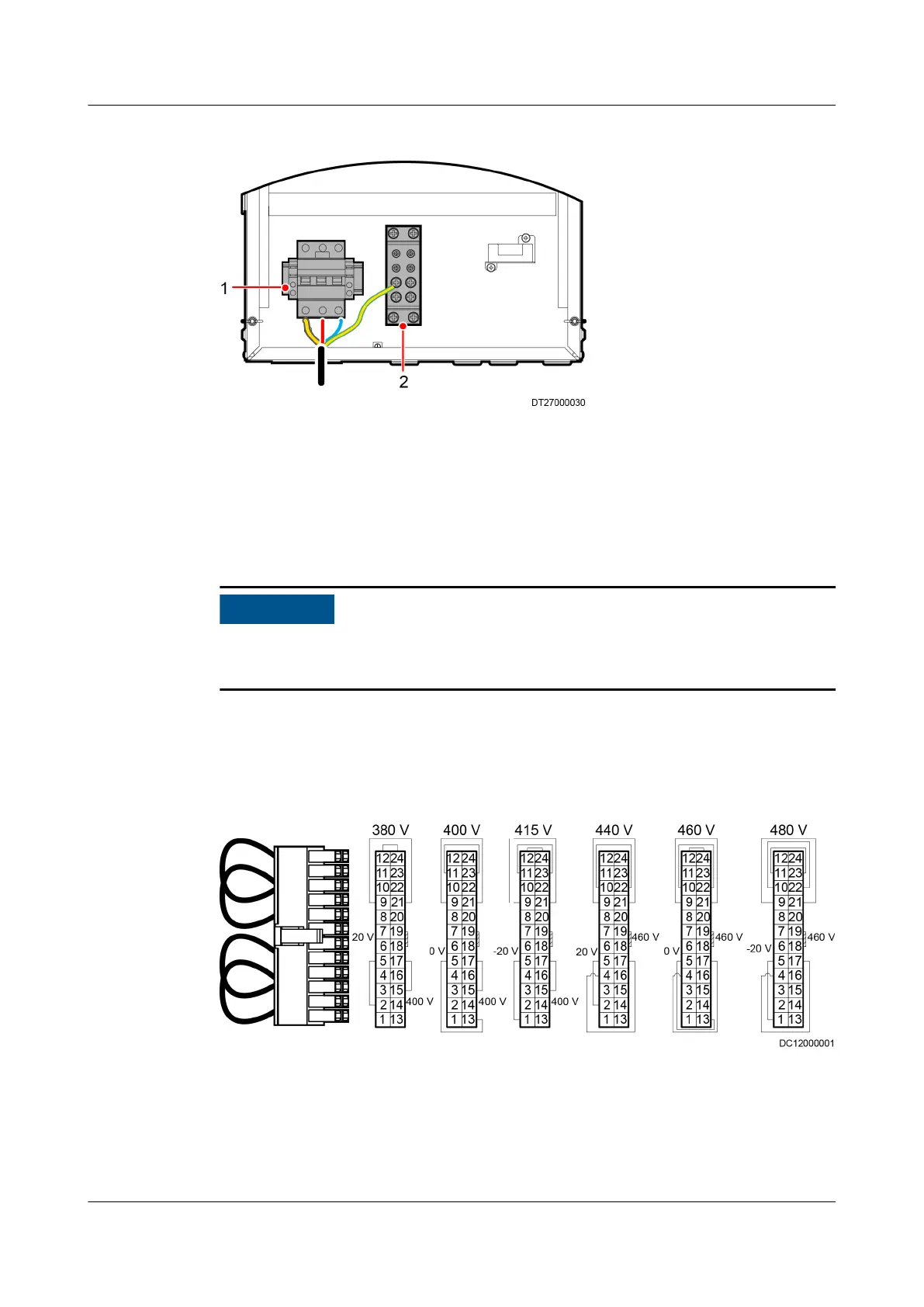

Figure 3-39 Connecting the power cable
(1) Power cable ports (connecting to L1, L2, L3,
from left to right)
(2) PE wiring terminal
3.11.3 Installing the Voltage Jumper
Before connecting the voltage jumper, ensure that the power distributor matches
the mains voltage.
Figure 3-40 shows six voltage jumpers. Select one jumper that matches the local
power voltage and connect the jumper to 11 in A Electrical Ports of an Indoor
Unit.
Figure 3-40 Voltage jumpers
3.11.4 Connecting the Signal Cables
