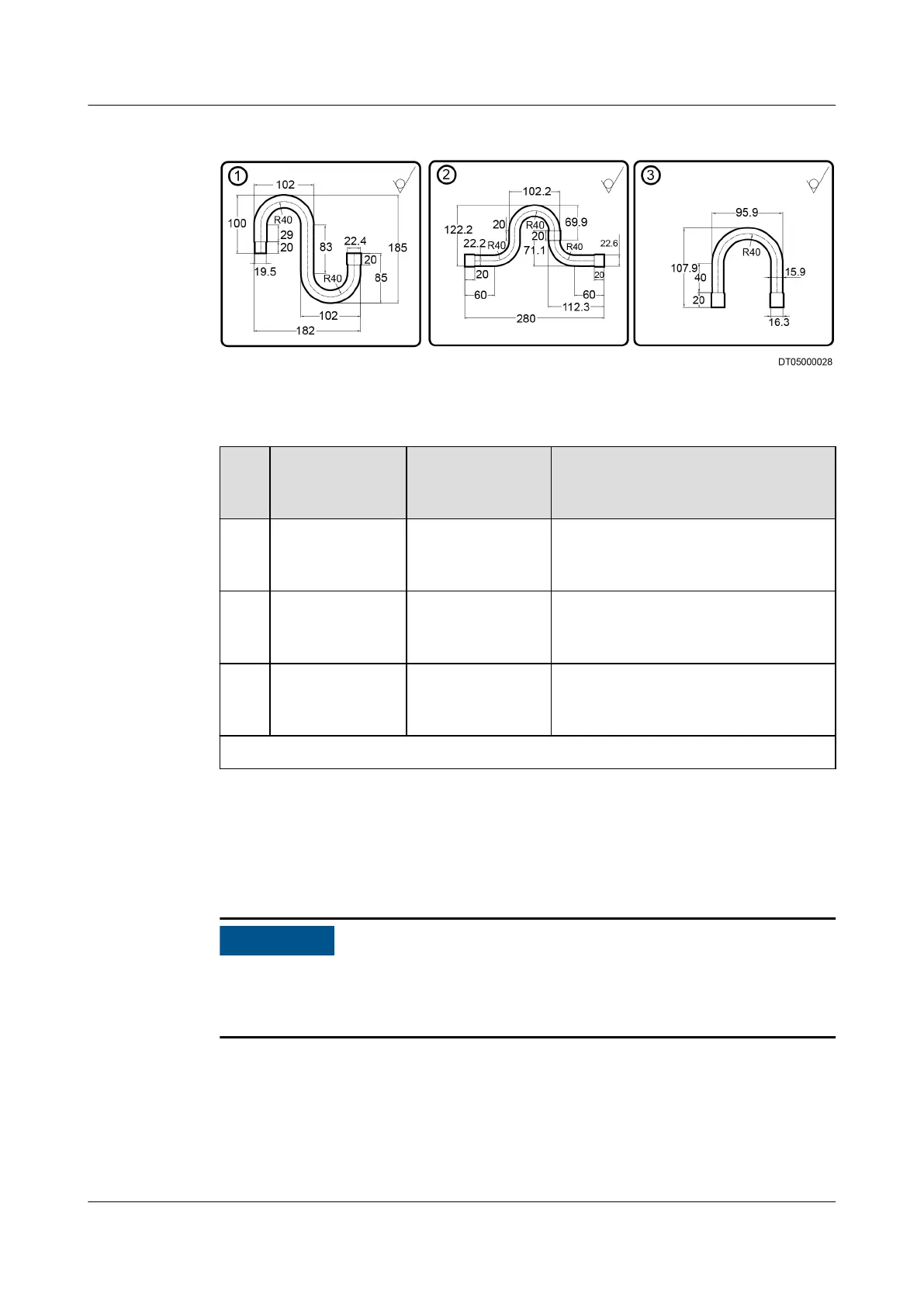

Figure 3-2 Oil trap and inverted traps (unit: mm)
Table 3-8 Specications for oil traps and inverted traps
No. Name Copper Pipe
Outer Diameter
and Thickness
Technical Requirements
1 Oil trap 22.2 mm x 1.2
mm
The aring inner diameter of the
copper pipe is 22.4 mm, and the
necking outer diameter is 19.5 mm.
2 Gas pipe
inverted trap
22.2 mm x 1.2
mm
The aring inner diameters at both
ends of the copper pipe are 22.6
mm.
3 Liquid pipe
inverted trap
15.9 mm x 1.0
mm
The aring inner diameters at both
ends of the copper pipe are 16.3
mm.
Note: After the traps are made, verify that the surface is smooth and even.
3.1.2.4
Humidier Water Inlet Pipe, Pump Drainpipe, and Automatic
Drainpipe
NO TICE
Drainpipes must be able to withstand temperatures higher than 85°C. Otherwise,
the pipes may be deformed. This notice is for the equipment
congured with a
humidier.
Table 3-9 and Figure 3-3 describe how to install the humidier water inlet pipe,
pump drainpipe, and automatic drainpipe.
