Table 3-9 Pipe connection methods
Method Application Scenario Material
No. 1 in
Figure 3-3
Humidier water inlet pipe,
and pump drainpipe
Conversion adapter and rigid
pipe
No. 2 in
Figure 3-3
Humidier water inlet pipe,
and pump drainpipe
Pagoda connector, hose, and
hose clamp
No. 3 in
Figure 3-3
Automatic drainpipe Conversion adapter and rigid
pipe

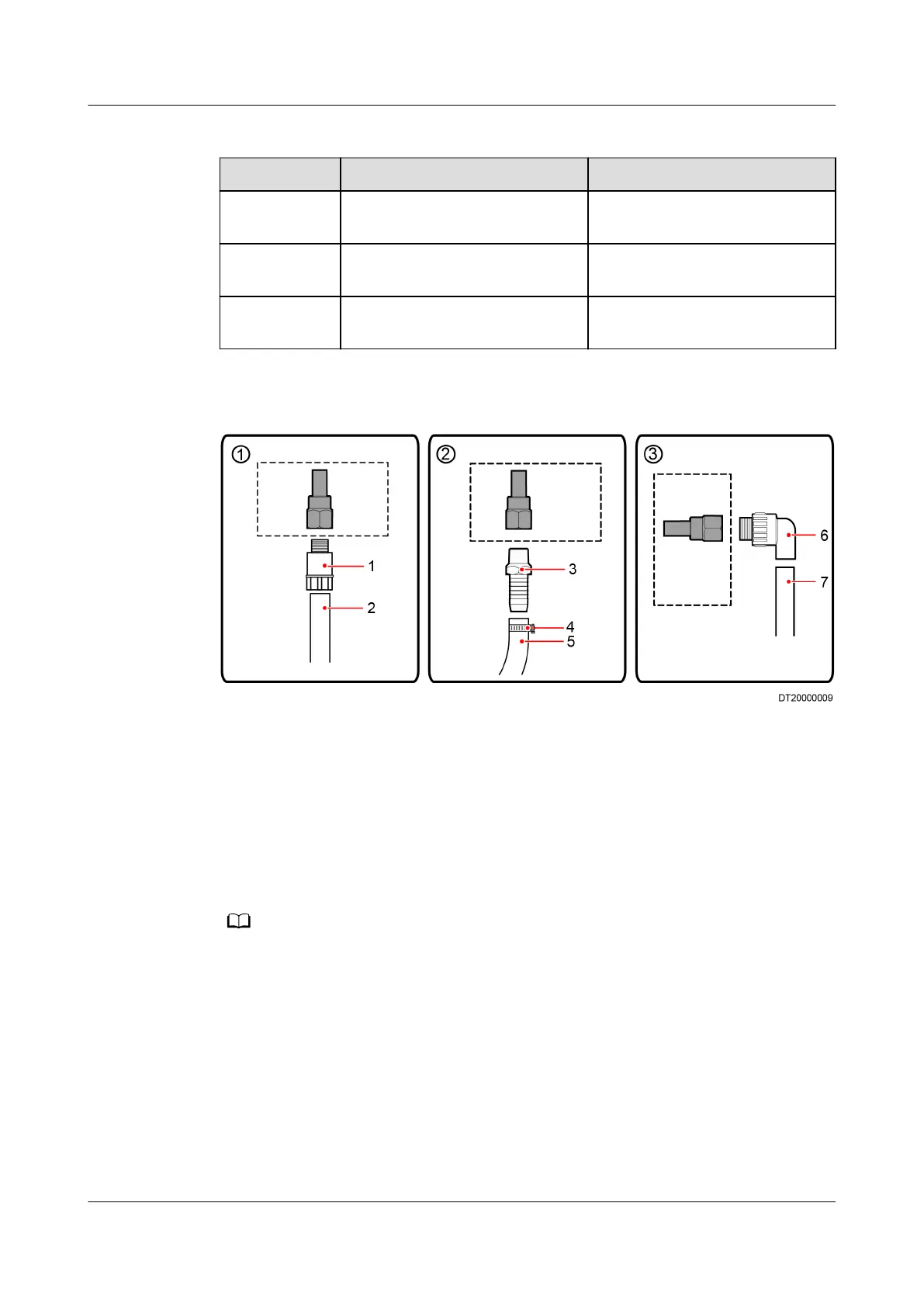

Figure 3-3 Connecting water pipes
(1) Conversion adapter: BSPT 1/2 inch,
connected to a rigid pipe with external threads
(2) Rigid pipe: made of PP-R, C-PVC, or other
materials
(3) Pagoda connector: as shown in Figure 3-4 (4) Hose clamp
(5) Hose: a hose with an inner diameter of 3/4
inch and made of EPDM or other materials
(6) Conversion adapter: BSPT 1/2 inch,
connected to a rigid pipe with external threads
(7) Rigid pipe: made of PP-R, C-PVC, or other
materials
Components inside the dash-line boxes are ports on the equipment, with the dimension of
BSPP 1/2 inch and internal threads.
NetCol5000-A(025, 035) In-row Air Cooled Smart
Cooling Product
User Manual (600 mm Width) 3 Installation Guide
Issue 17 (2020-10-22) Copyright © Huawei Technologies Co., Ltd. 32
