3.6.1 Installing an Indoor Unit in Securing Mode
Prerequisites
A base or a raised oor is available in the room where the indoor unit is to be
installed.
Context
Figure 3-16 and Figure 3-17 show the ports on the bottom and top panels of the
indoor unit.

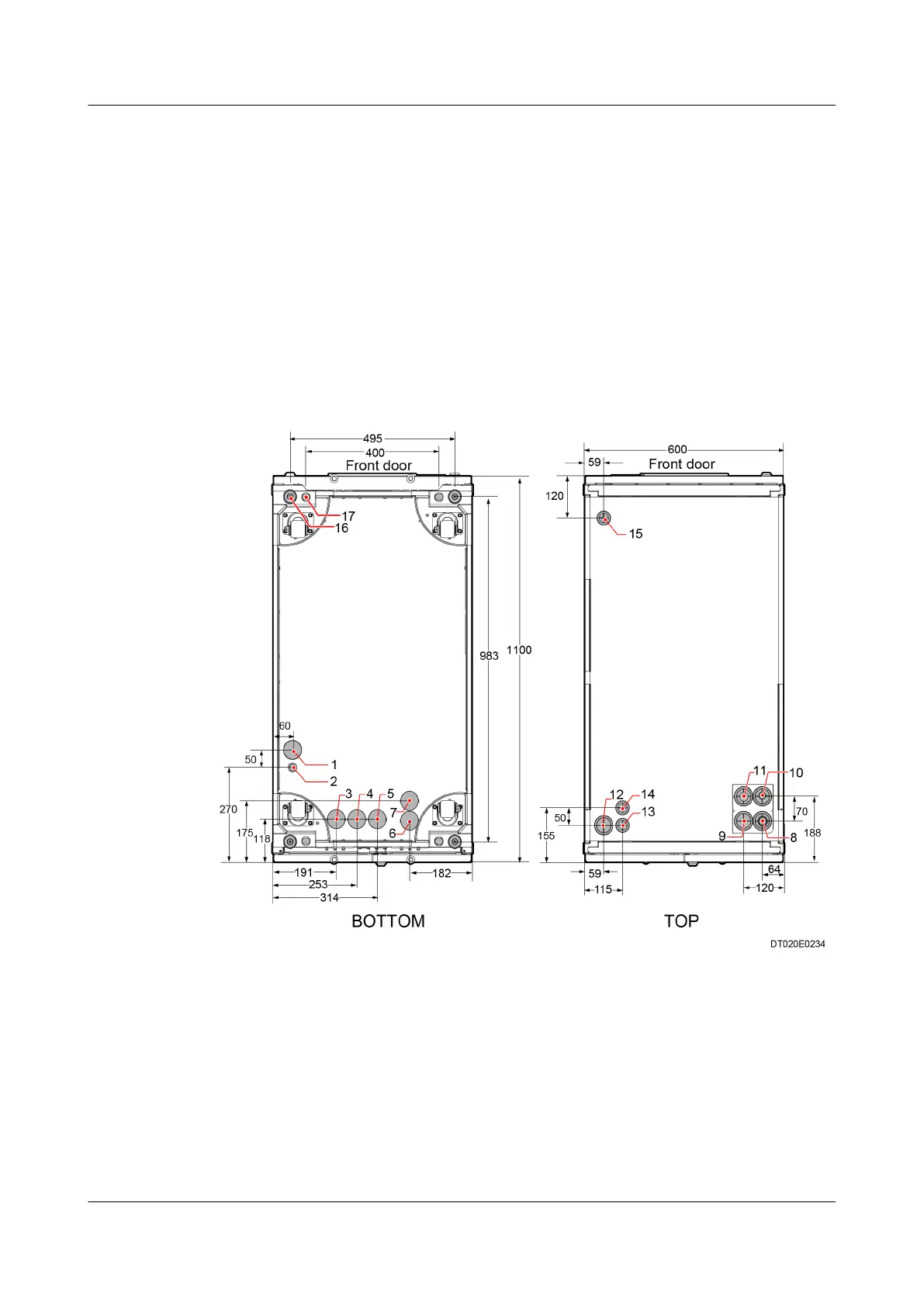

Figure 3-16 Ports on the bottom and top panels for the codes of 52272131 and
52272132 (unit: mm)
