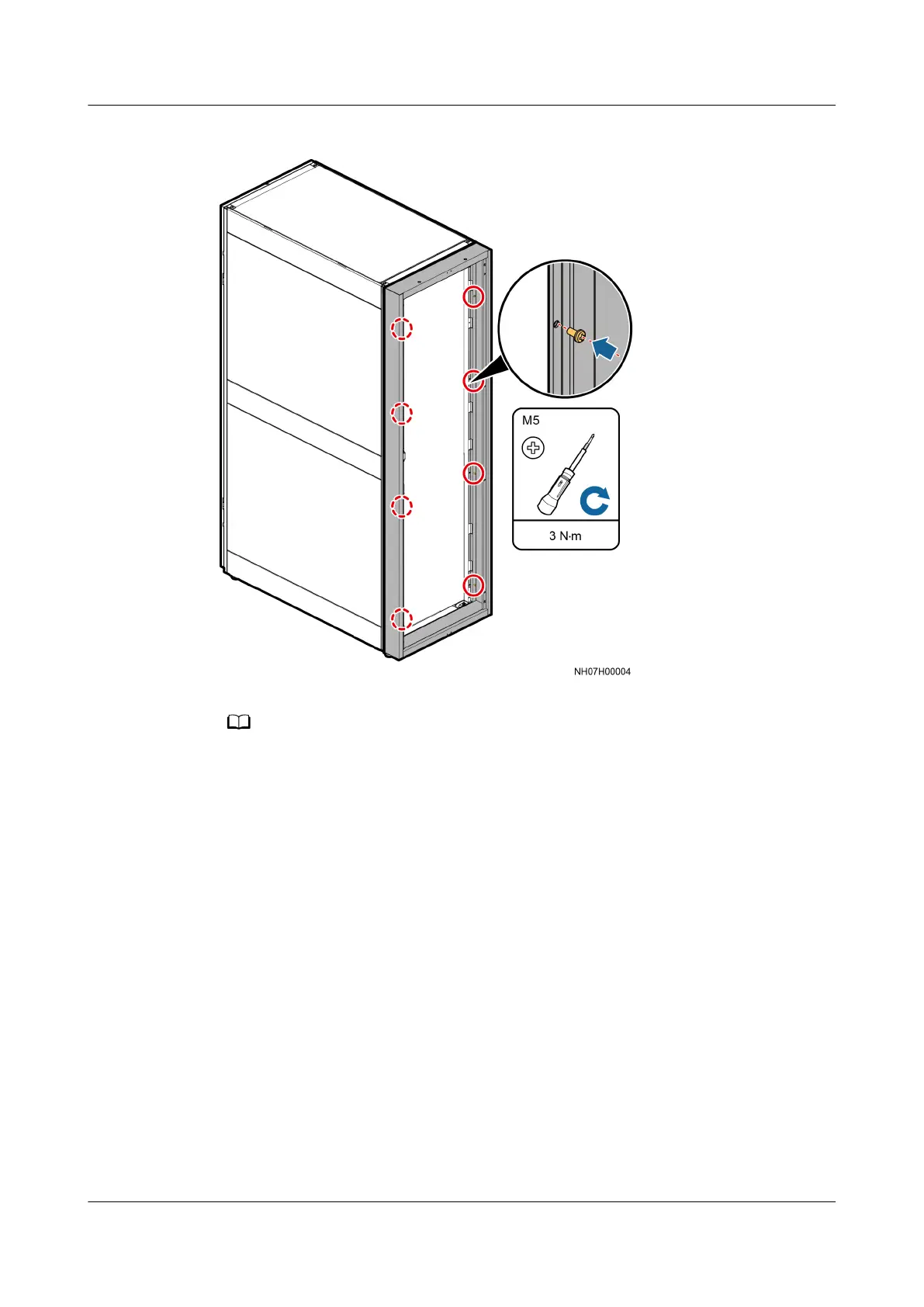

Figure 3-34 Installing an enclosure frame
The positions of the bolt xing plate, hinges, and connecting plates vary depending on the
cabinet model.
Step 5 (Optional; only for units whose BOM numbers are 52272131 or 52272132) Secure
the top sealing plate of the enclosure frame to the enclosure frame using four M5
tapping screws.
NetCol5000-A(025, 035) In-row Air Cooled Smart
Cooling Product
User Manual (600 mm Width) 3 Installation Guide
