Configuration
The ETSI SPL subrack provides 22 slots.

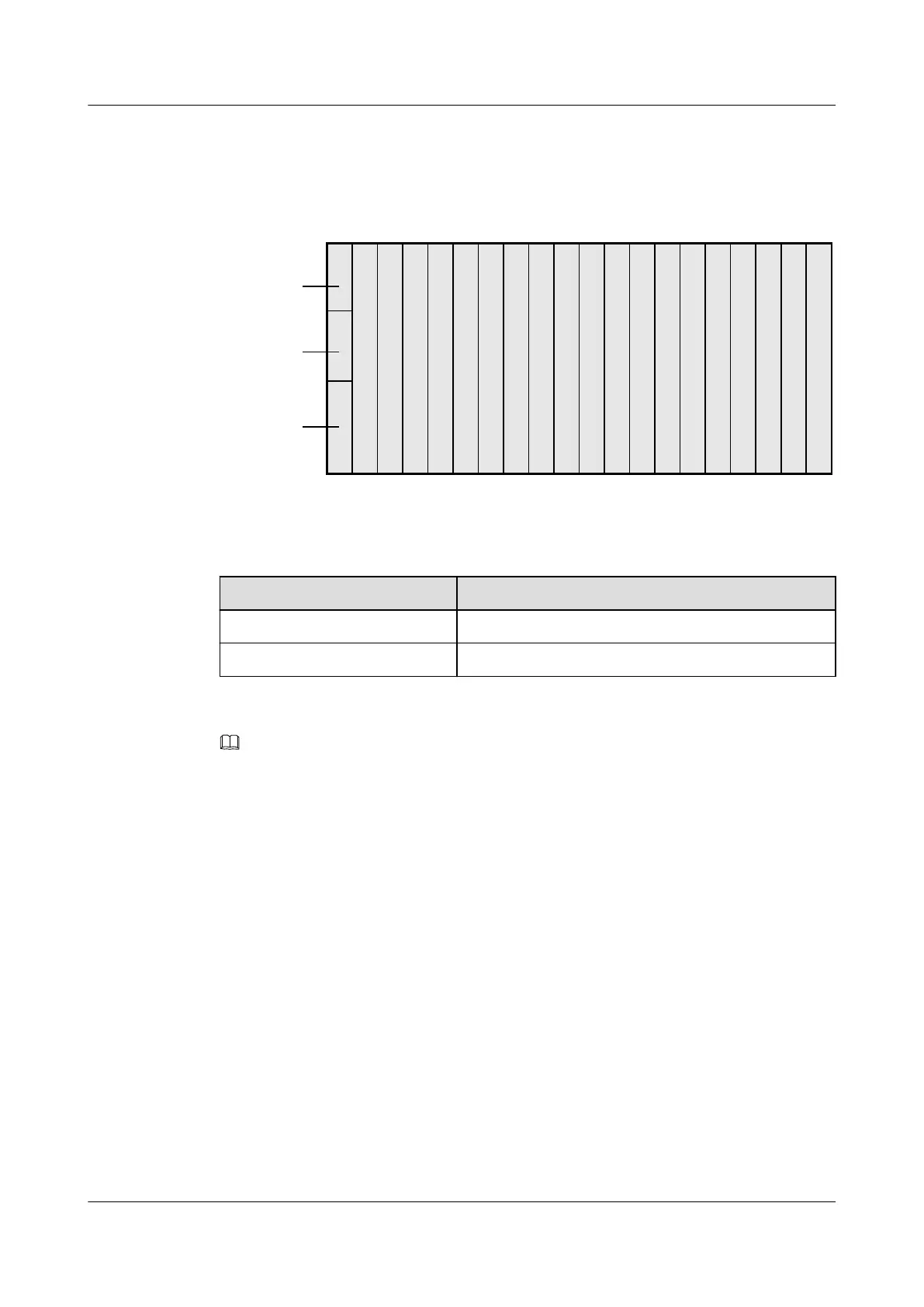

Figure 2-8 Configuration of boards in the ETSI SPL subrack
S
P
L
S
P
L
S
P
L
S
P
L
S
P
L
S
P
L
S
P
L
S
P
L
F
i
l
l
e
r
p
a
n
e
l
F
i
l
l
e
r
p
a
n
e
l
S
P
L
S
P
L
S
P
L
S
P
L
S
P
L
S
P
L
S
P
L
S
P
L
F
i
l
l
e
r
p
a
n
e
l
120
21
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
0
Filler panel
Filler panel
Filler panel
Table 2-12 Boards in the ETSI SPL subrack
Slot
Supported Board
1-8,11-18 SPL board
0,9,10,19-21 Filler panel
NOTE
The ETSI SPL subrack is used to accommodate the low-density SPL board, high-density SPL board
with built-in front panel, and transfer board with built-in front panel.
2.3 MA5600T IEC Service Subrack Description
This topic provides the appearance, specification, function, working principle, configuration
and fan tray of the IEC service subrack.
2.3.1 Appearance
The IEC service subrack provides 21 slots, and has a fan tray at the top. The subrack is
installed in the cabinet through the mounting brackets. This topic provides the appearance of
the IEC service subrack.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
2 Subrack and Chassis
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
88
