Huawei SmartAX MA5608T Hardware Description

The N66E-22 cabinet consists of the rack (main frame), a front door, a rear panel fixed by
screws, and side panels on the left and right sides.
The door of the N66E-22 cabinet is removable and the top of the cabinet has the grounding
point. All N66E-22 cabinets have the same key for the front door.

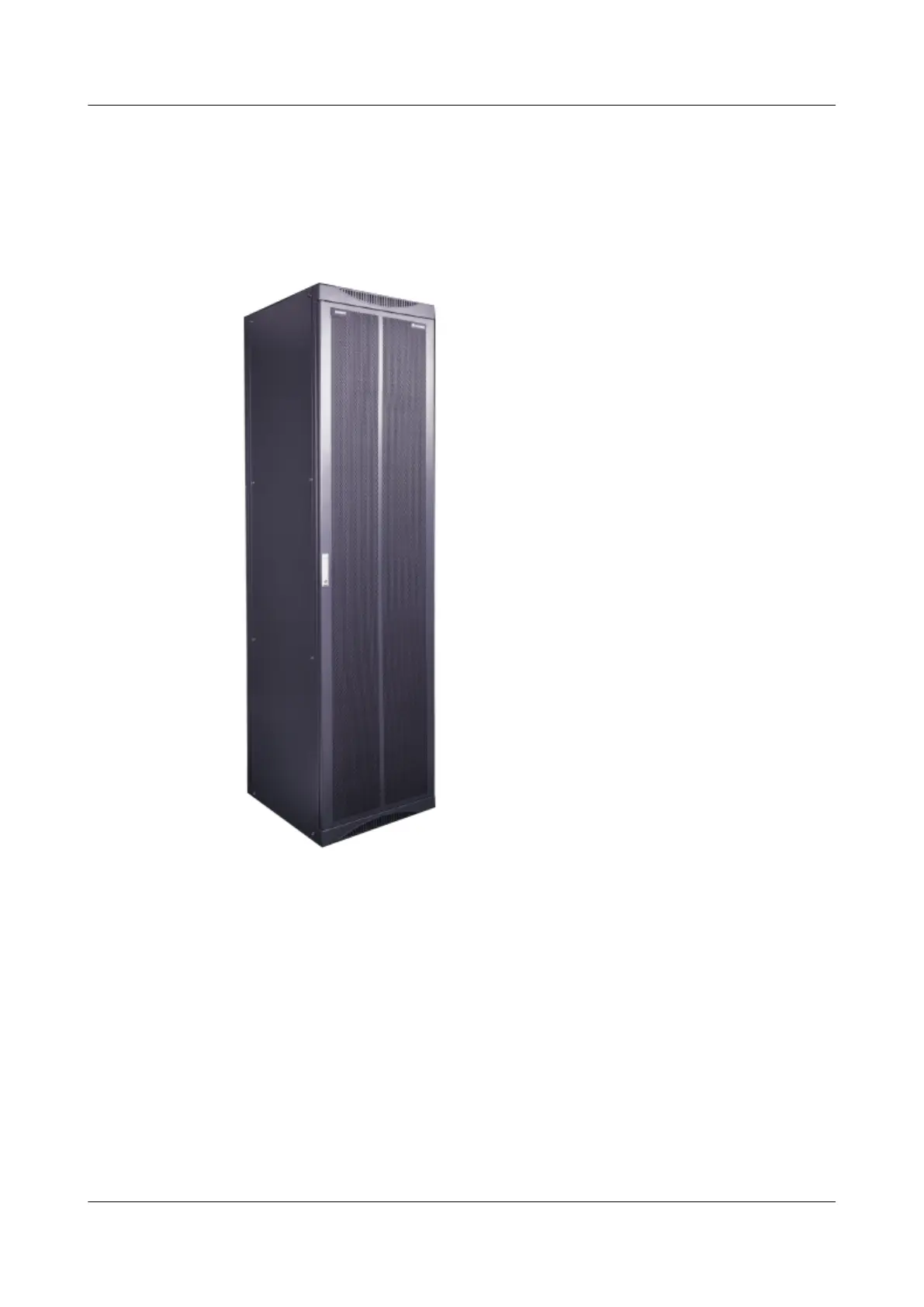

Figure 1-48 Appearance of the N66E-22 cabinet
1.3.2 Physical Specifications
This topic provides the dimensions, weight and power specifications of the N66E-22 cabinet.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
1 Cabinet
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
56

Huawei SmartAX MA5608T Specifications

General

Dual Power Supply	Yes
Humidity	5% to 95% (non-condensing)
Uplink Slots	2
Maximum GPON Ports	16
Input Voltage Range	-38.4 V DC to -72 V DC
Device Type	OLT
Power Supply	-48 V DC
Operating Temperature	-25°C to +55°C
Storage Temperature	-40°C to 70°C
Switching Capacity	128 Gbps
Ports	GPON, XG-PON, 10GE
