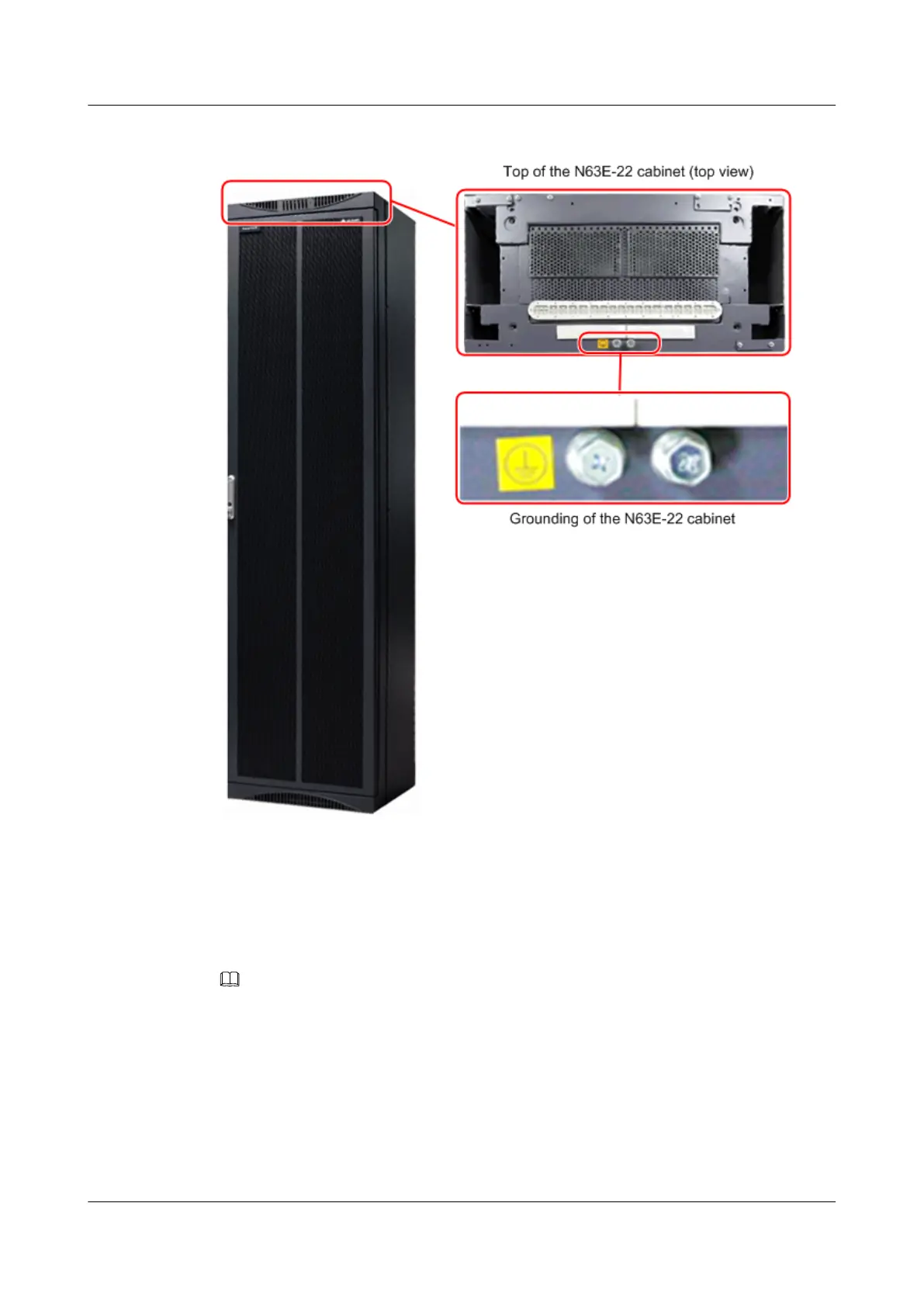

Figure 1-16 Grounding of the N63E-22 cabinet
1.1.11 External Connections
This topic describes the external connections of the N63E-22 cabinet.
NOTE
External cables are not used in the assembly and debugging of the integrated equipment, but are
delivered to the customers and installed on site.
External Connections of the N63E-22 Cabinet Installed with Two Service
Subracks (PON)
Figure 1-17 and Figure 1-18 show the external connections of the N63E-22 cabinet installed
with two service subracks.
