Huawei SmartAX MA5608T Hardware Description

Table 1-10 lists the materials and dimensions of the air filter at the bottom of the N66E-22
cabinet.
Table 1-10 Materials and dimensions of the air filter at the bottom of the N66E-22 cabinet
Cabinet Material Dimensions (W x D x H)
N66E-22 50PPI black sponge 415.00mm×500.00mm×7.00mm
Function
The air filter on the inner side of the front door prevents dust from entering the cabinet.
During the ventilation, cool air enters the cabinet through the air intake vent at the bottom of
the cabinet. The air filter at the bottom of the cabinet prevents dust from entering the cabinet.
1.3.7 Cable Manager
This topic describes the appearance and functions of the cable manager.
Appearance

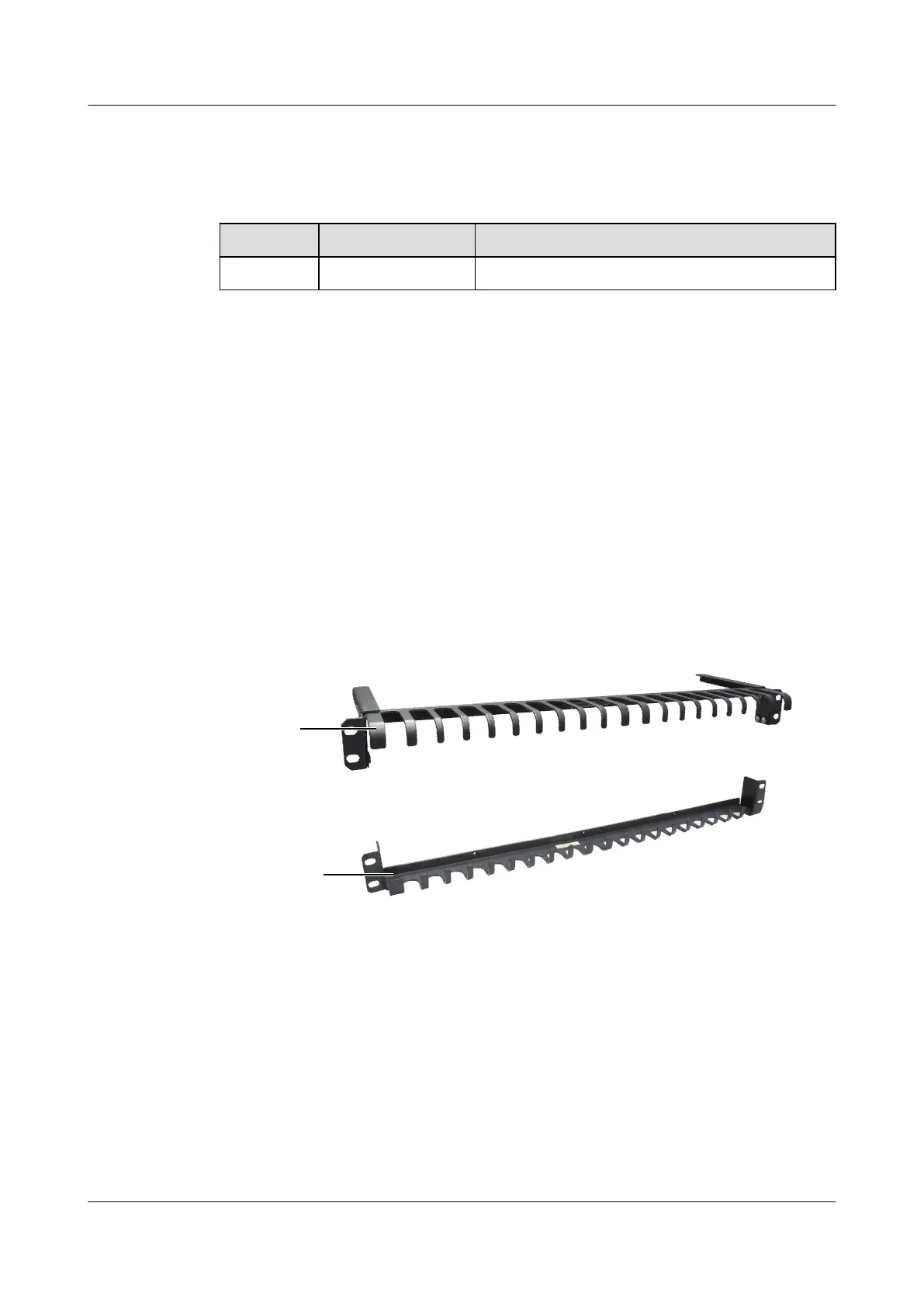

Figure 1-56shows the appearance of the cable manager.
Figure 1-56 Appearance of the cable manager
Upper
cable
manager
Lower
cable
manager
Functions
The cable manager is configured under the service subrack or SPL subrack.
The cable manager supports the following functions:
l The main function of the upper cable manager is to clearly separate cables of each slot
from each other so that cables can be routed in order and cables in one slot do not affect
the insertion or removal of the board in the neighboring slot.
l The main function of the lower cable manager is to bear optical fibers.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
1 Cabinet
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
63

Huawei SmartAX MA5608T Specifications

General

Dual Power Supply	Yes
Humidity	5% to 95% (non-condensing)
Uplink Slots	2
Maximum GPON Ports	16
Input Voltage Range	-38.4 V DC to -72 V DC
Device Type	OLT
Power Supply	-48 V DC
Operating Temperature	-25°C to +55°C
Storage Temperature	-40°C to 70°C
Switching Capacity	128 Gbps
Ports	GPON, XG-PON, 10GE
