Specification Description
Color PANTONE 430 U (PANTONE refers to
international standard color cards and
430 U is close to grey)
Characteristic impedance 100.0 ohms
Wire diameter of the inner conductor 0.400 mm (26 AWG)
Wire 64-wire
Breakdown voltage 1000.0 V
DC resistance of the inner conductor 145.0 ohms/km
Frequency range ADSL: Default
VDSL: 1 MHz - 30 MHz
Frequency attenuation ≤ 2.95 dB/100 m (1 MHz)
Capacitance ≤ 56 nF/km (1 kHz)

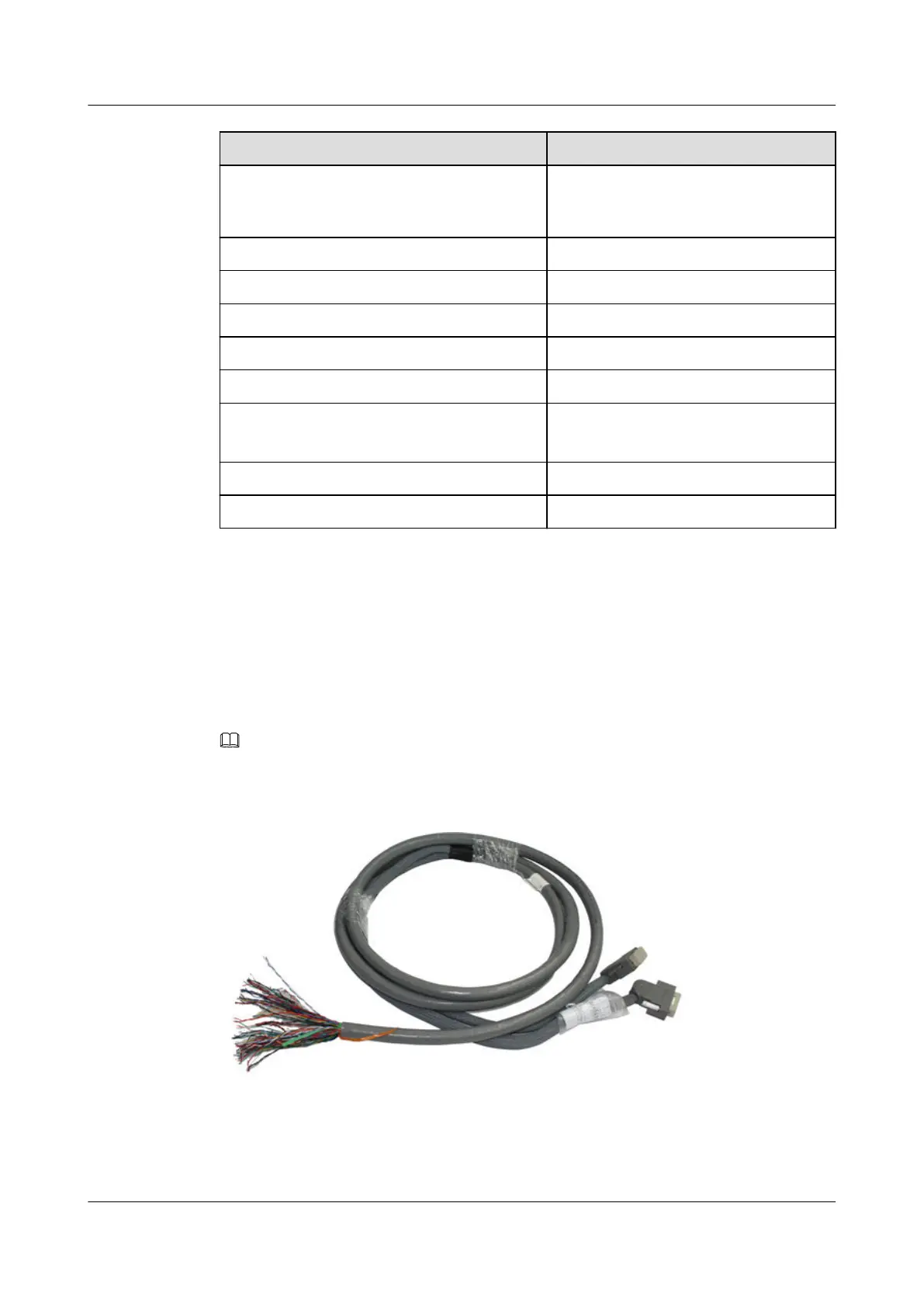

5.2.8 64-Channel Subscriber Cable
The 64-channel subscriber cable connects the service board to the MDF to transmit audio,
video, and data signals.
Cable Connector
NOTE
The 64-channel subscriber cable can be classified into four types, unshielded ADSL subscriber cable,
shielded ADSL subscriber cable, unshielded VDSL subscriber cable, and shielded VDSL subscriber
cable. The appearances of these cables are similar.
Connected to
the MDF
Delander 64-pin connector
Connected to the PSTN
(PSTN0 and PSTN1) or LINE
(LINE0 and LINE1) port of the
SPL board or service board
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
5 Cable
