Huawei SmartAX MA5608T Hardware Description

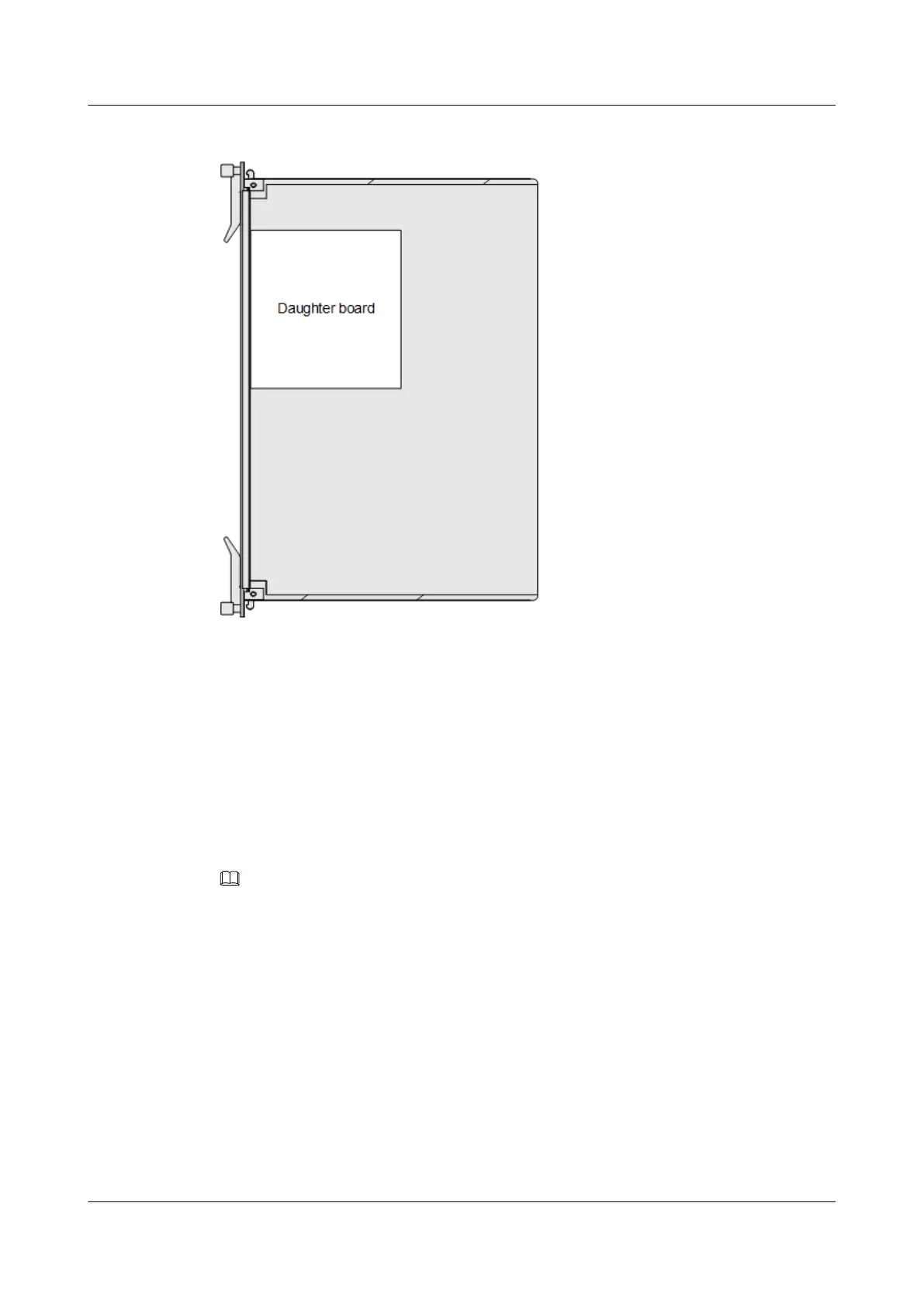

Figure 3-8 Position of the daughter board on the H802SCUB board
3.6.4 H801SCUF Board Description
The H801SCUF is a super control unit board. It is the core of the system control, service
switching, and aggregation. The H801SCUF can also function as the management and control
core of the integrated network management system (NMS). The H801SCUF communicates
with service boards about the key management and control information through the master/
slave serial port and inband GE/10GE channel. In this manner, the H801SCUF configures,
manages, and controls the device, and also implements the simple route protocol function.
NOTE
The H801SCUF board has the following changes after an upgrade from Ver.A to Ver.B:
l H801SCUF Ver.B reads the power board information directly through the backplane.
l H801SCUF Ver.A needs to work with the universal interface board in slot 0 to obtain the power
board information.
Functional Specifications
Please refer to "SCU boards Comparison".
Technical Specifications
Please refer to "Power Consumption and Maximum Frame Size of Boards".
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
3 Board
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
210

Huawei SmartAX MA5608T Specifications

General

Dual Power Supply	Yes
Humidity	5% to 95% (non-condensing)
Uplink Slots	2
Maximum GPON Ports	16
Input Voltage Range	-38.4 V DC to -72 V DC
Device Type	OLT
Power Supply	-48 V DC
Operating Temperature	-25°C to +55°C
Storage Temperature	-40°C to 70°C
Switching Capacity	128 Gbps
Ports	GPON, XG-PON, 10GE
