Huawei SmartAX MA5608T - Physical Specifications

1.2.2 Physical Specifications
This topic provides the dimensions and weight of the N66E-18 dual-standard cabinet.
Dimensions and Weight

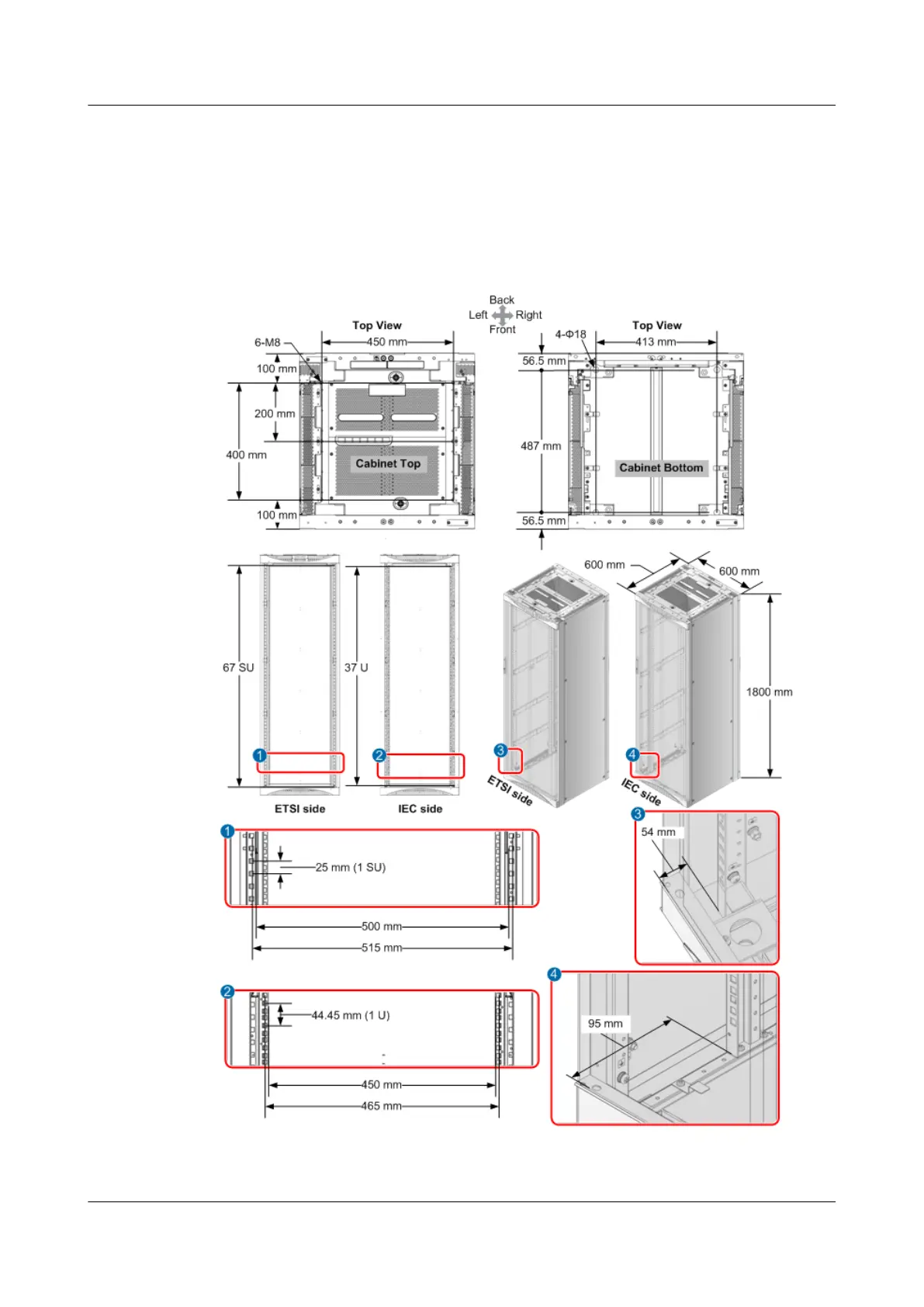

Figure 1-26 Dimensions of the N66E-18 dual-standard cabinet
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
1 Cabinet
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
33
