1.1.7 Air Filter
The air filters are installed on the inner side of the front door and at the bottom of the cabinet.
This topic provides the appearance and dimensions of the air filters, and describes the material
and function of the air filters.
Appearance and Dimensions
Figure 1-12 and Table 1-2 lists the materials and dimensions of the air filter on the inner side
of the front door of the N63E-22 cabinet.

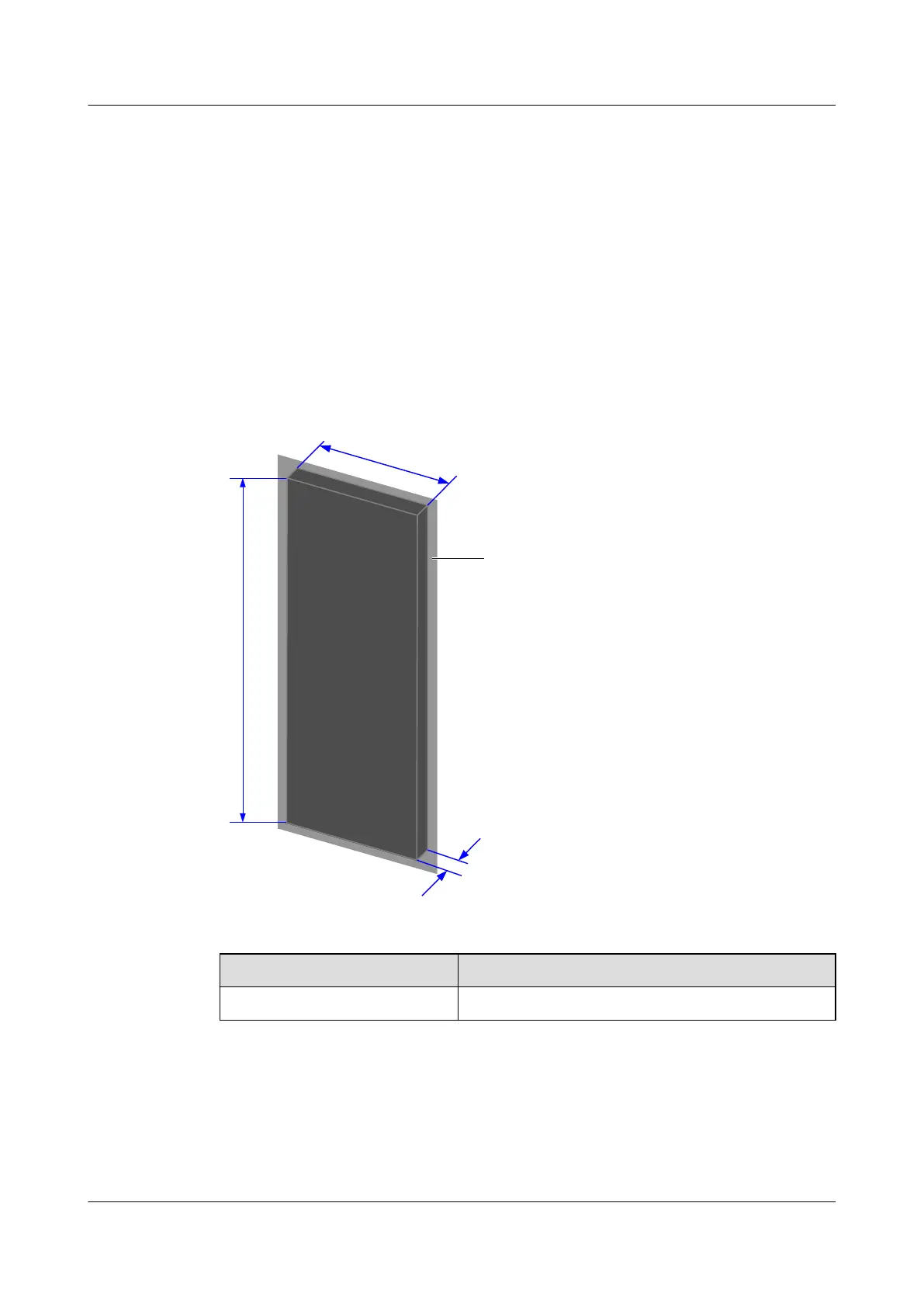

Figure 1-12 Dimensions of the air filter on the inner side of the front door of the N63E-22
cabinet
Front door
2
0
3
5
.
0
0
m
m
436.00 mm
7.00 mm
Table 1-2 Material of the air filter on the inner side of the front door of the N63E-22 cabinet
Cabinet
Material
N63E-22 50PPI (50 sponge picks per inch) black sponge
Figure 1-13 shows the air filter at the bottom of the N63E-22 cabinet.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
1 Cabinet
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
19
