Huawei SmartAX MA5608T Hardware Description

Item Specifications
Number of output tributaries 8 channels
Output current
l BATT: 63 A
l LOAD1: 10 A
l LOAD2: 20 A
l LOAD3: 20 A
l LOAD4: 50 A
The GEPS4845 AC power supply unit contains three rectifier modules. The three rectifier
modules are parallel connected for output.
Table 6-33 shows the number of rectifier modules in the GEPS4845 AC power supply unit
and the maximum output current.
Table 6-33 Number of rectifier modules and the maximum output current
Number of Rectifier Modules
Maximum Output Current
1 15 A
2 30 A
3 45 A
6.7 PMIB01 Sensor Transfer Box
This topic describes the application and front panel of the sensor transfer box, and provides
the specifications of the sensor transfer box.
Appearance

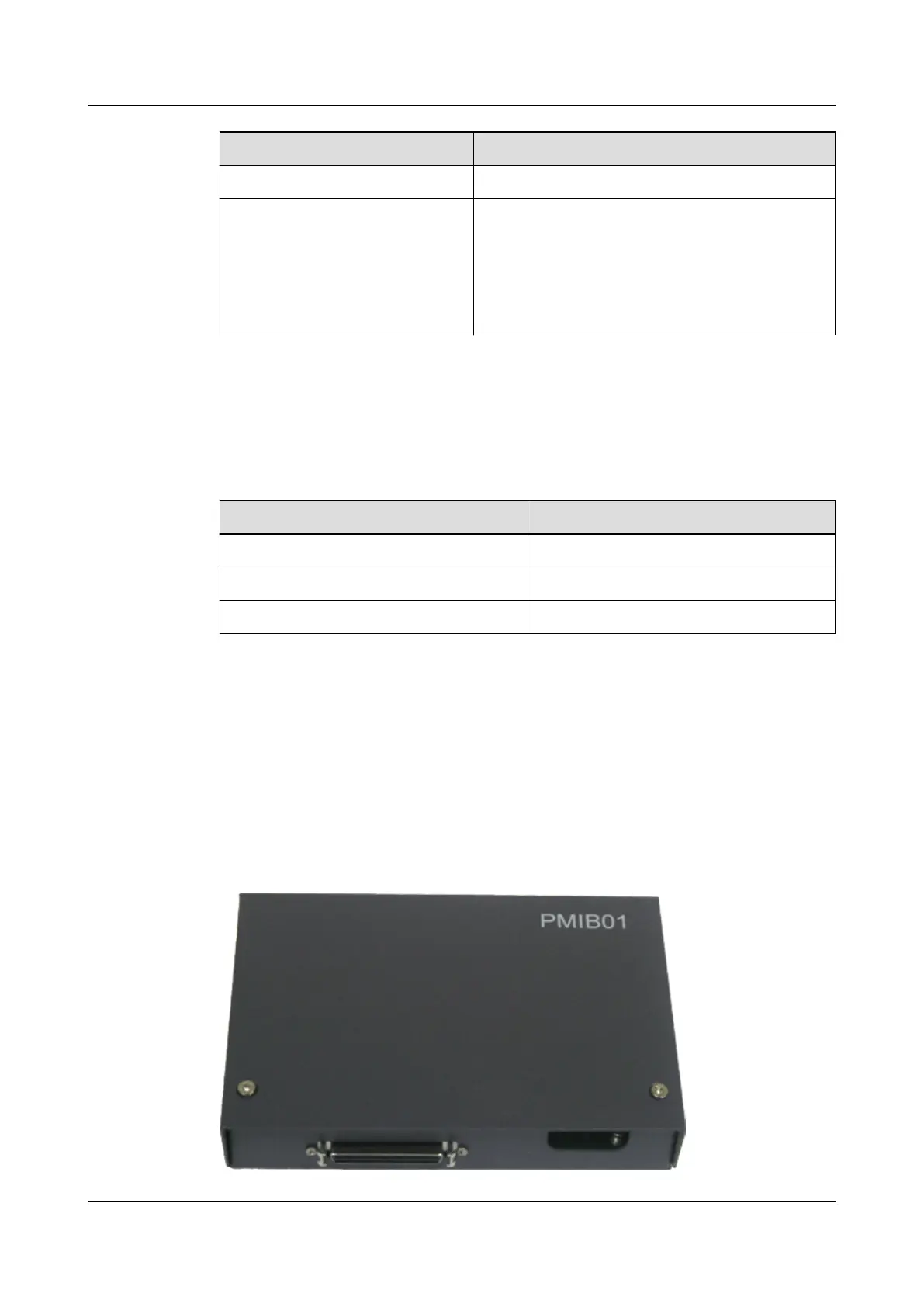

Figure 6-32 shows the PMIB01 sensor transfer box.
Figure 6-32 Front panel of the PMIB01 sensor transfer box
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
6 Electromechanical Device
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
946

Huawei SmartAX MA5608T Specifications

General

Dual Power Supply	Yes
Humidity	5% to 95% (non-condensing)
Uplink Slots	2
Maximum GPON Ports	16
Input Voltage Range	-38.4 V DC to -72 V DC
Device Type	OLT
Power Supply	-48 V DC
Operating Temperature	-25°C to +55°C
Storage Temperature	-40°C to 70°C
Switching Capacity	128 Gbps
Ports	GPON, XG-PON, 10GE
