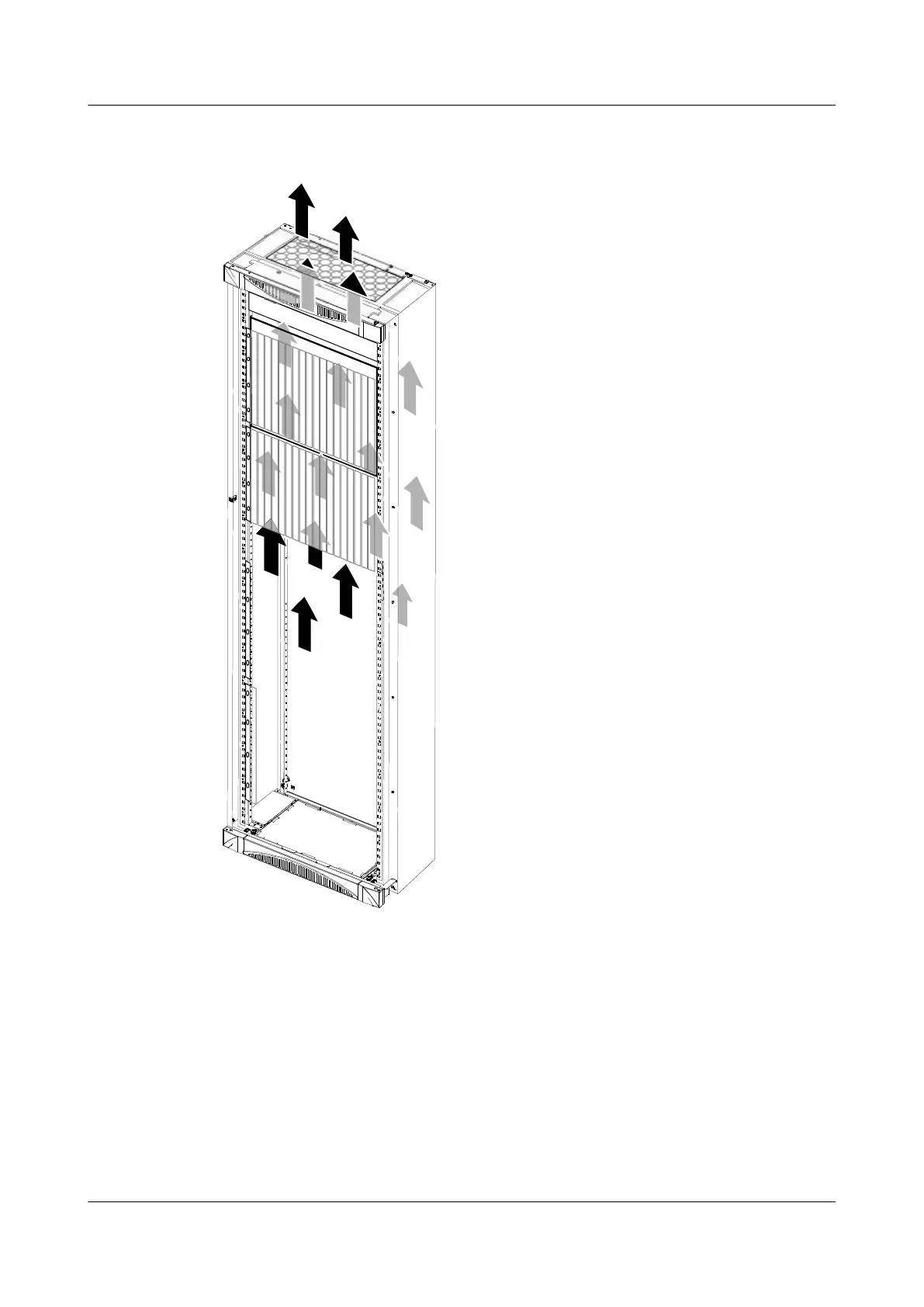

Figure 1-24 Ventilation of the N63E-22 cabinet installed with one service subrack and one
SPL subrack
1.2 N66E-18 Cabinet Description
The N66E-18 dual-standard cabinet complies with both the ETSI standard and the IEC
standard. This topic covers the appearance, configuration, cable holes, ESD jack, air filter,
external cable connections, ventilation, and specification of the N66E-18 dual-standard
cabinet.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
1 Cabinet
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
31
