Slot Type Slot Supported Board Remarks
Service board
slot
1-6,9-16
l Service board
SPU board
TDM service
processing board
Combo board
Voice board
ADSL2+ service
board
VDSL2 service
board
Vectoring
processing board
SHDSL service
board
P2P service board
GPON service
board
10G GPON
service board
l SPL board
ADSL SPL board
,
VDSL SPL board
l Extension board
Mixed configuration of service
boards is supported.
NOTE
l GPON boards are recommended
to be installed from left to right
and other boards are
recommended from right to left.
l A vectoring processing board
can be installed only in slots 9
and 10. When installed in slot 9,
the board processes the
vectoring services of slots 1-6.
When installed in slot 10, the
board processes the vectoring
services of slots 11-16.
2.3.4 IEC Fan Tray (FCBC)
A fan tray functions heat dissipation, monitoring, and fan speed adjustment, which ensures
that the device works at a stable temperature.
Appearance

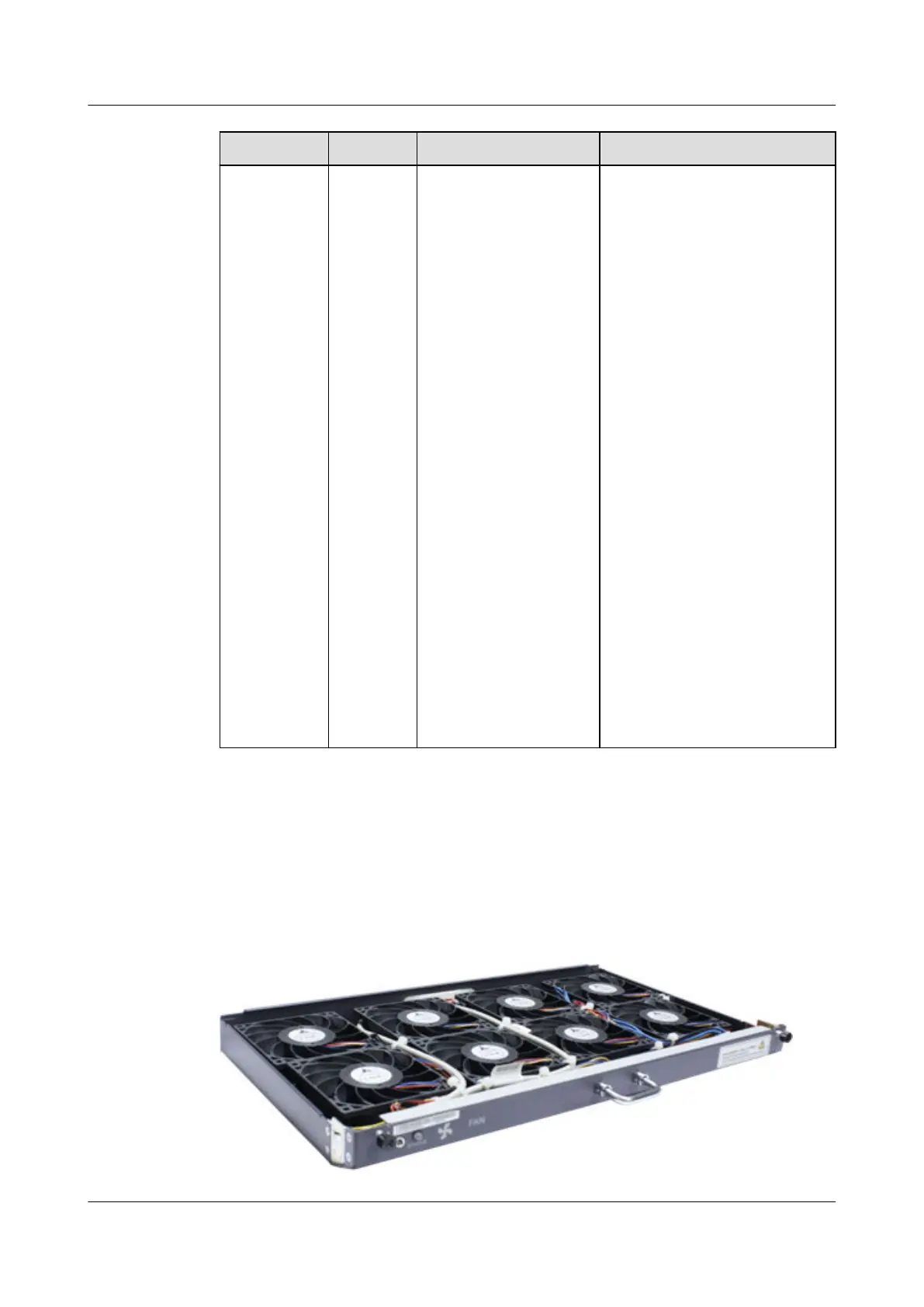

Eight fans are configured in the IEC fan tray (FCBC) of the MA5600T.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
2 Subrack and Chassis
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
93
