Huawei SmartAX MA5608T Hardware Description

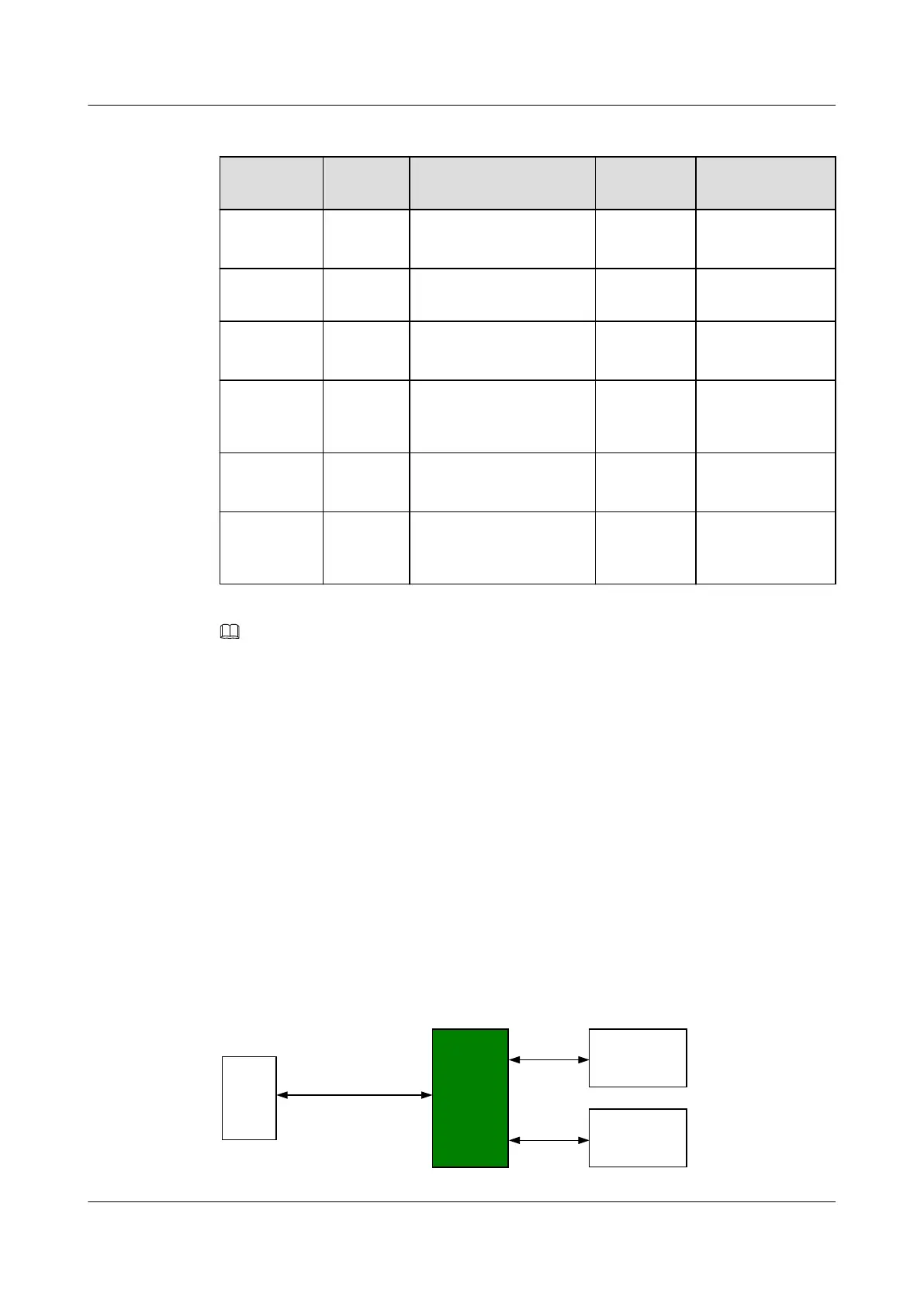

Table 3-173 Major differences between 64-channel ADSL SPL boards
Board Front
Panel
Port Impedance Applicable
Line
Applicable
Service Board
H801SPPF Common 600-ohm impedance POTS
l H802ADPD
l H805ADPD
H801SPPH
A
Embedded 2B1Q or 4B3T ISDN H802ADQD
H801SPPF1 Embedded 600-ohm impedance POTS
l H802ADPD
l H805ADPD
H801SPPLA Embedded Complex impedance
(ETSI TS 101 952 01 01
option A)
POTS
l H802ADPD
l H805ADPD
H801SPPLB Embedded BT complex impedance POTS
l H802ADPD
l H805ADPD
H801SPPLC Embedded Complex impedance
(ETSI TS 101 952 01 01
option B)
POTS
l H802ADPD
l H805ADPD
NOTE
l More information about the boards supported by the product version, please reference the 3.2
Mapping Between Boards and Software Versions.
l More information about the boards function supported by the version, please reference the related
board description topic.
3.25.2 H801SPLF Board Description
The H801SPLF is 32-port ADSL over POTS splitter board, It separates POTS signals from
ADSL2+ signals.
Functional Specifications
The H801SPLF supports the following function:
l Separating 32-channel POTS signals from ADSL2+ signals
l Supporting real impedance (600 ohms).
Figure 3-147 shows the external connections of the H801SPLF board.
Figure 3-147 External connections of the H801SPLF board
PSTN device
ATU-R SPLF
ADSL2+ over POTS
POTS
ADSL2+
32-channel
ADSL2+
service board
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
3 Board
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
767
