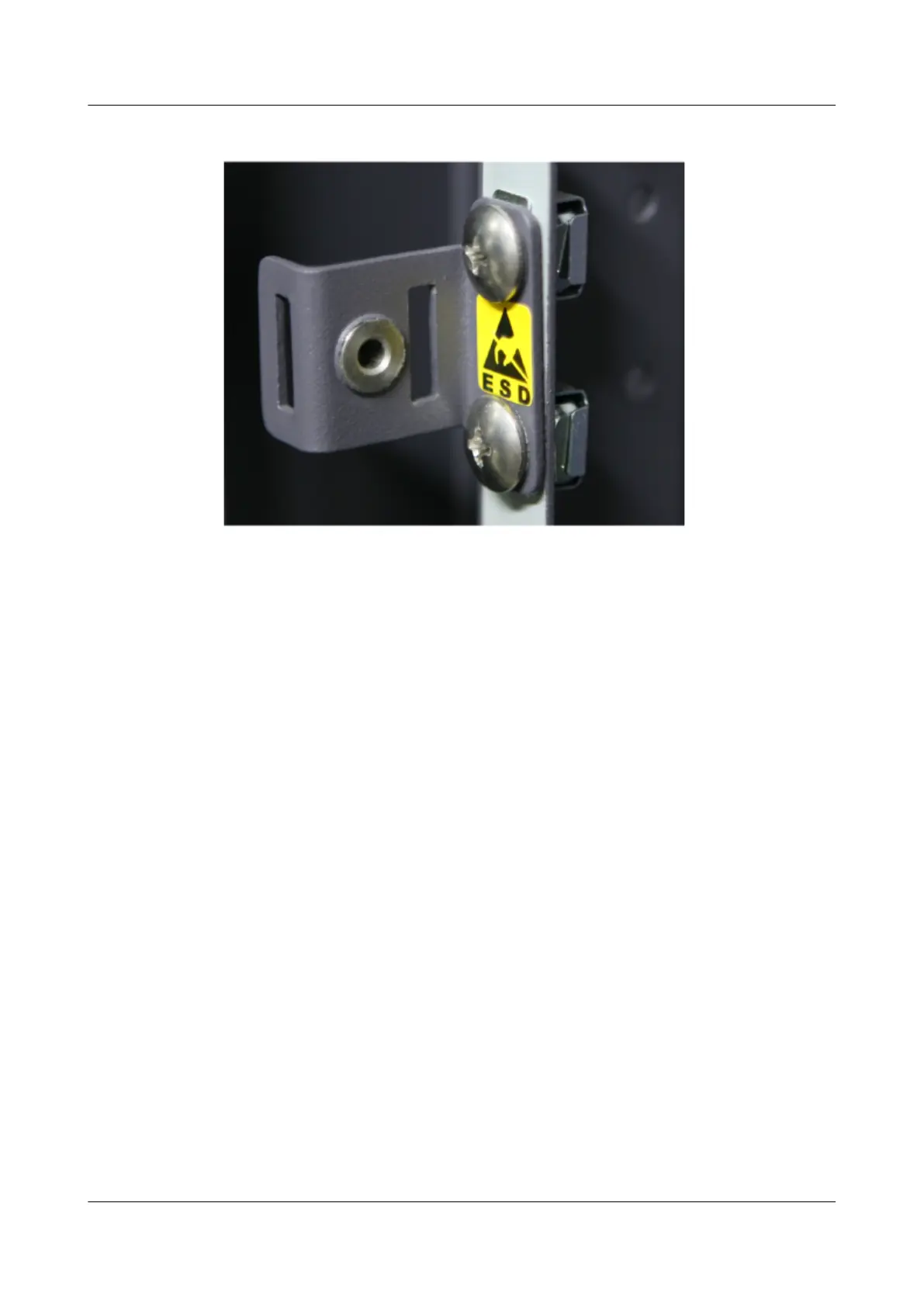

Figure 1-36 ESD jack of the N66E-18 dual-standard cabinet
1.2.7 Air Filter
The N66E-18 cabinet is installed with an air filter on the inner side of the doors and at the
bottom. This topic covers the appearance, dimensions, material, and maintenance of the air
filters.
Appearance and Dimensions
In the N66E-18 cabinet, the air filters are installed on the inner side of the doors and at the
bottom of the cabinet.
Figure 1-37 and Table 1-6 lists the materials and dimensions of the air filter on the inner side
of the doors of the N66E-18 cabinet.
