Huawei SmartAX MA5608T Hardware Description

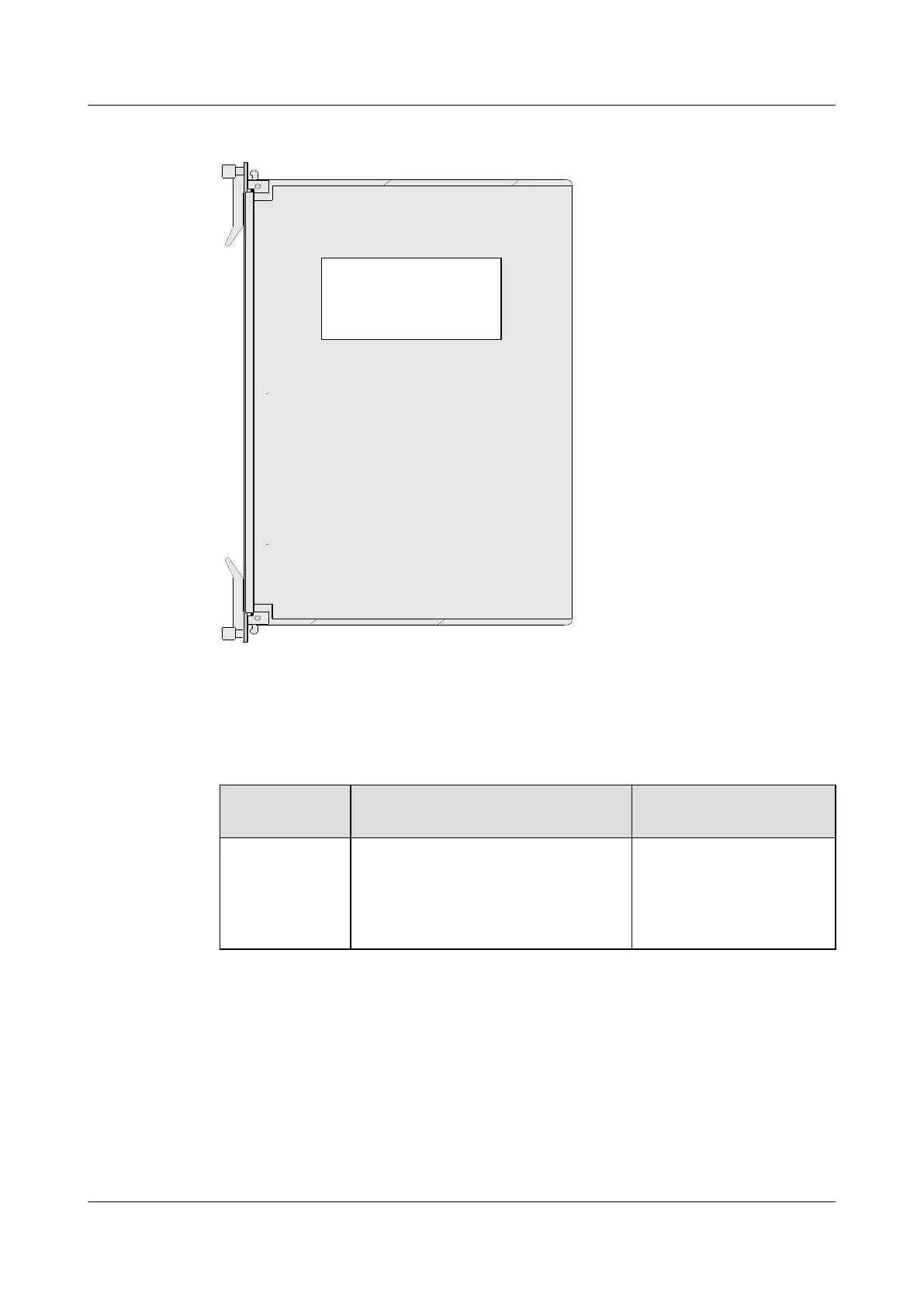

Figure 3-142 Position of the daughter board on the H802SHLB board
Daughter board
Table 3-168 describes the daughter board supported by the H802SHLB board.
Table 3-168 Daughter board supported by the H802SHLB board
Daughter
board
Function Remarks
H806SHUAB The functional module of logical
processing is integrated on the daughter
board to support the protocol process
and frame format conversion of the
service data stream.
Mandatory
3.24.4 H80ASHLM Board Description
The H80ASHLM board is a 16-port SHDSL.bis service board. It works with the SHDSL
transceiver unit-remote (STU-R) to provide 16-channels of SHDSL services.
Functional Specifications
Please refer to "SHDSL Service Board Comparison".
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
3 Board
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
754

Huawei SmartAX MA5608T Specifications

General

Dual Power Supply	Yes
Humidity	5% to 95% (non-condensing)
Uplink Slots	2
Maximum GPON Ports	16
Input Voltage Range	-38.4 V DC to -72 V DC
Device Type	OLT
Power Supply	-48 V DC
Operating Temperature	-25°C to +55°C
Storage Temperature	-40°C to 70°C
Switching Capacity	128 Gbps
Ports	GPON, XG-PON, 10GE
