Huawei SmartAX MA5608T Hardware Description

Pin Signa
l
Pin Signa
l
Port Pin Signa
l
Pin Signa
l
10 26 42 58
11 34 27 42 43 50 59 58
12 28 44 60
13 33 29 41 45 49 61 57
14 30 46 62
15 32 31 40 47 48 63 56
16 32 48 64
3.22.17 H80AVDPD Board Description
H80AVDPD is a 64-port VDSL2 over POTS service board. Using its VDSL2 port, the
H80AVDPD board works with the VDSL transceiver unit, remote terminal end (VTU-R) to
provide 64 channels of VDSL2 access service.
Feature and Specifications
Please refer to "64-Channel VDSL2 Service Board Comparison".
Technical Specifications
Please refer to "Power Consumption and Maximum Frame Size of Boards".
Working Principle

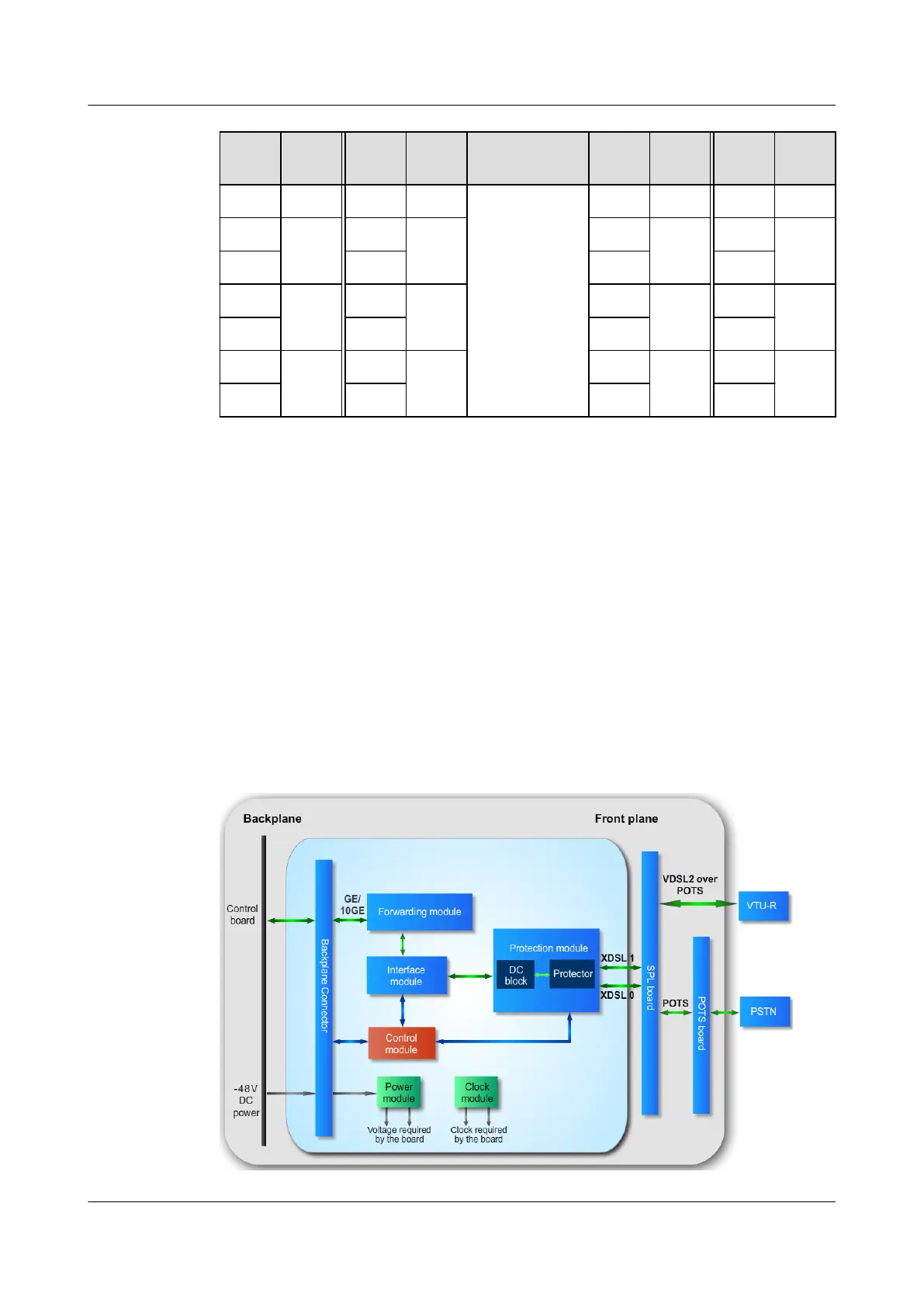

Figure 3-129 Working principle of the H80AVDPD board
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
3 Board
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
674

Huawei SmartAX MA5608T Specifications

General

Dual Power Supply	Yes
Humidity	5% to 95% (non-condensing)
Uplink Slots	2
Maximum GPON Ports	16
Input Voltage Range	-38.4 V DC to -72 V DC
Device Type	OLT
Power Supply	-48 V DC
Operating Temperature	-25°C to +55°C
Storage Temperature	-40°C to 70°C
Switching Capacity	128 Gbps
Ports	GPON, XG-PON, 10GE
