Huawei SmartAX MA5608T Hardware Description

3.10.2 H801PRTA Board Description
The H801PRTA board is a power transfer board. It leads in -48 V or -60 V DC power for
supplying power to the device.
Functional Specifications
The H801PRTA board supports the following functions:
l One -48 V or -60 V DC power input (input voltage range: -38.4 V to -72 V)
l Input undervoltage alarming using the indicator and related information reporting
l Fuse blow alarming using the indicator and related information reporting
Technical Specifications
Please refer to "Power Consumption and Maximum Frame Size of Boards".
Working Principle

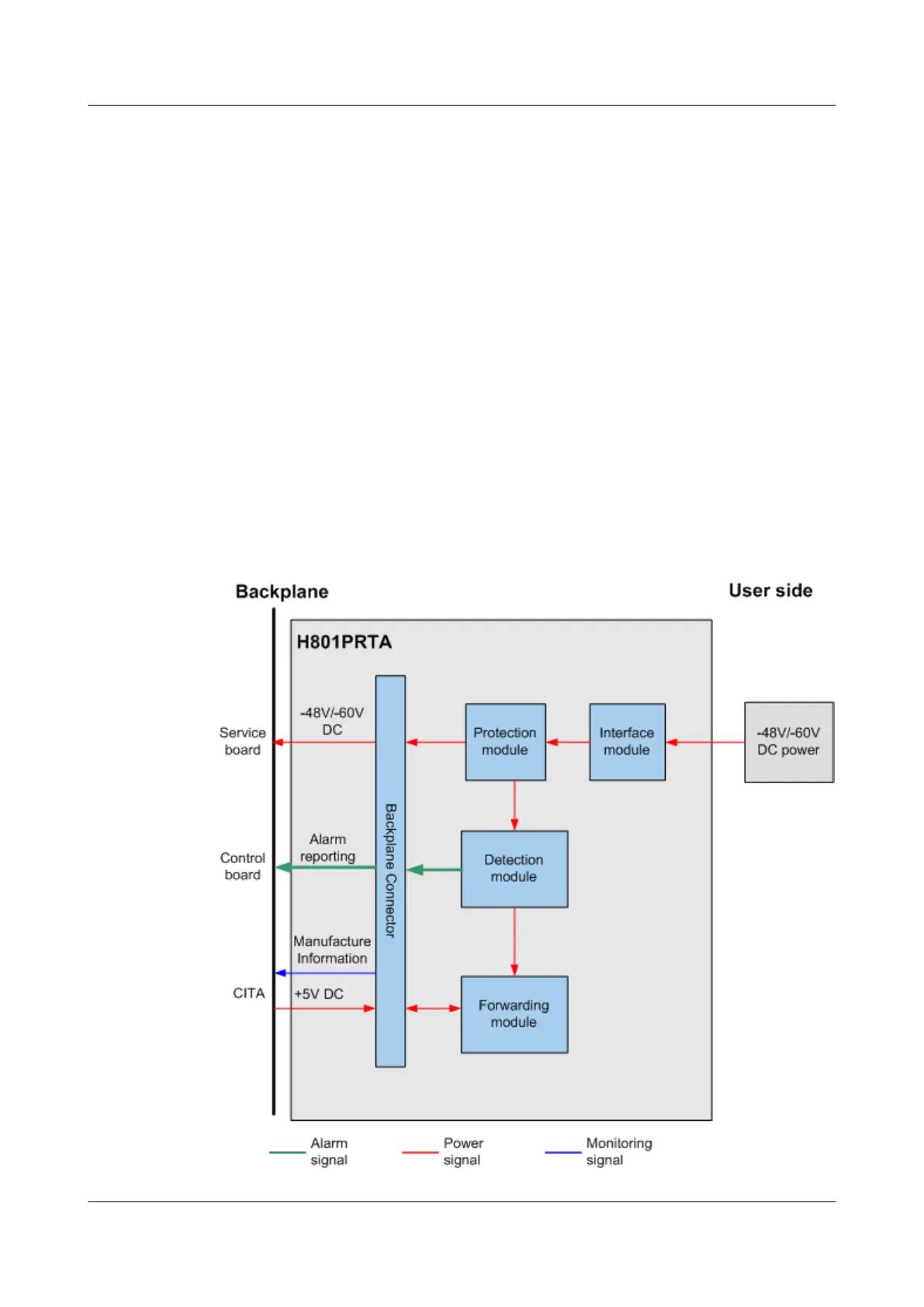

Figure 3-44 Working principle of the H801PRTA board
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
3 Board
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
311

Huawei SmartAX MA5608T Specifications

General

Dual Power Supply	Yes
Humidity	5% to 95% (non-condensing)
Uplink Slots	2
Maximum GPON Ports	16
Input Voltage Range	-38.4 V DC to -72 V DC
Device Type	OLT
Power Supply	-48 V DC
Operating Temperature	-25°C to +55°C
Storage Temperature	-40°C to 70°C
Switching Capacity	128 Gbps
Ports	GPON, XG-PON, 10GE
