Huawei SmartAX MA5608T Hardware Description

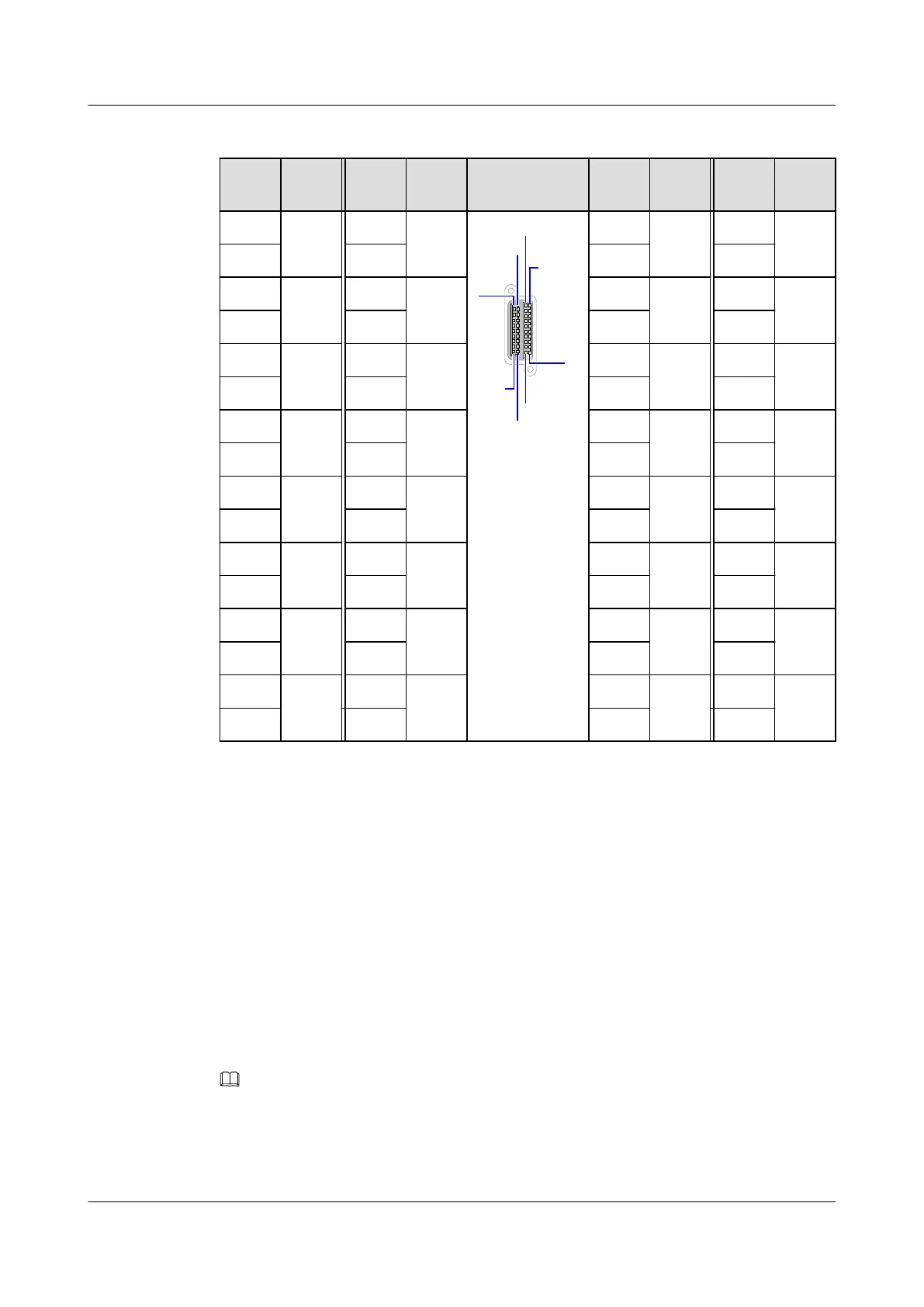

Table 3-200 Pin assignments of the xDSL1 port
Pin Signa
l
Pin Signa
l
Port Pin Signa
l
Pin Signa
l
1 39 17 47
64
48
32
16
1
17
33
49
33 55 49 63
2 18 34 50
3 38 19 46 35 54 51 62
4 20 36 52
5 37 21 45 37 53 53 61
6 22 38 54
7 36 23 44 39 52 55 60
8 24 40 56
9 35 25 43 41 51 57 59
10 26 42 58
11 34 27 42 43 50 59 58
12 28 44 60
13 33 29 41 45 49 61 57
14 30 46 62
15 32 31 40 47 48 63 56
16 32 48 64
3.26 VDSL2 SPL Board
The VDSL SPL board separates narrowband signals from VDSL signals.
3.26.1 Differences Between VDSL SPL Boards
VDSL SPL boards separate VDSL2 broadband signals from POTS/ISDN narrowband signals.
By access user quantity, VDSL SPL boards can be classified into 24-channel VDSL SPL
board and 48/64-channel VDSL SPL board.
l A 24-channel VDSL SPL board works with a 24-channel VDSL2 service board.
l A 48/64-channel VDSL SPL board works with a 48-channel VDSL2 service board.
NOTE
l The 24-channel VDSL SPL board is a low-density SPL board.
l The 48/64-channel VDSL SPL board is a high-density SPL board. Both the 24-channel VDSL SPL board
and 48/64-channel VDSL SPL board use the same intra-subrack interconnection cable, inter-subrack
interconnection cable, and external subscriber cable.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
3 Board
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
802

Huawei SmartAX MA5608T Specifications

General

Dual Power Supply	Yes
Humidity	5% to 95% (non-condensing)
Uplink Slots	2
Maximum GPON Ports	16
Input Voltage Range	-38.4 V DC to -72 V DC
Device Type	OLT
Power Supply	-48 V DC
Operating Temperature	-25°C to +55°C
Storage Temperature	-40°C to 70°C
Switching Capacity	128 Gbps
Ports	GPON, XG-PON, 10GE
