Huawei SmartAX MA5608T Hardware Description

1.2.1 Appearance
This topic provides the appearance of the N66E-18 dual-standard cabinet.
The N66E-18 cabinet is a dual-standard 600 mm cabinet of NC purple grey. One side
complies with IEC and the other side complies with ETSI.
The N66E-18 cabinet houses the MA5600T ETSI/IEC subrack and MA5603T chassis.
The N66E-18 cabinet consists of the rack (main frame), a front door, a rear door, and side
panels on the left and right sides.
Doors of the N66E-18 cabinet are removable and the top of the cabinet has the grounding
point. All N66E-18 cabinets have the same keys for the front and rear doors.

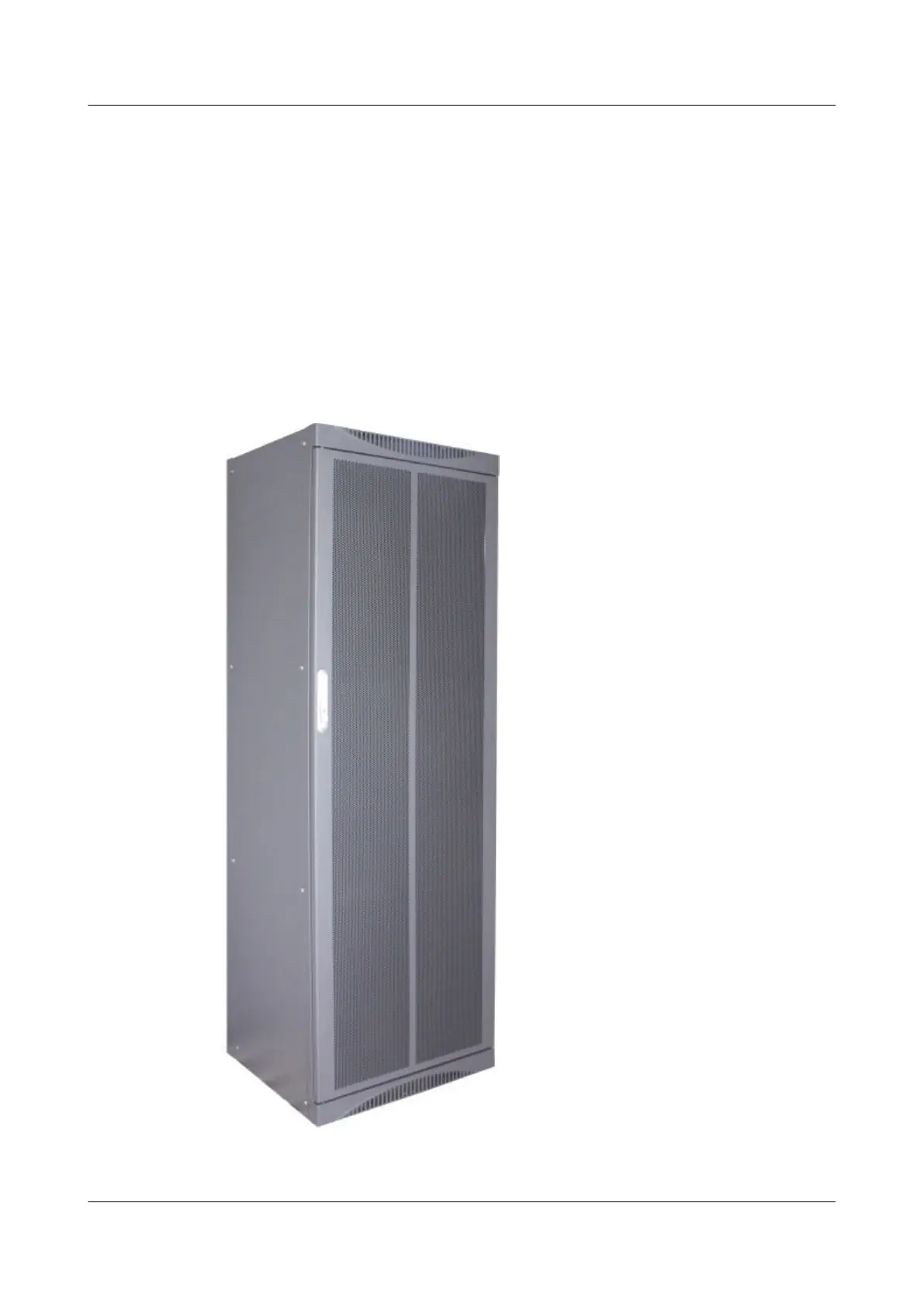

Figure 1-25 Appearance of the N66E-18 dual-standard cabinet
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
1 Cabinet
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
32

Huawei SmartAX MA5608T Specifications

General

Dual Power Supply	Yes
Humidity	5% to 95% (non-condensing)
Uplink Slots	2
Maximum GPON Ports	16
Input Voltage Range	-38.4 V DC to -72 V DC
Device Type	OLT
Power Supply	-48 V DC
Operating Temperature	-25°C to +55°C
Storage Temperature	-40°C to 70°C
Switching Capacity	128 Gbps
Ports	GPON, XG-PON, 10GE
