Huawei SmartAX MA5608T Hardware Description

6.2 C3-Type DC PDU
This topic provides the appearance and main performance specifications of the C3-type DC
PDU, and describes the power distribution principle of the PDU.
Appearance

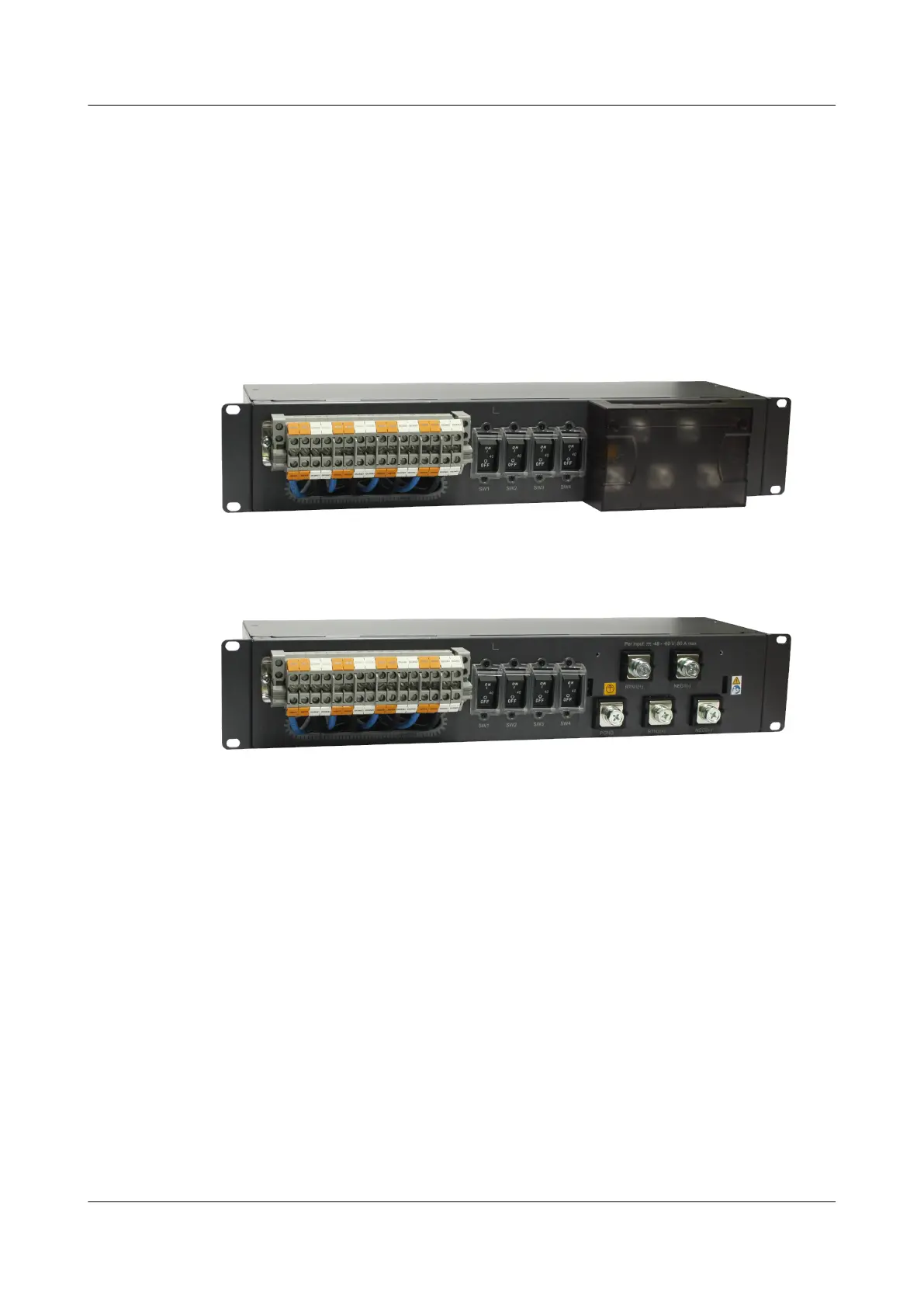

Figure 6-8 and Figure 6-9 show the appearance of the C3-type DC PDU.
Figure 6-8 Appearance of the C3-type DC PDU (with cover)
Figure 6-9 Appearance of the C3-type DC PDU (without cover)
Function
The C3-Type DC PDU provides the following functions:
l Short-circuit protection and overload protection
l The functions such as over-voltage protection, lightning proof, and filter are not
provided.
Power Distribution Principle
Figure 6-10 shows the power distribution principle of the C3-Type DC PDU.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
6 Electromechanical Device
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
919

Huawei SmartAX MA5608T Specifications

General

Dual Power Supply	Yes
Humidity	5% to 95% (non-condensing)
Uplink Slots	2
Maximum GPON Ports	16
Input Voltage Range	-38.4 V DC to -72 V DC
Device Type	OLT
Power Supply	-48 V DC
Operating Temperature	-25°C to +55°C
Storage Temperature	-40°C to 70°C
Switching Capacity	128 Gbps
Ports	GPON, XG-PON, 10GE
